CLPK1000
ELDON
4
Verfügbar Schiff am heute

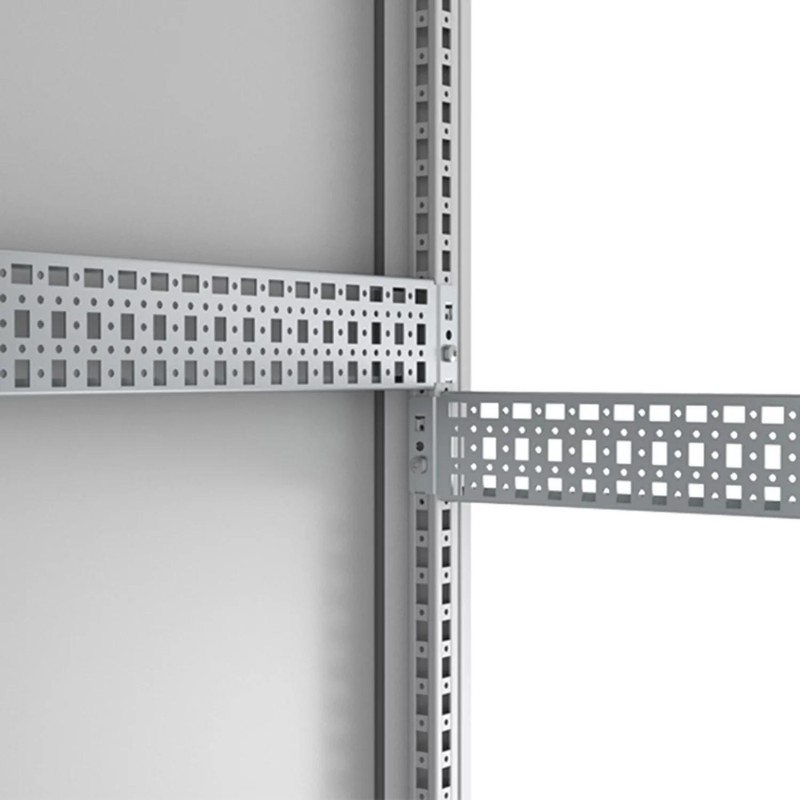

Click-in-Profil, 1000 CLPK1000
Profil schnell-Fixierung, 1000, verzinkt. Packung mit 4 Einheiten.
Additional accessories and electrical equipment can be mounted quickly and easily exactly where needed by using these click-in mounting profiles.
Schaltschranksysteme > Profil (Schaltschrank)
Schaltschränke Stahlblech
* Neues Produkt in der Originalverpackung mit allen Garantien und Zertifizierungen von ELDON
Danke für Ihr Interesse an unseren Produkten, wir hoffen die Lieferzeit ist ok.
Während der Bestellung können Sie den für Sie bestmöglichen Versand wählen: Express 24h, Standard 48h/72h, etc.
Beschreibung: | Universal profile for both depth and width fitting on the 25 mm DIN hole pattern of the enclosure's frame or in combination with the CLPF and VB profiles. The 75 mm wide profile is equipped with three rows of holes of which one is turned 90º. This makes it possible to mount the CLPF profiles in both directions. The CLPK can be secured by the use of self tapping screws. |
Material: | 1.5 mm zinc plated steel. |
Verpackungseinheit: | 4 profiles. |
Feature: | Click-in mounting profiles can be installed using the interior hole pattern of a floor standing enclosure. |
Advantage: | Click-in mounting profiles can be fixed in all directions extending the enclosures interior profiles to support enclosure accessories and electrical components. The profiles do not require additional brackets as they are fixed directly to the enclosure's frame. |
Benefit: | Accessories and electrical components can be installed exactly where required creating the best enclosure solution possible. The direct fixation reduces the mounting time required. |
Titel: | Größe: | Typ: |
---|---|---|
CLPK1000 CLPK1000 DE_CLPK1000.pdf | 144 Kbytes | |
Gesamtkatalog herunterladen |
