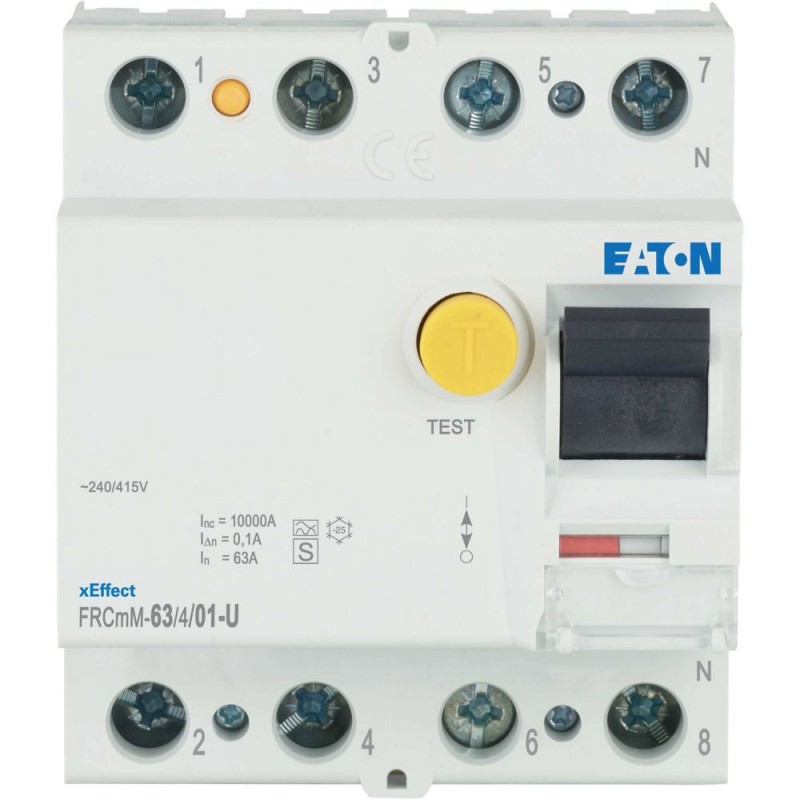

FRCMM-63/4/01-U 170461 EATON ELECTRIC Fi-schalter, 63A, 4p, 100mA, klasse Oder
FRCMM-63/4/01-U
170461
EATON-MOELLER
Fi-schalter, 63A, 4p, 100mA, klasse Oder
Int. Differential FRCMM, 63A, 4p, 100mA, Klasse U
FI-Schalter, 63A, 4p, 100mA, Typ U
Fehlerstromschutzschalter FRCmM, 4-polig, Bemessungsstrom In: 63 A, Bemessungskurzschlussfestigkeit Icn: 10 mit Vorsicherung kA, Bemessungsfehlerstrom IΔN: 0,1 A, Fehlerstromschutzschalter - frequenzumrichterfest
Schutzschaltgeräte, Sicherungen > Fehlerstrom-Schutzschalter
Modulare Schaltanlage - Tertiär und Differential
Neues Produkt in der Originalverpackung mit allen Garantien und Zertifizierungen von EATON-MOELLER
Bestseller
▲Mehr Infos
▲Allgemeine Spezifikation
Product Name
Eaton Moeller series xEffect - FRCmM Type AC, A, U, R RCCB
Catalog Number
170461
Product Length/Depth
80 mm
Product Height
76 mm
Product Width
70 mm
Product Weight
0.354 kg
Compliances
RoHS conform
Certifications
IEC/EN 61008
EAN
4015081669455
Model Code
FRCMM-63/4/01-U
Lieferprogramm
Application
Residual current circuit breaker - frequency converter-proof
Number of poles
Four-pole
Tripping time
Selective switch off
40 ms delayed - selective switch off
40 ms delayed - selective switch off
Amperage Rating
63 A
Rated short-circuit strength
10 kA with back-up fuse
Fault current rating
100 mA
Sensitivity type
Pulse-current sensitive
Impulse withstand current
5 kA (8/20 μs) surge-proof
Type
Technische Daten - elektrisch
Voltage rating (IEC/EN 60947-2)
240 V AC / 415 V AC
Rated operational voltage (Ue) - max
415 V
Rated insulation voltage (Ui)
440 V
Rated impulse withstand voltage (Uimp)
4 kV (1.2/50 µs)
4 kV
4 kV
Rated fault current - min
0.1 A
Rated fault current - max
0.1 A
Frequency rating
50 Hz / 60 Hz
50 Hz
50 Hz
Short-circuit rating
63 A (max. admissible back-up fuse)
Leakage current type
A
Rated residual making and breaking capacity
630 A
Admissible back-up fuse overload - max
63 A gG/gL
Rated short-time withstand current (Icw)
10 kA
Surge current capacity
5 kA
Test circuit range
196 V AC - 456 V AC
Pollution degree
2
Radiation resistance
Suitable for variable frequency drives (enhanced sensitivity)
Lifespan, electrical
4000 operations
Technische Daten - mechanisch
Frame
45 mm
Width in number of modular spacings
4
Built-in width (number of units)
70 mm (4 SU)
Built-in depth
70.5 mm
Mounting Method
Quick attachment with 2 latch positions for DIN-rail IEC/EN 60715
DIN rail
DIN rail
Mounting position
As required
Degree of protection
IP20
IP20, IP40 with suitable enclosure
IP20, IP40 with suitable enclosure
Status indication
White / blue
Terminals (top and bottom)
Twin-purpose terminals
Terminal capacity (solid wire)
1.5 mm² - 35 mm²
Connectable conductor cross section (solid-core) - min
1.5 mm²
Connectable conductor cross section (solid-core) - max
35 mm²
Terminal capacity (stranded cable)
16 mm² (2x)
Connectable conductor cross section (multi-wired) - min
1.5 mm²
Connectable conductor cross section (multi-wired) - max
16 mm²
Terminal capacity (cable)
M5 (with cross-recessed screw as defined in EN ISO 4757-Z2, PZ2)
Terminal protection
Finger and hand touch safe, DGUV VS3, EN 50274
Tightening torque
2 Nm - 2.4 Nm
Contact position indicator color
Red / green
Busbar material thickness
0.8 mm - 2 mm
Lifespan, mechanical
20000 operations
Permitted storage and transport temperature - min
-35 °C
Permitted storage and transport temperature - max
60 °C
Climatic proofing
25-55 °C / 90-95% relative humidity according to IEC 60068-2
Bauartnachweis nach IEC/EN 61439 - Technische Daten
Rated operational current for specified heat dissipation (In)
63 A
Heat dissipation per pole, current-dependent
2.625 W
Equipment heat dissipation, current-dependent
10.5 W
Static heat dissipation, non-current-dependent
0 W
Heat dissipation capacity
0 W
Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
75 °C
Bauartnachweis gemäß IEC/EN 61439
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
Zusätzliche Informationen
Features
Additional equipment possible
Residual current circuit breaker
Selective protection
Residual current circuit breaker
Selective protection
Fitted with:
Interlocking device
Special features
- Current test marks as per inscription
- Maximum operating temperature is 75 °C: Starting at 40 °C, the max. permissible continuous current decreases by 1.8% for every 1 °C
Used with
Residual current circuit breakers
FRCmM
Type U
FRCmM
Type U
| Merkmal | Wert |
|---|---|
| Polzahl (EF001391) | 4 |
| Bemessungsspannung (EF000228) | 415 V |
| Bemessungsstrom (EF000227) | 63 A |
| Bemessungsfehlerstrom (EF002358) | 0.1 A |
| Bemessungsisolationsspannung Ui (EF001366) | 440 V |
| Bemessungsstoßspannungsfestigkeit Uimp (EF011980) | 4 kV |
| Montageart (EF000003) | DIN-Schiene |
| Fehlerstrom-Typ (EF002560) | A |
| Selektiver-Typ (EF002561) | Ja |
| Kurzzeitverzögerter Typ (EF003604) | Nein |
| Kurzschlussfestigkeit (Icw) (EF002562) | 10 kA |
| Stoßstromfestigkeit (EF002564) | 5 kA |
| Mit Verriegelungsvorrichtung (EF007385) | Ja |
| Frequenz (EF005455) | 50/60 Hz |
| Zusatzeinrichtungen möglich (EF008148) | Ja |
| Schutzart (IP) (EF005474) | IP20 |
| Breite in Teilungseinheiten (EF002950) | 4 |
| Einbautiefe (EF000218) | 70.5 mm |
| Umgebungstemperatur während des Betriebs (EF007515) | -25 °C |
| Verschmutzungsgrad (EF002570) | 2 |
| Anschließbarer Leiterquerschnitt mehrdrähtig (EF007343) | 1.5 mm² |
| Anschließbarer Leiterquerschnitt eindrähtig (EF007337) | 1.5 mm² |
| Explosionsgeschützt (EF004663) | Nein |
