NX-TS2101
NX020050M
NXTS2101
OMRON
1
Disponibile Invio oggi

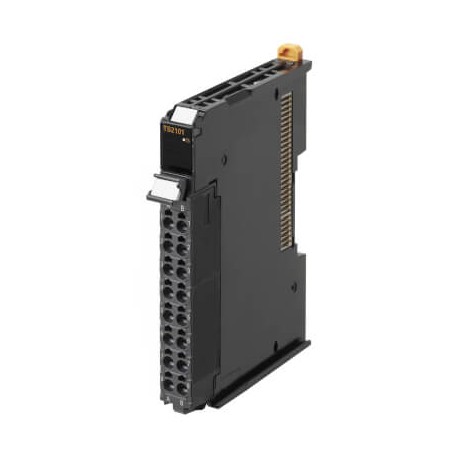

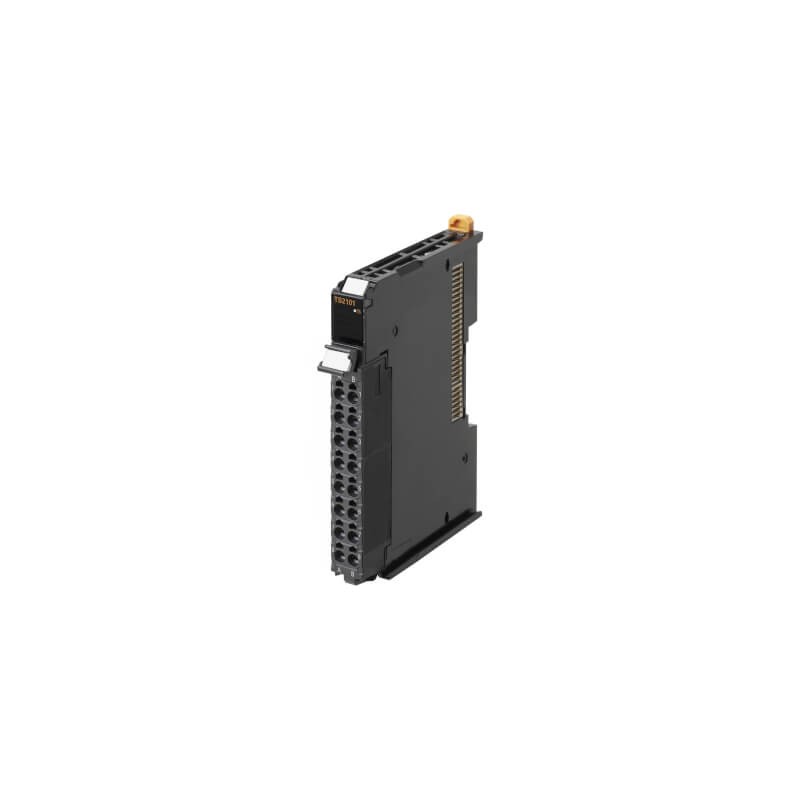

Unità NX - 2 Ingressi Termocoppia 0.1 ° C 200 ms
Unità NX - Termocoppia a 2 ingressi 0,1 ºC 200 ms
Serie NX, 2 Ingressi per Termocoppie B,E,J,K,L,N,R,S,T,U,WRe5-26,PLII; ris 0.1 °C; aggiornamento 200 ms/ch
Integrated Automation > NX-series
* Prodotto nuovo nel suo imballaggio d'origine con tutte le garanzie e certificazioni de OMRON
Grazie per il suo interesse nei nostri prodotti, speriamo che il tempo di consegna indicato sia conveniente per lei.
Durante l’elaborazione dell’ordine potrà selezionare il tipo di invio che meglio si adatti alle sue necessità: Aéreo Express 24Hrs, Terrestre Standard 48/72Hrs, etc.
I/O system | NX I/O Bus |
Type of module | Analog I/O |
Number of analog inputs | 2 |
Temperature input type | B, C (WRe5-26), E, J, K, L, N, P (PLII), R, S, T, U |
Linear analog input type | None |
Resolution of the analog inputs | 14 Bit |
Input circuit type | Differential |
Number of analog outputs | 0 |
Linear analog output type | None |
Conversion time | 250 ms/unit |
Signal processing | Free running |
IO link master | |
I/O connection type | Push-in |
Number of I/O connectors | 1 |
Detachable I/O connector | |
Suitable for safety functions | |
SIL according to IEC 61508 | None |
Degree of protection (IP) | IP20 |
Height | 100 mm |
Width | 12 mm |
Depth | 71 mm |
Titolo: | Dimensione: | Tipo: |
---|---|---|
NX-TS2101 NXTS2101 NX020050M ES_NX-TS2201.pdf | 5 Mbytes | |
NX-TS2101 NXTS2101 NX020050M nx_had_brochure_en.pdf | 2 Mbytes |
