> EATON - MOELLER>Sezionatori e interruttori a camme>KNB-RT-T0 043655 0001456534 ELECTRIC 043655 KNB-RT-T0
Prodotto precedente Prodotto successivo

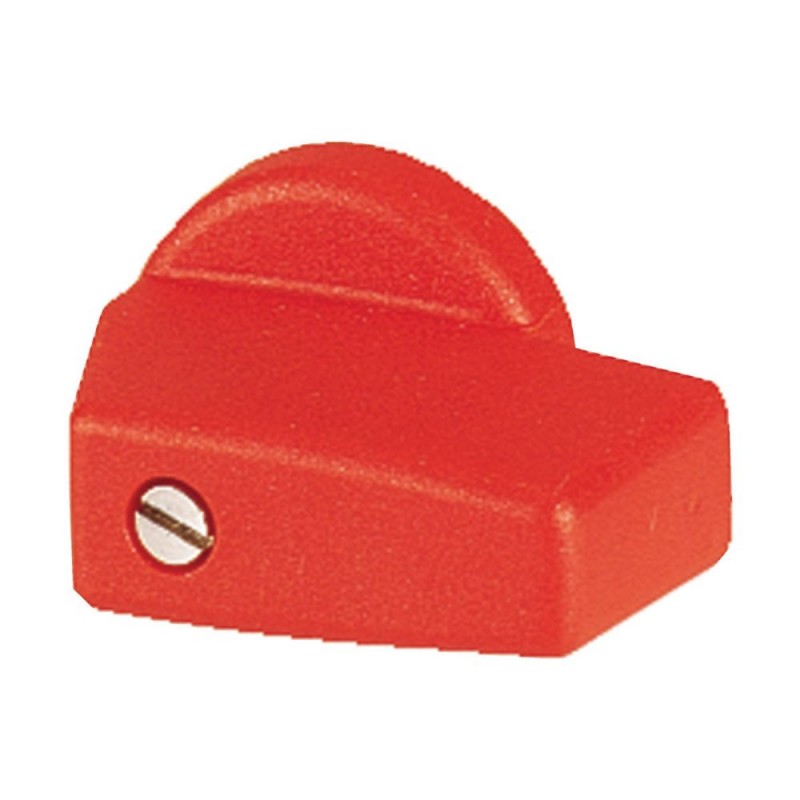

KNB-RT-T0 043655 0001456534 EATON ELECTRIC 043655 KNB-RT-T0 Visualizza ingrandito
Le immagini sono solo per fini illustrativi. Si prega di fare riferimento alla scheda tecnica p...

KNB-RT-T0 043655 0001456534 EATON ELECTRIC 043655 KNB-RT-T0

KNB-RT-T0

043655

0001456534

EATON-MOELLER

043655 KNB-RT-T0

Leva rossa per T0

Eaton Moeller® series Thumb-grip, red

Maggiori dettagli


apparecchi elettrici a bassa tensione > Maniglia per interruttore di potenza

Sezionatori e interruttori a camme

* Prodotto nuovo nel suo imballaggio d'origine con tutte le garanzie e certificazioni de EATON-MOELLER

Prezzo totale: $4.92
Prezzo unitario: $4.92

*Questo prezzo è per unità e mostra il valore netto ( escluse le imposte indirette se applicabile ).

Se il nostro prezzo non è il migliore, chiedici un preventivo Richiedi un preventivo

Dettagli

▲


General specifications

Product Name
Eaton Moeller® series Accessory Toggle
Catalog Number
043655
EAN
4015080436553
Product Length/Depth
40 mm
Product Height
26 mm
Product Width
28 mm
Product Weight
0.008 kg
Certifications
UL/CSA certification not required
Model Code
KNB-RT-T0

Specifiche del prodotto

Type
Rotary handle
10.10 Temperature rise
Not applicable.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
Color
Red
Ambient operating temperature - max
50 °C
Ambient operating temperature - min
-25 °C
Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Rated operational current for specified heat dissipation (In)
0 A
Static heat dissipation, non-current-dependent Pvs
0 W
Degree of protection
NEMA Other
Suitable for
Only for emergency switching off/emergency stop switches
Switch disconnector

Datasheet - PDF

▲
Titolo: Dimensione: Tipo:
PDF EATON SAFE SWITCHING EN.pdf 928 Kbytes
KNB-RT-T0 0001456534 043655 IT_043655.pdf 110 Kbytes KNB-RT-T0 0001456534 043655 IT_043655.pdf
