Visualizza ingrandito

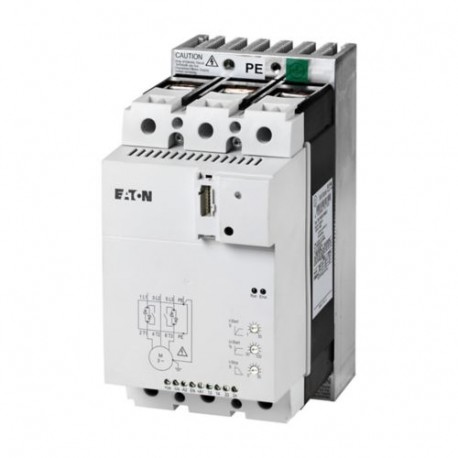

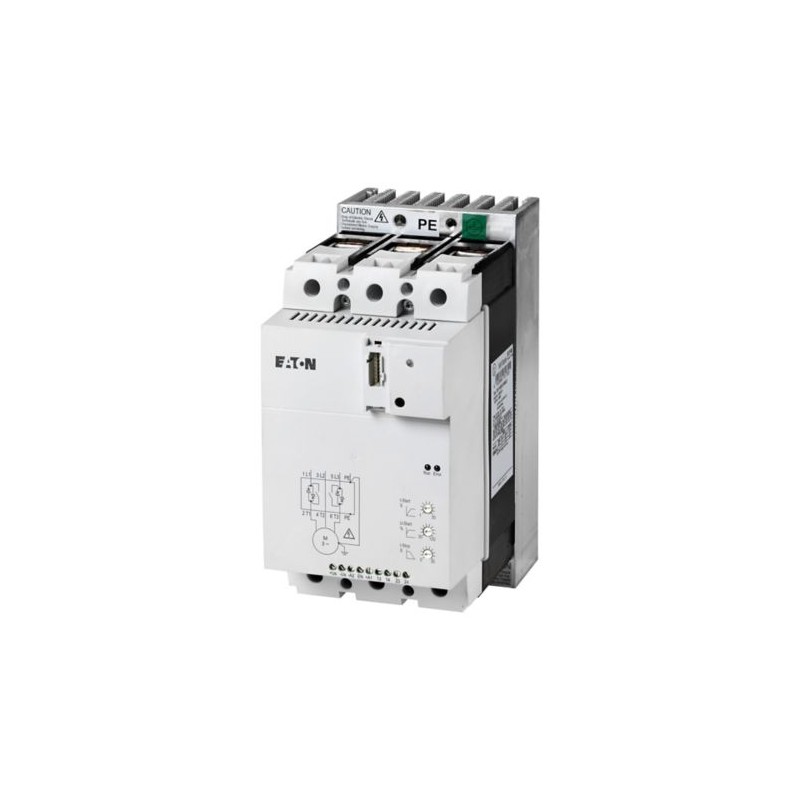

DS7-34DSX200N0-D 134959 EATON ELECTRIC Softstarter, 200 A, 200 480 V AC, 24 V DC, Grandezza: FS4, Interfacce..
DS7-34DSX200N0-D
134959
EATON-MOELLER
Softstarter, 200 A, 200 - 480 V AC, 24 V DC, Grandezza: FS4, Interfacce di comunicazione: SmartWire-DT
DS7 soft starter; 200A; 200-480 V AC; US=24 V AC/DC; Con SmartWire-DT
Eaton DS7 Soft starter, 200 A, 200 - 480 V AC, 24 V DC, Frame size: FS4, Communication Interfaces: SmartWire-DT
apparecchi elettrici a bassa tensione > starter progressivo
Soft Starter standard
* Prodotto nuovo nel suo imballaggio d'origine con tutte le garanzie e certificazioni de EATON-MOELLER
Dettagli
▲General specifications
Product Name
Eaton DS7 Soft starter
Catalog Number
134959
EAN
4015081317745
Product Length/Depth
195 mm
Product Height
215 mm
Product Width
108 mm
Product Weight
3.7 kg
Certifications
CE
CSA-C22.2 No 0-M91
CSA-C22.2 No 14-05
UL 508
UkrSEPRO
CSA22.2-14
UL
GB 14048.6
CSA
C-Tick
IEC/EN 60947-4-2
CSA-C22.2 No 0-M91
CSA-C22.2 No 14-05
UL 508
UkrSEPRO
CSA22.2-14
UL
GB 14048.6
CSA
C-Tick
IEC/EN 60947-4-2
Model Code
DS7-34DSX200N0-D
Modelli & caratteristiche
Fault memory
8 Faults
Fitted with:
Internal bypass contacts
Internal bypass
Internal bypass
Functions
Soft start function
Current limitation, with PKE
Potential isolation between power and control sections
Suppression of DC components for motors
Single direction
Min. ramp time 1 s - fast switching (semiconductor contactor)
Suppression of closing transients
Current limitation, with PKE
Potential isolation between power and control sections
Suppression of DC components for motors
Single direction
Min. ramp time 1 s - fast switching (semiconductor contactor)
Suppression of closing transients
Interfaces
SmartWire-DT (built-in)
Informazioni generali
Class
Other
Connection to SmartWire-DT
Yes
Degree of protection
NEMA 1
IP20
IP20
Frame size
FS4
Mains voltage - max
480 V
Mains voltage - min
200 V
Overvoltage category
II
Pollution degree
2
Product category
SmartWire-DT slave
Radio interference class
Class B (EN 55011)
Suitable for
Branch circuits, (UL/CSA)
Type
Soft starter for three-phase loads
Voltage type
DC
Condizioni meccaniche ambientali
Mounting position
Vertical
Shock resistance
8 g, 11 ms, Mechanical
Vibration resistance
2M2 to EN 60721-3-2
Condizioni ambientali e climatiche
Altitude
Above 1000 m with 1 % derating per 100 m
Max. 2000 m
Max. 2000 m
Ambient operating temperature - max
40 °C
Ambient operating temperature - min
-5 °C
Climatic proofing
Damp heat, constant, to IEC 60068-2-3
Damp heat, cyclic, to IEC 60068-2-30
Damp heat, cyclic, to IEC 60068-2-30
Parti conduttive principali
Overload cycle
AC-53a: 3 - 5: 75 - 10
Rated operational current (Ie) at AC-53
200 A
Rated operational voltage (Ue) - max
480 V
Rated operational voltage (Ue) - min
230 V
Short-circuit protection rating
NZMN2-M200, Type “1” coordination, Main conducting paths
3 x 170M5008, Type „2“ coordination (additional with the fuses for coordination type „1“), Main conducting paths
3 x 170M5008, Type „2“ coordination (additional with the fuses for coordination type „1“), Main conducting paths
Supply frequency
50/60 Hz, fLN, Main circuit
Voltage rating - max
480 V
Potenza nominale d'impiego (Motore)
Assigned motor power at 200/208 V, 60 Hz, 3-phase
60 HP
Assigned motor power at 220/230 V, 60 Hz, 3-phase
75 HP
Assigned motor power at 460/480 V, 60 Hz, 3-phase
150 HP
Rated operational power at 220/230 V, 50 Hz
55 kW
Rated operational power at 400 V, 50 Hz
110 kW
Sezioni di collegamento
Terminal capacity (copper band)
10 x 16 x 0.8 mm, Main cables
2 x 9 x 0.8 mm, Main cables
2 x 9 x 0.8 mm, Main cables
Terminal capacity (flexible with ferrule)
1 x (0.5 - 1.5) mm², Control circuit cables
2 x (0.5 - 0.75) mm², Control circuit cables
2 x (0.5 - 0.75) mm², Control circuit cables
Terminal capacity (solid)
2 x (4 - 70) mm², Main cables
1 x (0.5 - 2.5) mm², Control circuit cables
2 x (0.5 - 1.0) mm², Control circuit cables
1 x (4 - 185) mm², Main cables
1 x (0.5 - 2.5) mm², Control circuit cables
2 x (0.5 - 1.0) mm², Control circuit cables
1 x (4 - 185) mm², Main cables
Terminal capacity (solid/stranded AWG)
2 x (21 - 18), Control circuit cables
1 x (21 - 14), Control circuit cables
2 x (12 - 00), Main cables
1 x (12 - 350 kcmil), Main cables
1 x (21 - 14), Control circuit cables
2 x (12 - 00), Main cables
1 x (12 - 350 kcmil), Main cables
Terminal capacity (stranded)
1 x (0.5 - 1.5) mm², Control circuit cables
1 x (4 - 185) mm², Main cables
2 x (0.5 - 1.0) mm², Control circuit cables
2 x (4 - 70) mm², Main cables
1 x (4 - 185) mm², Main cables
2 x (0.5 - 1.0) mm², Control circuit cables
2 x (4 - 70) mm², Main cables
Screwdriver size
0.6 x 3.5 mm, Terminal screws, Control circuit cables
PZ2, 1 x 6 mm, Terminal screw, Standard screwdriver
PZ2, 1 x 6 mm, Terminal screw, Standard screwdriver
Tightening torque
0.4 Nm, Screw terminals, Control circuit cables
14 Nm (> 10 mm²)
5 Nm (≤ 10 mm²)
14 Nm (> 10 mm²)
5 Nm (≤ 10 mm²)
Circuito di comando
Current consumption
0,6 A/50 ms, Control circuit, Regulator supply at peak performance (close bypass) at 24 V DC
1.6 mA, Control circuit, Digital inputs, External 24 V
50 mA, Control circuit, Regulator supply
1.6 mA, Control circuit, Digital inputs, External 24 V
50 mA, Control circuit, Regulator supply
Drop-out time
350 ms, Control circuit, Digital Inputs, DC operated
Drop-out voltage
0 - 3 V, DC operated
Rated control supply voltage (Us) at AC, 50 Hz - min
0 V
Rated control supply voltage (Us) at AC, 50 Hz - min
0 V
Rated control supply voltage (Us) at AC, 60 Hz - max
0 V
Rated control supply voltage (Us) at AC, 60 Hz - min
0 V
Rated control supply voltage (Us) at DC - max
24 V
Rated control supply voltage (Us) at DC - min
24 V
Ingresso/uscita
Number of outputs
2 Relay Outputs (TOR, Ready)
Output voltage
250 V AC (relay outputs)
Protection
Finger and back-of-hand proof, Protection against direct contact
Rated control voltage (Uc)
24 V DC
24 V DC (-15 %/+10 %) or via SmartWire-DT
24 V DC (-15 %/+10 %) or via SmartWire-DT
Rated operational current (Ie) at AC-11
1 A
Funzione soft start
Application
Current limitation
(0 - 8) x Ie, Soft start function
Delay time
0 - 30 s, Soft start function, Ramp times
Ramp/run-up time
1 - 30 s
30 s
30 s
Start voltage
Min. 30 %, Soft start function, Start voltage = turn-off voltage
Max. 100 %, Soft start function, Start voltage = turn-off voltage
Max. 100 %, Soft start function, Start voltage = turn-off voltage
Verifica di progetto
Equipment heat dissipation, current-dependent Pvid
42 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Rated operational current for specified heat dissipation (In)
200 A
Static heat dissipation, non-current-dependent Pvs
42 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
Datasheet - PDF
▲| Titolo: | Dimensione: | Tipo: |
|---|---|---|
| PDF EATON EMS EN.pdf | 1 Mbytes |
|
| PDF EATON STARTING CONTROLLING MOTORS EN.pdf | 32 Mbytes |
|
