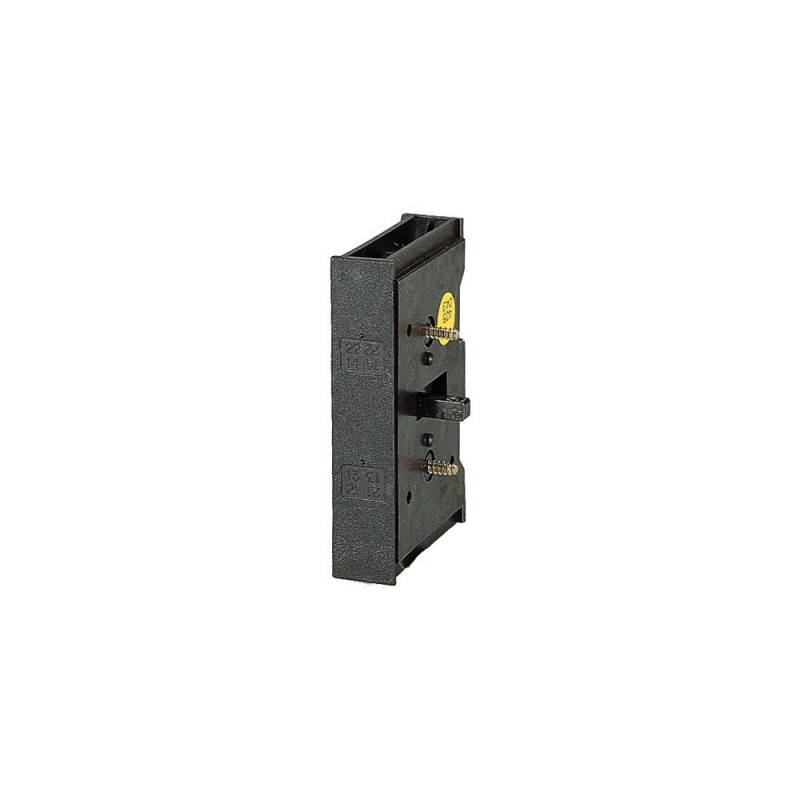

N-P3E 062432 0001456528 EATON ELECTRIC Conduttore di neutro, attivabile, per P3
N-P3E
062432
0001456528
EATON-MOELLER
Conduttore di neutro, attivabile, per P3
Modulo per conduttore di neutro; 4° poli; Per P3-.../E
Eaton Moeller® series Neutral conductor, switched neutral, for P3
apparecchi elettrici a bassa tensione > Accessori per la tecnologia degli interruttori a bassa tensione
Sezionatori e interruttori a camme
* Prodotto nuovo nel suo imballaggio d'origine con tutte le garanzie e certificazioni de EATON-MOELLER
Più venduti
▲Comprati di solito insieme
▲Dettagli
▲General specifications
Product Name
Eaton Moeller® series Accessory Neutral conductor
Catalog Number
062432
EAN
4015080624325
Product Length/Depth
50 mm
Product Height
50 mm
Product Width
50 mm
Product Weight
0.07 kg
Certifications
CE
CSA
CSA-C22.2 No. 94
CSA-C22.2 No. 14-05
UL 508
UL Category Control No.: NLRV
UL
CSA Class No.: 3211-05
IEC/EN 60947-3
UL File No.: E36332
CSA File No.: 012528
CSA
CSA-C22.2 No. 94
CSA-C22.2 No. 14-05
UL 508
UL Category Control No.: NLRV
UL
CSA Class No.: 3211-05
IEC/EN 60947-3
UL File No.: E36332
CSA File No.: 012528
Model Code
N-P3E
Specifiche del prodotto
Type
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
Accessory/spare part type
Neutral terminal
Ambient operating temperature - max
50 °C
Ambient operating temperature - min
-25 °C
Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
7.5 W
Rated operational current (Ie) - max
90 A
Rated operational current for specified heat dissipation (In)
100 A
Static heat dissipation, non-current-dependent Pvs
0 W
Stripping length (main cable)
13.5 mm
Mounting position
Left side
Right side
Right side
Datasheet - PDF
▲| Titolo: | Dimensione: | Tipo: |
|---|---|---|
| PDF EATON SAFE SWITCHING EN.pdf | 928 Kbytes |
|
| PDF CATALOGUE EATON EN.pdf | 51 Mbytes |
|
| N-P3E 0001456528 062432 ES_029383.pdf | 2 Mbytes |
|
