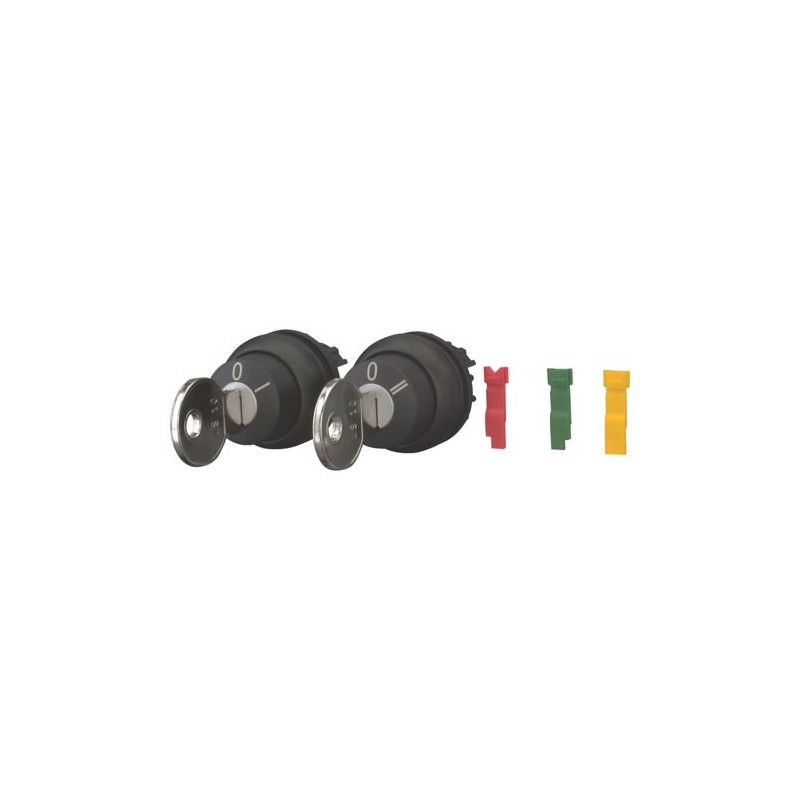

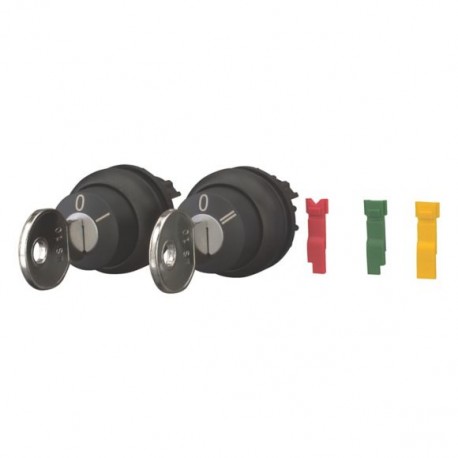

M22S-WRS*-MS*-* 262522 EATON ELECTRIC Pulsante a chiave, 2 posizioni, permanente, versione secondo indicazio.. Visualizza ingrandito
Le immagini sono solo per fini illustrativi. Si prega di fare riferimento alla scheda tecnica p...

M22S-WRS*-MS*-* 262522 EATON ELECTRIC Pulsante a chiave, 2 posizioni, permanente, versione secondo indicazio..

M22S-WRS*-MS*-*

262522

-

EATON-MOELLER

Pulsante a chiave, 2 posizioni, permanente, versione secondo indicazione

Selettore di chiavi; Personalizzabile; 2 posizioni; Chiave selezionabile; Anello nero

Eaton Moeller® series M22 Key-operated actuator, maintained, Select from 2 or 3 positions, MS1–MS20: Key withdrawable: Selectable, Bezel: black

Maggiori dettagli


apparecchi elettrici a bassa tensione > Switch da quadro

Ausili di controllo e segnalazione

* Prodotto nuovo nel suo imballaggio d'origine con tutte le garanzie e certificazioni de EATON-MOELLER

Prezzo totale: $48.64
Prezzo unitario: $48.64

Quantità Prezzo
1+$48.64
2+$45.89
3+$41.83
4+$39.53
6+$37.30
*Questo prezzo è per unità e mostra il valore netto ( escluse le imposte indirette se applicabile ).

Se il nostro prezzo non è il migliore, chiedici un preventivo Richiedi un preventivo

Dettagli

▲


General specifications

Product Name
Eaton Moeller® series M22 Key-operated actuator
Catalog Number
262522
Product Length/Depth
70 mm
Product Height
30 mm
Product Width
30 mm
Product Weight
0.031 kg
Certifications
DNV
GL
IEC/EN 60947
LR
VDE 0660
Model Code
M22S-WRS*-MS*-*

Features & Functions

Bezel color
Black
Bezel material
Plastic
Design
Classical
Key operated
Fitted with:
Front ring
Key code
Selectable

General

Accessories
1 key included with supplied equipment.
Degree of protection
NEMA 4X
Degree of protection (front side)
IP66
Lifespan, mechanical
100,000 Operations
Opening diameter
22.5 mm
Operating frequency
100 Operations/h
Operating torque
0.5 Nm
Product category
RMQ-Titan
Type
Key-operated button

Ambient conditions, mechanical

Mounting position
As required

Climatic environmental conditions

Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
70 °C
Climatic proofing
Damp heat, constant, to IEC 60068-2-78
Damp heat, cyclic, to IEC 60068-2-30

Communication

Connection to SmartWire-DT
No
Yes
With SWD-RMQ connections

Actuator

Actuator color
Black
Actuator function
Switching function latching
Maintained
Key withdrawable in position 1
Actuator type
Key
Number of switch positions
2
3

Contacts

Force for positive opening - min
0 N

Design verification

Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Rated operational current for specified heat dissipation (In)
0 A
Static heat dissipation, non-current-dependent Pvs
0 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Please enquire
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
Not applicable.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.

Datasheet - PDF

▲
Titolo: Dimensione: Tipo:
PDF EATON COMMAND INDICATION EN.pdf 23 Mbytes
M22S-WRS*-MS*-* - 262522 IT_262522.pdf 114 Kbytes M22S-WRS*-MS*-* - 262522 IT_262522.pdf
