LZME1-4-A25-I
111829
EATON-MOELLER
1

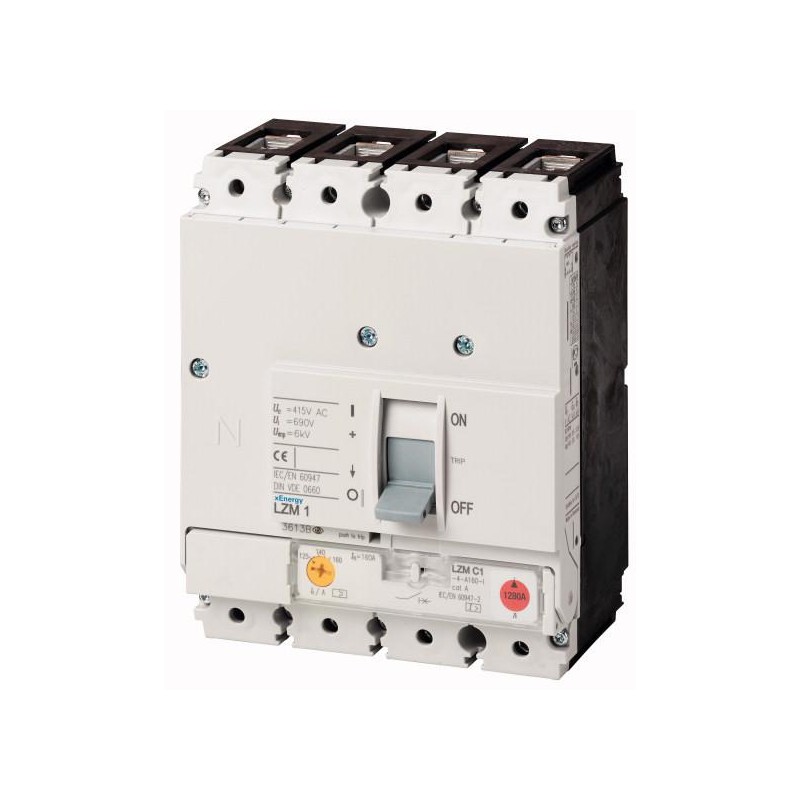

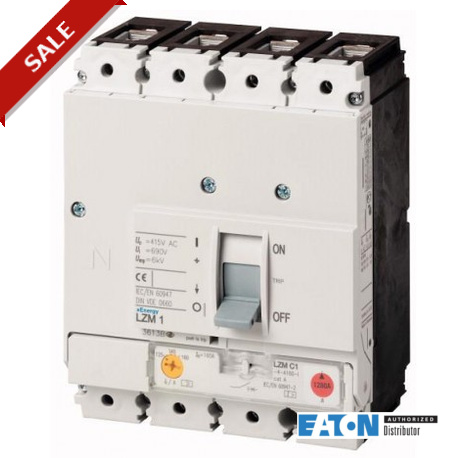

Interruttori automatici modulari LZM
* Prodotto nuovo nel suo imballaggio d'origine con tutte le garanzie e certificazioni de EATON-MOELLER
Grazie per il suo interesse nei nostri prodotti, speriamo che il tempo di consegna indicato sia conveniente per lei.
Durante l’elaborazione dell’ordine potrà selezionare il tipo di invio che meglio si adatti alle sue necessità: Aéreo Express 24Hrs, Terrestre Standard 48/72Hrs, etc.
Rated permanent current Iu | A | 25 | |
Rated voltage | V | 690 - 690 | |
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz | kA | 18 | |
Overload release current setting | A | 20 - 25 | |
Adjustment range short-term delayed short-circuit release | A | 0 - 0 | |
Adjustment range undelayed short-circuit release | A | 350 - 350 | |
Integrated earth fault protection | No | ||
Type of electrical connection of main circuit | Frame clamp | ||
Device construction | Built-in device fixed built-in technique | ||
Suitable for DIN rail (top hat rail) mounting | No | ||
DIN rail (top hat rail) mounting optional | Yes | ||
Number of auxiliary contacts as normally closed contact | 0 | ||
Number of auxiliary contacts as normally open contact | 0 | ||
Number of auxiliary contacts as change-over contact | 0 | ||
Switched-off indicator available | No | ||
With under voltage release | No | ||
Number of poles | 4 | ||
Position of connection for main current circuit | Front side | ||
Type of control element | Rocker lever | ||
Complete device with protection unit | Yes | ||
Motor drive integrated | No | ||
Motor drive optional | No | ||
Degree of protection (IP) | IP20 |
Titolo: | Dimensione: | Tipo: |
---|---|---|
PDF EATON PRODUCT CATALOGUE LZM.pdf | 5 Mbytes | |
Interruttore automatico di potenza, 4p, 25A - EATON - LZME1-4-A25-I - 111829 | 151 Kbytes |
