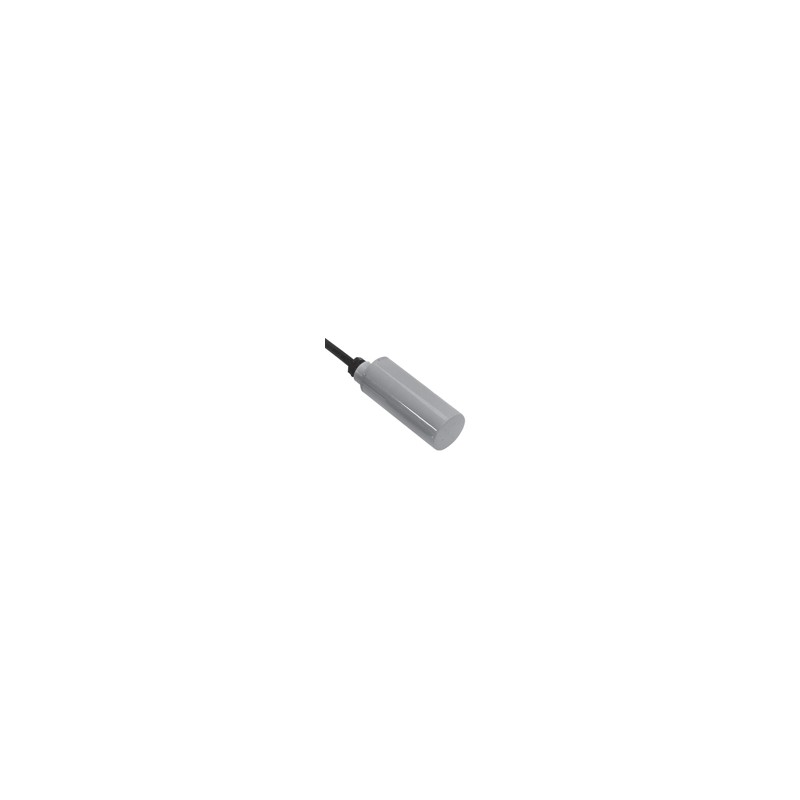

Proximity Sensors Capacitive Thermoplastic Polyester Housing Type DR E, Ø 11, Ø 22, Ø 30
• Thermoplastic polyester housing, cylindrical
• Diameter: Ø 11, Ø 22, Ø 30
• Sensing distance: 3 to 10 mm
• Power supply: 10 to 27 VDC
90 to 240 VAC
• LED-indication for output ON (AC types)
• 2 m cable
Product Description
Ordering Key
DR 3 E
Capacitive proximity switch in cylindrical polyester hous- ing, Ø 11-30. Transistor NPN
and thyristor outputs. Deli- vered with 2 m cable.
Type: Capacitive proximity switch
Output type
Type Selection
Housing Rated Ordering no. Ordering no. Ordering no. diameter operating Transistor NPN SCR SCR
dist. (Sn) 3) Make switching Make switching Break switching
Ø 11 mm 3 mm 1) DR 3 E
Ø 22 mm 5 mm 2) DR 6 E
Ø 30 mm 10 mm 1) DR 10 T DR 10 TI
1) For non-flush mounting 2) For flush mounting 3) Object: Grounded steel plate
Specifications
Transistor NPN SCR
Rated operational volt. (Ue) 12 to 24 VDC 100 to 220 VAC, 50 to 60 Hz
(UB) 10 to 27 VDC (ripple included) 90 to 240 VAC, 50 to 60 Hz
Ripple £ 10%
Rated operational current (Ie)
Continuous £ 200 mA £ 150 mA
Short-time £ 200 mA £ 1 A, max. 20 ms, 1 Hz
No-load supply current (Io) DR 3 E: £ 5 mA DR 6 E: £ 9 mA
Minimum load current 20 mA
OFF-state current (Ir) Typ. 7 mA, max. 10 mA Voltage drop (Ud) £ 2 V at max. load (DR 6 E: £ 0.25 V) £ 11 VAC at max. load Protection None None
Frequency of operating
cycles (f) 100 Hz 5 Hz
Indication for output ON None LED, yellow
Rated operating dist. (Sn) DR 3 E 3 mm 10 mm
DR 6 E 5 mm Reference object: Grounded steel plate.
Reference object: Grounded steel plate. Other objects: Refer to "Reduction Factors", Other objects: Refer to "Reduction Factors", Technical information.
Technical information.
Hysteresis (H)
(Differential travel) 1 to 30% of sensing distance 1 to 40% of sensing distance
Specifications are subject to change without notice (25.06.99) 1
