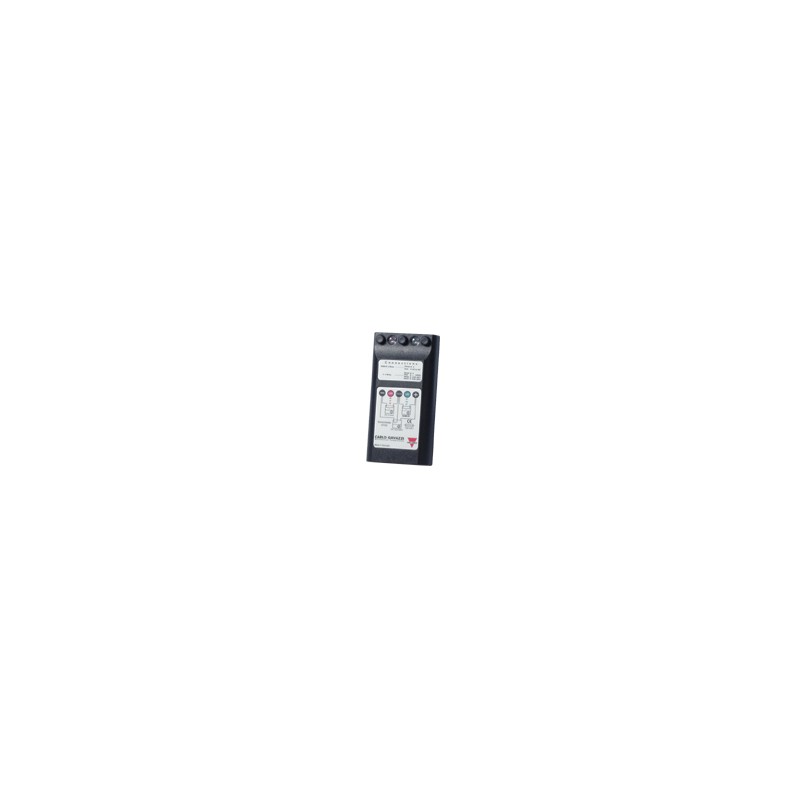

Accessories Sensor Tester Type ST-03
• NAMUR (EN 50 227)
• 2-wire DC
• 3-wire DC
• 4-wire DC
Product Description
Ordering Key
ST-03
The fastest way to verify the main function on your sen- sor. The tester can be used for: Namur (EN 50 227), 2- wire DC, 3-wire DC and 4- wire DC. Connect your sen- sor to the terminals on the sensortester. The sensor- type (NPN or PNP) and out- put status NO (normally open) and (normally closed) is shown on the correspon- dent LED. Red LED for NPN and green for PNP. A buzzer will tell you if the output is active.
Fault function on the tester can be: Wrong sensor (e.g. AC sensors), defect sensor. The wire is not connected correct. The fuse in the test- er is burned. The batteri is flat.
For connection se the wiring diagram on the sensor test- er. To replace the batteries (2x9V, e.g. PP3) or fuse (100mA f) remove the screw on the backside of the sen- sor tester.
Type
Type Selection
Ordering number
ST-03
Wiring Diagram
LED
LED
Terminals
GND
red
NPN
SGN
green V+ PNP
Sensortype GND SGN V+
NAMUR - BU(2) BN(1) DC 2-wire NO BU(4) BN(1) - DC 2-wire NC BU(2) BN(1) -
DC 2-wire NAMUR
DC 3-wire NO BU(3) BK(4) BN(1) DC 3-wire NC BU(3) BK(2) BN(1) DC 4-wire NO BU(3) BK(4) BN(1) DC 4-wire NC BU(3) WH(2) BN(1)
(.) refers to the pin numbers.
Specifications are subject to change without notice (25.06.99) 1
