MSIS600
ELDON
1
Disponible Envío el hoy

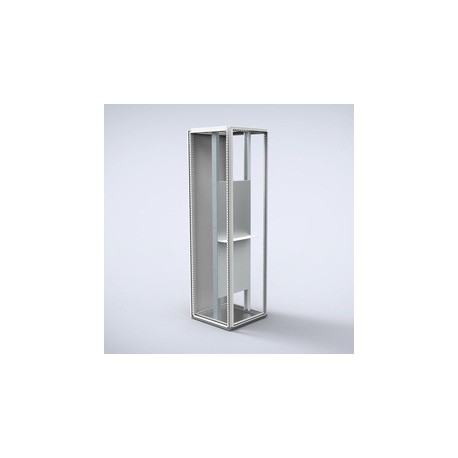

Panel horz. segreg. int, 600 MSIS600
Panel horz. segreg. int, 600, separación entre perfiles y paneles frontales

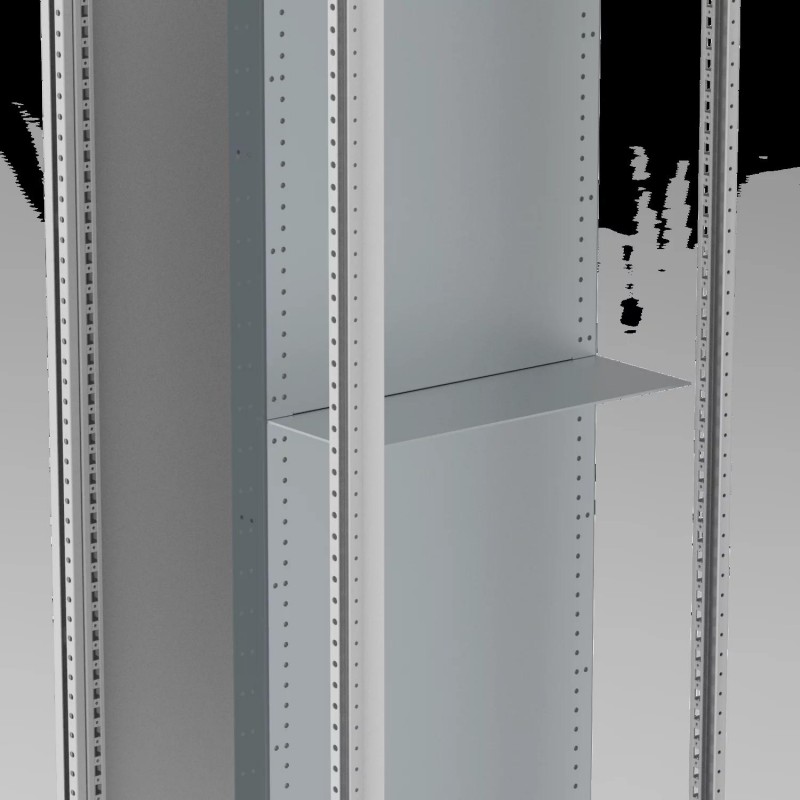

This polycarbonate horizontal separation plate, MSIS, is available off the shelf and pre-sized. The plate should be used when subsections need to be segregated. It is placed between a mounting plate and a front panel that is placed inside the enclosure. No screws are needed, which makes mounting easy. The fix section can then comply to up to form 4 segregation according to IEC 61439.
Sistemas de distribución eléctrica (incluidos cuadros de control) > Partición para instalación de medidor / distribuidor
Potencia y distribución
* Producto nuevo en su embalaje original con todas las garantías y certificaciones de ELDON
Gracias por su interés en nuestros productos, esperamos que el plazo indicado sea conveniente para usted.
Durante la tramitación del pedido podrá seleccionar el tipo de envío que mejor se adapte a sus necesidades: Aéreo Express 24Hrs, Terrestre Standard 48/72Hrs, etc.
Descripción: | Pre-sized horizontal separation plates between the mounting level and the front covers. Slides easily into place and let us to get Form 4 compartments for MCB's and MCCB's. No screws need. |
Material: | 3 mm reinforced ploycarbonate. |
Suministro: | 1 piece. |
Feature: | Polycarbonate horizontal separation plates, pre-sized to cover the space between the rear of subsections and front panels, in order to create compartments. |
Advantage: | The standard accessory is available off the shelf, and is pre-cut ready to be mounted into 600 or 800 mm wide enclosures. The plates can easily be mounted and do not require screws. |
Benefit: | Customer's required labour time is reduced as the plate is pre-cut and does not require screws for fixation, which in turn reduces their labour cost. The fix section can comply up to form 4 segregation according to IEC 61439, which is a necessary requirement for particular projects. |
Comment: | The mounting plate (MSMPN) is to be fixed directly in to the fix system vertical profiles (MSFP). Partial panels (MSMBP or MSMPCP) are required in order to complete the fixed compartment. |
Título: | Tamaño: | Tipo: |
---|---|---|
MSIS600 MSIS600 ES_MSIS600.pdf | 103 Kbytes | |
Descargar catálogo general |
