CLPK400
ELDON
4
Disponible Envío el hoy
Perfil fijación rápida, 400 CLPK400

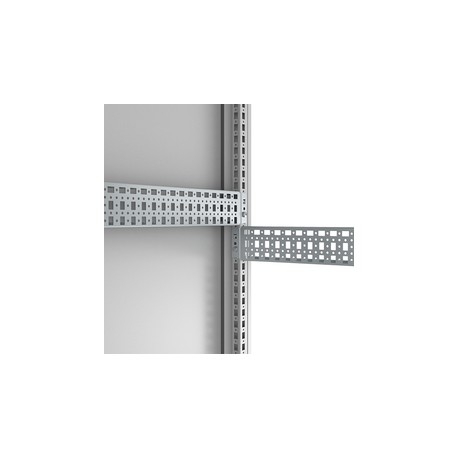

Perfil de montaje, 400, galvanizado. 4 unidades

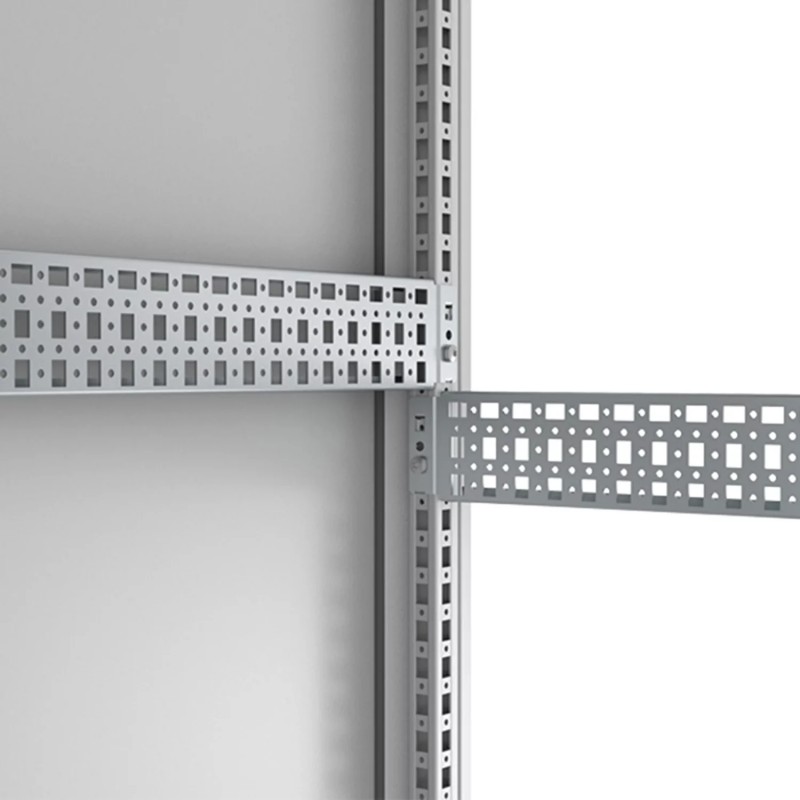

Additional accessories and electrical equipment can be mounted quickly and easily exactly where needed by using these click-in mounting profiles.
Sistemas de armarios eléctricos > Perfil (armario de control)
Armarios Autoportantes de acero
* Producto nuevo en su embalaje original con todas las garantías y certificaciones de ELDON
Gracias por su interés en nuestros productos, esperamos que el plazo indicado sea conveniente para usted.
Durante la tramitación del pedido podrá seleccionar el tipo de envío que mejor se adapte a sus necesidades: Aéreo Express 24Hrs, Terrestre Standard 48/72Hrs, etc.
Descripción: | Universal profile for both depth and width fitting on the 25 mm DIN hole pattern of the enclosure's frame or in combination with the CLPF and VB profiles. The 75 mm wide profile is equipped with three rows of holes of which one is turned 90º. This makes it possible to mount the CLPF profiles in both directions. The CLPK can be secured by the use of self tapping screws. |
Material: | 1.5 mm zinc plated steel. |
Cantidad por embalaje: : | 4 profiles. |
Feature: | Click-in mounting profiles can be installed using the interior hole pattern of a floor standing enclosure. |
Advantage: | Click-in mounting profiles can be fixed in all directions extending the enclosures interior profiles to support enclosure accessories and electrical components. The profiles do not require additional brackets as they are fixed directly to the enclosure's frame. |
Benefit: | Accessories and electrical components can be installed exactly where required creating the best enclosure solution possible. The direct fixation reduces the mounting time required. |
Título: | Tamaño: | Tipo: |
---|---|---|
CLPK400 CLPK400 ES_CLPK1000.pdf | 144 Kbytes | |
Descargar catálogo general |
