MCU3066R5
ELDON
1
Disponible Envío el hoy

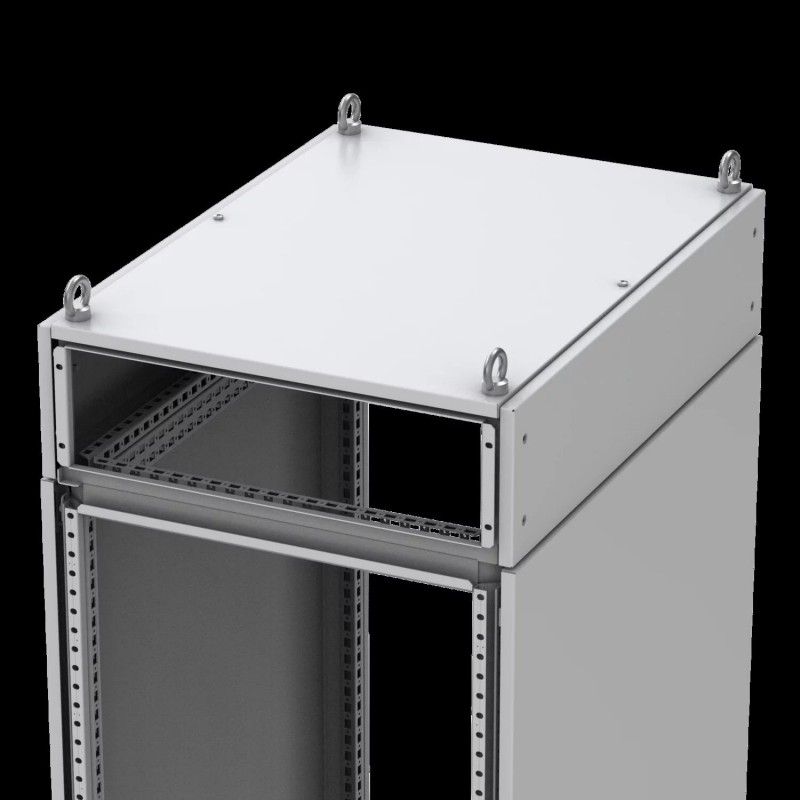

Marco sup. cables,300x600x600, combinable
This frame creates additional space in the top and can be segregated from the enclosure. It has a universal hole pattern for mounting accessories easily.
Sistemas de armarios eléctricos > Base/elemento base (armario de control)
Potencia y distribución
* Producto nuevo en su embalaje original con todas las garantías y certificaciones de ELDON
Gracias por su interés en nuestros productos, esperamos que el plazo indicado sea conveniente para usted.
Durante la tramitación del pedido podrá seleccionar el tipo de envío que mejor se adapte a sus necesidades: Aéreo Express 24Hrs, Terrestre Standard 48/72Hrs, etc.
Descripción: | For cable entry and routing or for installation of a power distribution system. Fixed to the top of the enclosure by four M12 screws. Available in both 200 mm and 300 mm height. The enclosure roof plate CCR can be used to close the top. For lifting a 200 mm high MCU together with an enclosure a separate lifting kit MCUK is needed. |
Paneles laterales: | MCUP Supplied as an accessory. |
Material: | Frame in 1.75 mm steel plate, panels in 1.35 mm steel plate. |
Acabado: | RAL 7035 structured powder coating. |
Protección: | IP 41. |
Suministro: | 1 piece with front and back panels including mounting material (without roof plate). |
Feature: | Top extension frame for mild steel combinable floor standing enclosures. |
Advantage: | The frame creates additional space at the top of the enclosure with integrated hole patterns and allows segregation if required. |
Benefit: | The frame can be segregated from the enclosure which creates extra space for hazardous components, for example main busbars. Standard accessories can be mounted within the frame thanks to the universal hole pattern allowing accessories to be easily mounted, e.g. busbar supports. |
Comment: | Side panels MCUP, are required at the beginning and end of the individual or bayed top extension frames. |
Título: | Tamaño: | Tipo: |
---|---|---|
PDF CATÁLOGO NVENT ES.pdf | 45 Mbytes | |
MCU3066R5 MCU3066R5 ES_MCU2046R5.pdf | 130 Kbytes | |
Descargar catálogo general |
