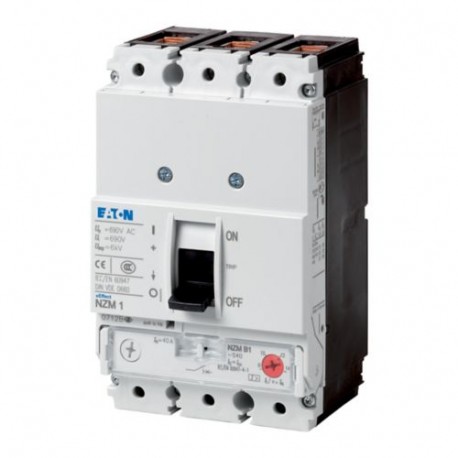

NZMN1-S5-CNA 103028 EATON MOELLER Interruptor automático sin relé térmico, 3P, Iu: 5A Ver más grande
Las imágenes son sólo a título ilustrativo. Por favor, revise la ficha técnica.

NZMN1-S5-CNA 103028 EATON MOELLER Interruptor automático sin relé térmico, 3P, Iu: 5A

NZMN1-S5-CNA

103028

EATON - MOELLER

Disponible

Envío el hoy

Producto bajo demanda, no admite devolución.

Interruptor automático sin relé térmico, 3P, Iu: 5A

Más detalles


Interruptores Magnetotermicos Automatico Control Potencia Icp

Interruptores automáticos NZM - EATON - MOELLER

Interruptores automáticos NZM - EATON - MOELLER

* Producto nuevo en su embalaje original con todas las garantías y certificaciones de EATON - MOELLER

CantidadPrecio
1+$282.00
2+$277.00
*Este precio es por unidad y muestra el valor neto (no incluye impuestos indirectos si son aplicables).

Cómo funciona

¿Cómo funciona ésto?

1 Añada los productos de su elección al carro de la compra
2 Introduzca sus datos de contacto y envíe la solicitud
3 Le enviaremos un email con un presupuesto para esos productos
4 Usted simplemente finalice la compra y recibirá su pedido

Existen varias opciones para realizar el pago
- Tarjeta de crédito
- Transferencia
- PayPal


Productos relacionados

Más Información



Delivery programme
Product range
  Circuit-breaker
Protective function
  Short-circuit protection
Standard/Approval
  UL/CSA, IEC
Installation type
  Fixed
Release system
  Thermomagnetic release
Description
  Switches conform to UL/CSA as well as the IEC regulations. IEC switching performance values are contained on the rating plate.
Motor protection in conjunction with contactor and overload relay
With short-circuit release
Without overload release Ir
Number of poles
  3 pole
Standard equipment
  Box terminal
Rated current = rated uninterrupted current
In = IuA5
Setting range

Short-circuit releases
General
Standards
  IEC/EN 60947
Protection against direct contact
  Finger and back of hand proof to VDE 0106 Part 100
Climatic proofing
  Damp heat, constant, to IEC 60068-2-78
Damp heat, cyclic, to IEC 60068-2-30
Ambient temperature

Ambient temperature, storage
 °C- -25 - + 70
Operation
 °C-25 - +70
Mechanical shock resistance (10 ms half-sinusoidal shock) according to IEC 60068-2-27
 g20 (half-sinusoidal shock 20 ms)
Safe isolation to EN 61140

Between auxiliary contacts and main contacts
 V AC500
between the auxiliary contacts
 V AC300
Mounting position

Mounting position

Vertical and 90° in all directions

Switching of one pole via two series contacts Switching of one pole via three series contacts

Basic equipment
 Box terminal  - - -
 Screw connection -
Accessories
 Box terminal -   -
 Screw connection  - -
 Tunnel terminal
 Connection on rear
 Flat conductor terminal - - -
Round copper conductor

Box terminal

Solid
 mm21 x (12 … 6)
Stranded
 mm21 x (4 … 2/0)
Tunnel terminal

Solid
 mm21 x 6
Stranded
 mm2
Stranded
 mm21 x (4 … 3/0)
Bolt terminal and rear-side connection

Direct on the switch

Solid
 mm21 x (12 … 6)
2 x (9 … 6)
Stranded
 mm21 x (4 … 2/0)
Al conductors, Cu cable



Solid
 mm21 x 16
Cu strip (number of segments x width x segment thickness)

Box terminal


min.mm2 x 9 x 0.8

max.mm9 x 9 x 0.8
Copper busbar (width x thickness)
mm
Bolt terminal and rear-side connection

Screw connection
  M6
Direct on the switch


min.mm12 x 5

max.mm16 x 5
Control cables


 mm21 x (18 … 14)
2 x (18 … 16)
Design verification as per IEC/EN 61439(Show features)(Hide features)
Technical data for design verification

Rated operational current for specified heat dissipation
InA5
Equipment heat dissipation, current-dependent
PvidW0.69
Operating ambient temperature min.
 °C-25
Operating ambient temperature max.
 °C70
IEC/EN 61439 design verification

10.2 Strength of materials and parts

10.2.2 Corrosion resistance
  Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
  Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
  Meets the product standard's requirements.
10.2.3.3 Verification of resistance of insulating materials to abnormal heat and fire due to internal electric effects
  Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
  Meets the product standard's requirements.
10.2.5 Lifting
  Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
  Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
  Meets the product standard's requirements.
10.3 Degree of protection of ASSEMBLIES
  Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
  Meets the product standard's requirements.
10.5 Protection against electric shock
  Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
  Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
  Is the panel builder's responsibility.
10.8 Connections for external conductors
  Is the panel builder's responsibility.
10.9 Insulation properties

10.9.2 Power-frequency electric strength
  Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
  Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
  Is the panel builder's responsibility.
10.10 Temperature rise
  The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
  Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
  Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
  The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
Technical data ETIM 6.0
Low-voltage industrial components (EG000017) / Motor protection circuit-breaker (EC000074)
Electric engineering, automation, process control engineering / Low-voltage switch technology / Circuit breaker (LV < 1 kV) / Motor protection circuit-breaker ([email protected] [AGZ529013])
Overload release current setting
 A0 - 0
Adjustment range undelayed short-circuit release
 A30 - 55
Thermal protection
  No
Phase failure sensitive
  No
Switch off technique
  Magnetic
Rated operating voltage
 V690 - 690
Rated permanent current Iu
 A5
Rated operation power at AC-3, 230 V
 kW1.1
Rated operation power at AC-3, 400 V
 kW2.2
Type of electrical connection of main circuit
  -
Type of control element
  Rocker lever
Device construction
  Built-in device fixed built-in technique
With integrated auxiliary switch
  No
With integrated under voltage release
  No
Number of poles
  3
Rated short-circuit breaking capacity lcu at 400 V, AC
 kA50
Degree of protection (IP)
  IP20
Height
 mm165.5
Width
 mm90
Depth
 mm88
Approvals
Product Standards  UL 489; CSA-C22.2 No. 5-09; IEC 60947-2; CE marking
UL File No.  E31593
UL Category Control No.  DKPU2
CSA File No.  022086
CSA Class No.  1432-01
North America Certification  UL recognized, CSA certified
Conditions of Acceptability  Only used in motor circuits in conjunction with suitable contactor and overload relay. SCCR value applies for complete combination starter only, consisting of instantaneous trip circuit breaker, contactor and overload relay.
Specially designed for North America  Yes
Suitable for  Branch circuits, feeder circuits
Current Limiting Circuit-Breaker  No
Max. Voltage Rating  480Y/277 V
Degree of Protection  IEC: IP20; UL/CSA Type: -
Characteristics
IL01203004Z (AWA1230-1913) Circuit-breaker, Switch-Disconnector

>>

Datasheet - PDF
