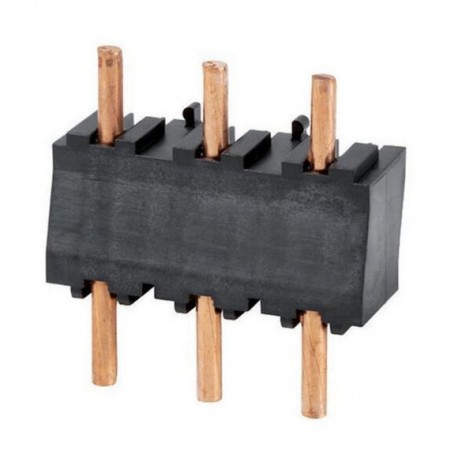

PKZM4-XM65DE 101056 EATON MOELLER XTPAXECMD Cableado circuito principal Ver más grande
Las imágenes son sólo a título ilustrativo. Por favor, revise la ficha técnica.

PKZM4-XM65DE 101056 EATON MOELLER XTPAXECMD Cableado circuito principal

PKZM4-XM65DE

101056

EATON - MOELLER

Disponible

Envío el hoy

XTPAXECMD Cableado circuito principal

Más detalles


Interruptores Protectores Motor Guardamotores

Interruptores protectores de motor PKZ - EATON - MOELLER

Interruptor protector motor PKZM0, PKZM01 y PKZM4 - EATON - MOELLER

* Producto nuevo en su embalaje original con todas las garantías y certificaciones de EATON - MOELLER

CantidadPrecio
1+$6.57
19+$5.53
38+$5.39
56+$5.33
75+$5.28
*Este precio es por unidad y muestra el valor neto (no incluye impuestos indirectos si son aplicables).

Existen varias opciones para realizar el pago
- Tarjeta de crédito
- Transferencia
- PayPal


Productos relacionados

Más Información



Delivery programme
Product range
  Accessories
Accessories
  Electric contact module

  Electric contact module
For use with
  Electric contact module PKZ4, PKE65
For use with
  PKZM4, PKE65 + DILM40
PKZM4, PKE65 + DILM50
PKZM4, PKE65 + DILM65
Notes
  • Main current wiring between PKZM4, PKE65 and contactor
Design verification as per IEC/EN 61439(Show features)(Hide features)
Technical data for design verification

Rated operational current for specified heat dissipation
InA65
Heat dissipation per pole, current-dependent
PvidW0.2
Equipment heat dissipation, current-dependent
PvidW0.6
Static heat dissipation, non-current-dependent
PvsW0
Heat dissipation capacity
PdissW0
Operating ambient temperature min.
 °C-25
Operating ambient temperature max.
 °C55
IEC/EN 61439 design verification

10.2 Strength of materials and parts

10.2.2 Corrosion resistance
  Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
  Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
  Meets the product standard's requirements.
10.2.3.3 Verification of resistance of insulating materials to abnormal heat and fire due to internal electric effects
  Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
  Meets the product standard's requirements.
10.2.5 Lifting
  Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
  Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
  Meets the product standard's requirements.
10.3 Degree of protection of ASSEMBLIES
  Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
  Meets the product standard's requirements.
10.5 Protection against electric shock
  Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
  Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
  Is the panel builder's responsibility.
10.8 Connections for external conductors
  Is the panel builder's responsibility.
10.9 Insulation properties

10.9.2 Power-frequency electric strength
  Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
  Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
  Is the panel builder's responsibility.
10.10 Temperature rise
  The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
  Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
  Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
  The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
Technical data ETIM 6.0(Show features)(Hide features)
Low-voltage industrial components (EG000017) / Wiring set for power circuit breaker (EC002050)
Electric engineering, automation, process control engineering / Low-voltage switch technology / Circuit breaker (LV < 1 kV) / Wiring set for circuit breaker ([email protected] [ACN957008])
Suitable for number of poles
  3
Model
  -
Approvals
Product Standards  UL 508; CSA-C22.2 No. 14; IEC60947-4-1; CE marking
UL File No.  E36332
UL Category Control No.  NLRV
CSA File No.  165628
CSA Class No.  3211-05
North America Certification  UL listed, CSA certified
Specially designed for North America  No
CAD data
>Product-specific CAD data
>3D Preview

Datasheet - PDF

Title:Language:Size:Type:
pdf-Cableado circuito principal - EATON - PKZM4-XM65DE - 101056English146 Kbytespdf-Cableado circuito principal - EATON - PKZM4-XM65DE - 101056
