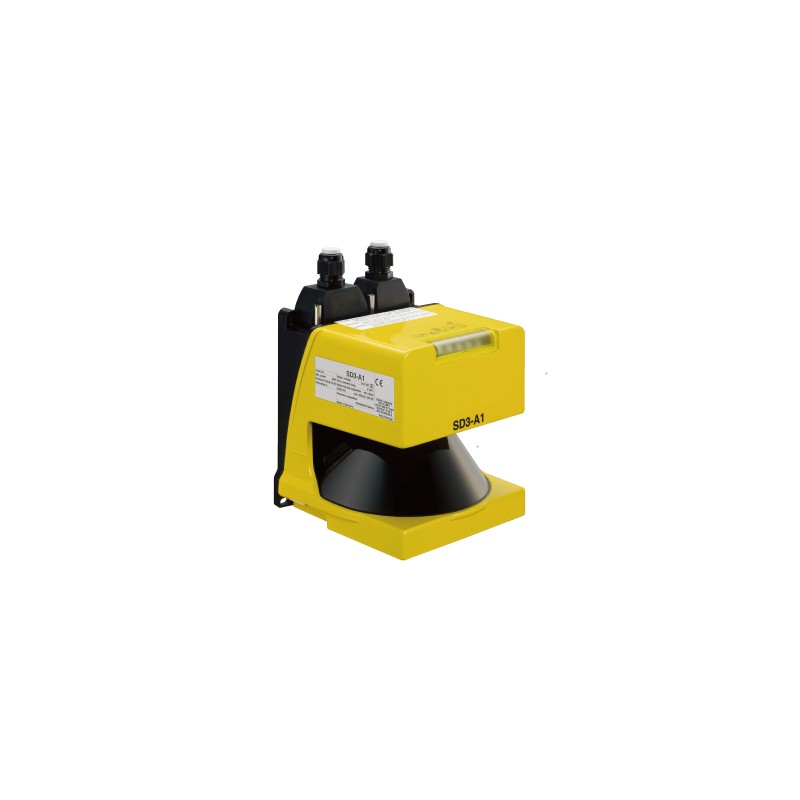

SD3-A1 53800001 PANASONIC Safety-Laserscanner, Typ 3, PLd, SIL2, sesning range 15m, laser class 1, 24VDC, PNP
SD3-A1
53800001
PANASONIC
Safety-Laserscanner, Typ 3, PLd, SIL2, sesning range 15m, laser class 1, 24VDC, PNP
Safety - PANASONIC > SD3 laser scanner safety sensors type 3 · PLd · SIL2 - PANASONIC
* Brand new product in its original packaging covered by the warranties and certifications provided by PANASONIC
More info
▲| Product Number | SD3-A1 |
| Part Number | SD3-A1 |
| Product | Safety Laser Scanner Type 3 |
| Product name | Safety Laser Scanner Type 3 SD3-A1 |
| Item | Specifications |
|---|---|
| Product Number | SD3-A1 |
| Part Number | SD3-A1 |
| Applicable standards:International standard | IEC 61496-1/3 (Type 3), ISO 13849-1 (Category 3, PLd), IEC 61508-1 to 7 (SIL2), IEC 62061 (SIL2) |
| Applicable standards:Japan | JIS B 9704-1/3 (Type 3), JIS B 9705-1 (Category 3), JIS C 0508 (SIL2) |
| Applicable standards:Europe (EU) | EN 61496-1 (Type 3), ISO 13849-1 (Category 3, PLd), EN 61508-1 to 7 (SIL2) |
| dummy | dia. 150 mm dia. 5.906 in/0 to 4.0 m 0 to 13.123 ft dia. 70 mm dia. 2.756 in/0 to 4.0 m 0 to 13.123 ft dia. 50 mm dia. 1.969 in/0 to 2.8 m 0 to 9.186 ft dia. 40 mm dia. 1.575 in/0 to 2.2 m 0 to 7.218 ft dia. 30 mm dia. 1.181 in/0 to 1.6 m 0 to 5.249 ft |
| dummy | When dust suppression function is not selected: 83 mm 3.268 in When dust suppression function is selected: 83 mm 3.268 in for less than 3.5 mm 0.138 in, and 100 mm 3.937 in for 3.5 mm 0.138 in or more (automatically calculated using the included software) |
| dummy | Minimum 1.8 % |
| dummy | dia. 150 mm dia. 5.906 in (fixed) |
| dummy | 0 to 15 m 0 to 49.213 ft |
| dummy | Minimum 20 % |
| dummy | 50 m 164.042 ft (fixed) |
| dummy | 190degrees / 180degrees (by setting) |
| dummy | Max. 7 + 1 (without detection zone) [Zone pairs in combination of detection zone and warning zone can be switched over by external input] |
| dummy | 200mm 7.874 in |
| dummy | 24 V DC+20-30 % (IEC 60742) |
| Current consumption | 300mA approx. (excluding external connection load) |
| Fuse rating | 1.25 A semi-time-lag fuse |
| Control outputs (OSSD 1, OSSD 2) | PNP open-collector transistor 2 outputs - Rated operating voltage: supply voltage (UB) - 3.2 V - Max. source current: 250 mA - Residual voltage: 3.2 V or less |
| Control outputs (OSSD 1, OSSD 2):Operation mode | When no object enters into the detection zone: ON When an object enters: OFF |
| Control output(OSSD 1, OSSD 2):Response time | Min. 80 ms (2 scans) to max. 640 ms (16 scans) switching method |
| Control outputs (OSSD 1, OSSD 2):Protection circuit | Incorporated |
| dummy | PNP open-collector transistor - Rated operating voltage: supply voltage (UB) - 4 V - Max. source current: 100 mA - Residual voltage: 4 V or less |
| dummy | Switching method of operation mode (set by below) - Not used - Main unit at normal operation: ON, Abnormal operation: OFF - When no object enters into the warning zone: ON, When an object enters: OFF - Main unit at normal operation: ON, Abnormal operation: OFF and When no object enters into the warning zone: ON, When an object enters: OFF |
| dummy | Min. 80 ms (2 scans) to max. 640 ms (16 scans) switching method |
| dummy | PNP open-collector transistor - Rated operating voltage: supply voltage (UB) - 4 V - Max. source current: 100 mA - Residual voltage: 4 V or less |
| dummy | Main unit at normal operation: ON Abnormal operation: OFF |
| dummy | Class 1 [IEC 60825, FDA (Note) ] (Note) In accordance Laser Warning 50 (2007.6.24), based on FDA regulations (21 CFR 1040.10, 1040.11). |
| dummy | 905 nm 0.036 mil |
| Environmental resistance:Degree of protection | IP65 |
| Ambient temperature | 0 to +50degrees +32 to +122 degrees Fahrenheit , Storage: -20 to +60degrees -4 to +140 degrees Fahrenheit |
| Ambient humidity | Operation and storage: Max. 95 % RH (No dew condensation) |
| dummy | 10 to 150 Hz frequency, 5 G max. (50 m/s2 approx.) in X, Y and Z directions for twenty times each |
| Maximum cable length | 15-pin plug: Max. 50 m 164.042 ft 9-pin plug: Max. 10 m 32.808 ft (when using RS-232C) / Max. 50 m 164.042 ft (when using RS-422) (by using optional connection cable) (Note) (Note) Be careful that a voltage drop may occur depending on the cable length or cable's conductor cross-section area. |
| Material | Main body: Die-cast aluminum Scanner window: Thermoplastic resin |
| Accessories | SD3-PS (exclusive 15-pin connector): 1 pc SD3-RS232 (exclusive 9-pin connector): 1 pc Mounting screws [M5 (length 20 mm 0.787 in) hexagon-socket-head bolt: 2 pcs M5 (length 16 mm 0.630 in) hexagon-socket-head bolt: 2 pcs., attached to SD3-PS]: 1 set Simplified instruction manual: 1 copy Installation CD-ROM (includes detailed instruction manual data): 1 CD |
| Weight | Net weight: 2.1 kg approx Gross weight: 2.9 kg approx |
