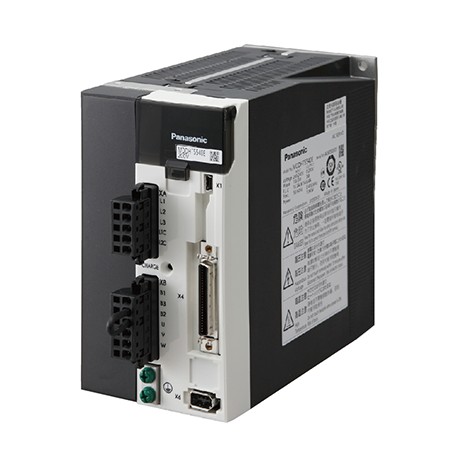

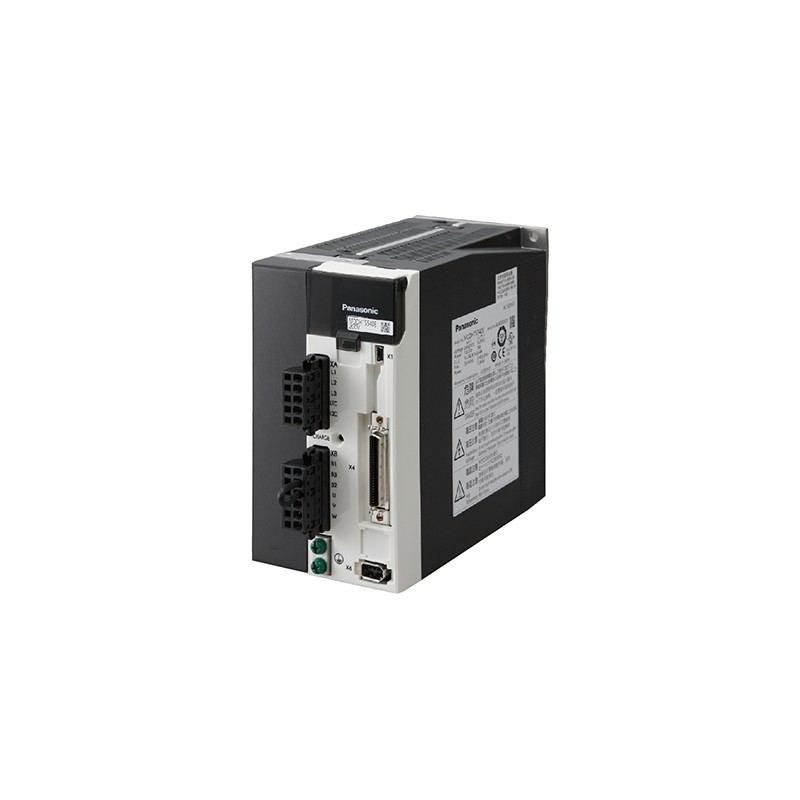

MDDHT3420E PANASONIC Servo drive MINAS A5E series, position control via address input, without analog input,..
MDDHT3420E
PANASONIC
MDDHT3420E_Servo Driver_MINAS A5 Family Servo Driver_A5E seriesPosition control typewithout the safety function
Minas A5 Series - PANASONIC > MINAS A5E, Drivers, position control, 3 phase 400V power supply - PANASONIC
* Brand new product in its original packaging covered by the warranties and certifications provided by PANASONIC
More info
▲| Part Number | MDDHT3420E |
| Product | Servo Driver |
| Details | A5E series Position control type without the safety function |
| Product name | MINAS A5 Family Servo Driver |
| Features | Servo motor that bring out potential of the machine. |
| Item | Specifications |
|---|---|
| Part Number | MDDHT3420E |
| Details | A5E series Position control type without the safety function |
| Family Name | MINAS A5 |
| Series | A5E series |
| Type | Position control type |
| Frame | D-Frame |
| Frequency response | 2.3 kHz |
| Control method | Position control |
| Safety Function | without the safety function |
| Power device Max. current rating | 30A |
| Current detector current rating | 20A |
| Supply voltage | 3-phase 400 V |
| I/F Classification of type | Analog/Pulse |
| Dimensions (W) (Unit: mm) | 85 |
| Dimensions (H) (Unit: mm) | 150 |
| Dimensions (D) (Unit: mm) | 170 |
| Mass (kg) | 1.8 |
| Environment | For more details, please refer to the instruction manual. |
Datasheet - PDF
