FX311BP
FX-311BP
PANASONIC
1

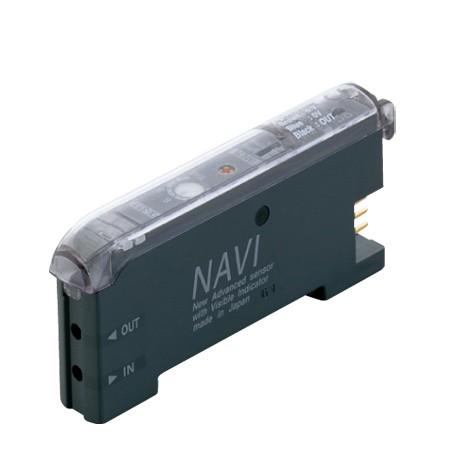

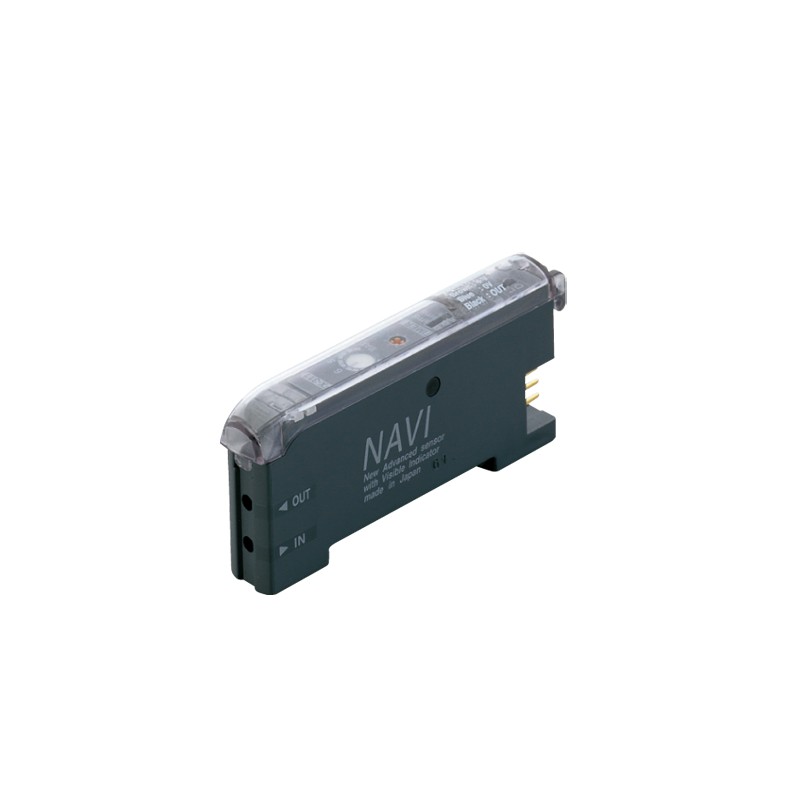

Fiber amplifier, blue LED, PNP, 12-turn potentiometer, connector type
Fiber - PANASONIC > FX311 preset digital fiber sensor - PANASONIC
* Brand new product in its original packaging covered by the warranties and certifications provided by PANASONIC
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
Product Number | FX-311BP |
Part Number | FX-311BP |
Product | Manually Set Fiber Sensor |
Details | PNP output |
Product name | Manually Set Fiber Sensor FX-311 |
Item | Specifications |
---|---|
Product Number | FX-311BP |
Part Number | FX-311BP |
Supply voltage | 12 to 24 V DC ±10 % Ripple P-P 10 % or less |
Power consumption | 840 mW or less (Current consumption 35 mA or less at 24 V supply voltage) |
Output | PNP open-collector transistor • Maximum source current: 100 mA(50 mA, if five, or more, amplifiers are connected in cascade) • Applied voltage: 30 V DC or less (between output and +V) • Residual voltage: 1.5 V or less[at 100 mA sink current (50 mA, if five, or more, amplifiers are connected in cascade)] |
Output:Output operation | Selectable either Light-ON or Dark-ON, with selection switch |
Output:Short-circuit protection | Incorporated |
Response time | 150 μs or less (FAST), 250 μs or less (STD), 2 ms or less (LONG) selectable with selection switch |
Operation indicator | Orange LED (lights up when the output is ON) |
Stability indicator | Green LED (lights up under stable light received condition or stable dark condition) |
Sensitivity adjuster | 12-turn potentiometer with indicator (Pointer part: red backlight) (Note):The red backlight of the pointer part lights up more brightly when the power is turned ON and when the sensitivity is adjusted. |
Timer function | Incorporated with OFF-delay timer, selectable either effective (approx. 10 ms or 40 ms) or ineffective |
Automatic interference prevention function | Incorporated (Up to 4 sets of fiber heads can be mounted close together.) (Note):When the power supply is switched on, the emission timing are automatically set for interference prevention. |
Ambient temperature | -10 to +55 ℃ -14 to +131 ℉ (If 4 to 7 units are connected in cascade: -10 to +50 ℃ +14 to +122 ℉, if 8 to 16 units are connected in cascade: -10 to +45 ℃ +14 to +113 ℉) (No dew condensation or icing allowed) Storage: -20 to +70 ℃ -4 to +158 ℉ |
Ambient humidity | 35 to 85 % RH, Storage: 35 to 85 % RH |
Ambient illuminance | Incandescent light: 3,000 ℓx at the light-receiving face |
Voltage withstandability | 1,000 V AC for one min. between all supply terminals connected together and enclosure (Note):The voltage withstandability and the insulation resistance values given in the above table are for the amplifier only. |
Insulation resistance | 20 MΩ, or more, with 250 V DC megger between all supply terminals connected together and enclosure (Note):The voltage withstandability and the insulation resistance values given in the above table are for the amplifier only. |
Vibration resistance | 10 to 150 Hz frequency, 0.75 mm 0.03 in amplitude in X, Y and Z directions for two hours each |
Shock resistance | 98 m/s2 acceleration (10 G approx.) in X, Y and Z directions for five times each |
Emitting element (modulated) | Blue LED |
Emitting element (modulated):Peak emission wavelength | 470 nm 0.019 mil |
Material | Enclosure: Heat-resistant ABS, Case cover: Polycarbonate |
Connection method | Connector (Note):The cable for amplifier connection is not supplied as an accessory. Make sure to use the optional quick-connection cable given below. Main cable (3-core): CN-73-C1 (cable length 1 m 3.281 ft), CN-73-C2 (cable length 2 m 6.562 ft), CN-73-C5 (cable length 5 m 16.404 ft) Sub cable (1-core): CN-71-C1 (cable length 1 m 3.281 ft), CN-71-C2 (cable length 2 m 6.562 ft), CN-71-C5 (cable length 5 m 16.404 ft) |
Cable length | Total length up to 100 m 328.084 ft is possible with 0.3 mm2, or more, cable. |
Weight | Net weight: 15 g approx., Gross weight: 20 g approx. |
Title: | Size: | Type: |
---|---|---|
Datasheet 1: FX311BP - FX311BP | FX-311BP | 4 Mbytes | |
Download general catalog |
