FDH13FM2 FD-H13-FM2 PANASONIC Fiber, diffuse, -60°C bis +130°C, 2m
FDH13FM2
FD-H13-FM2
PANASONIC
Fiber, diffuse, -60°C bis +130°C, 2m
Fiber - PANASONIC > HEAT-RESISTANT type optical fibers - PANASONIC
* Brand new product in its original packaging covered by the warranties and certifications provided by PANASONIC
Best sellers
▲More info
▲| Product Number | FD-H13-FM2 |
| Part Number | FD-H13-FM2 |
| Product | Reflective type Fiber |
| Details | Heat-resistant Fiber |
| Product name | Heat-resistant Fiber |
| Item | Specifications |
|---|---|
| Product Number | FD-H13-FM2 |
| Part Number | FD-H13-FM2 |
| Sensing mode | Reflective type |
| Fiber type | Heat-resistant |

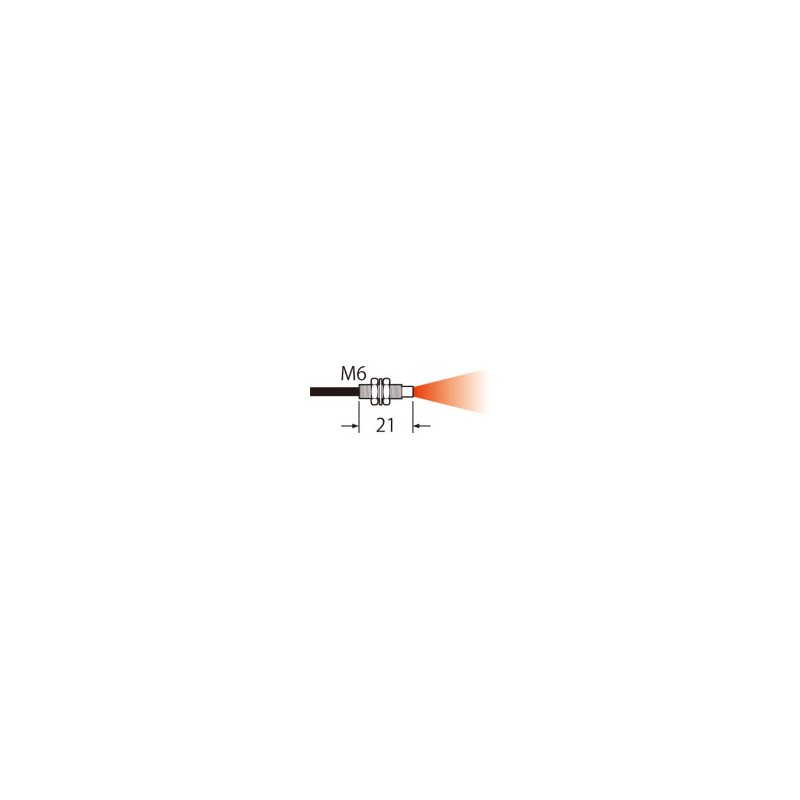

| Fiber head dia. | M6 |
| Fiber head length | 21 mm |
| With sleeve | No |
| Beam direction | Top-view |
| Fiber cable length | 2m |
| Allowable bending radius | R25 mm |
| Free-cut | Available |
| Semi-custom | Fiber length change |
| Mounting lens | Not available |
| Mounting protective tube | FDP-500,FDP-1000,FDP-1500 |
| Application | Heat-resistant |
| Environmental resistance : Ambient temperature MAX | 130 degrees |
| Environmental resistance : Ambient temperature MIN | -60 degrees |
| Sensing range（STD） | 350 mm 13.780 in (FX-500 series) |
| Sensing range（HYPR） | 880 mm 34.646 in (FX-500 series) |
| Sensing range（U-LG） | 640 mm 25.197 in (FX-500 series) |
| Sensing range（LONG） | 600 mm 23.622 in (FX-500 series) |
| Sensing range（FAST） | 200 mm 7.874 in (FX-500 series) |
| Sensing range（H-SP） | 65 mm 2.559 in (FX-500 series) |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PANASONIC SENSORS EN.pdf | 31 Mbytes |
|
| PDF CATALOGUE PANASONIC EN.pdf | 15 Mbytes |
|
| Datasheet 1: FDH13FM2 - FDH13FM2 | FD-H13-FM2 | 4 Mbytes |
|
