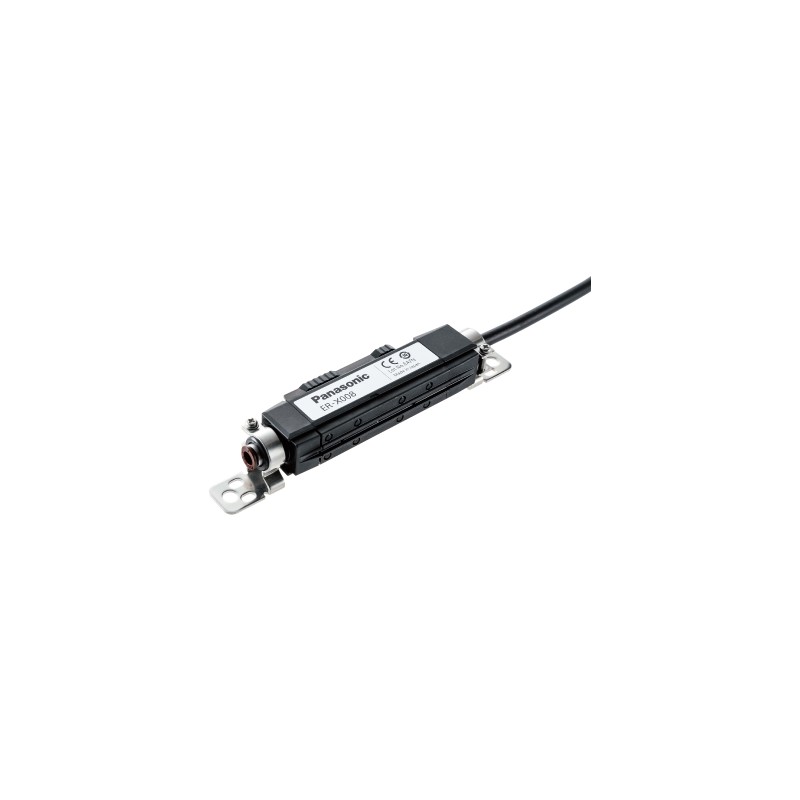

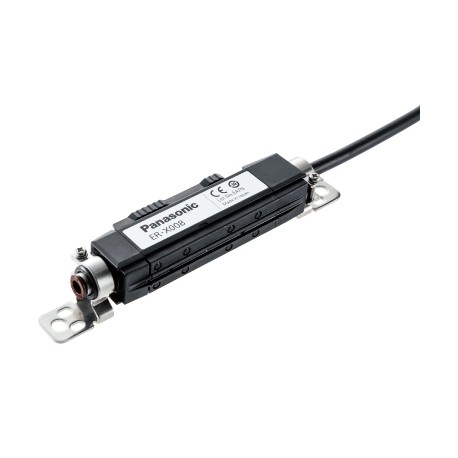

ER-X008 PANASONIC Wide-area, high speed ionizer-head, bar type, removal width 80mm, charge removal time 1sec..
ER-X008
PANASONIC
Wide-area, high speed ionizer-head, bar type, removal width 80mm, charge removal time < 1sec, ion balance max. ± 30V, discharge output voltage approx. 7kV
Ionizers - PANASONIC > ER-X high speed ionizer - PANASONIC
* Brand new product in its original packaging covered by the warranties and certifications provided by PANASONIC
More info
▲| Product Number | ER-X008 |
| Part Number | ER-X008 |
| Product | Pulse AC Method Area Ionizer |
| Details | Head |
| Product name | Pulse AC Method Area Ionizer ER-X |
| Item | Specifications |
|---|---|
| Product Number | ER-X008 |
| Part Number | ER-X008 |
| CE marking compliant directives | EMC Directive, RoHS Directive |
| Effective charge removal width | 80 mm 3.150 in approx. |
| Charge removal time | 1 second or less (Note： In condition of discharge distance 100 mm 3.937 in, center of the product, discharge wavelength 50 Hz and no air supply.) |
| Ion balance | plus or minus 30 V or less (Note： In condition of discharge distance 100 mm 3.937 in, center of the product, discharge wavelength 50 Hz and no air supply.) (Note： Ion balance is average of plus and minus. Also, the specification value is typical value in condition of less than plus or minus 10 degrees ambient temperature change, set the ion balance after 30 minutes of the discharge starting, switching on the ion balance control function.) |
| Discharge method | Pulse AC method |
| Discharge frequency | 50 Hz / 30 Hz / 20 Hz / 10 Hz / 5 Hz / 1 Hz |
| Discharge output voltage | ±7,000 V approx. |
| Ozone generation | 0.01 ppm or less |
| Maximum air pressure | 0.5 MPa |
| Applicable fluid | Air (dried clean air) (Note：The dried clean air is dried (dew point: equivalent of -20 degrees ) and filtered (mesh-size: equivalent of 0.01 micro m) air.) |
| Operating altitude | 2,000 m6561.68 ftor less (Note：Do not use or store in an environment that has been pressurized to an air pressure higher than the atmospheric pressure at 0 m.) |
| Ambient temperature | 0 to +50 degrees +32 to +122 degrees Fahrenheit (No dew condensation), Storage: -10 to +65 degrees +14 to +149 degrees Fahrenheit |
| Ambient humidity | 35 to 65 % RH, Storage: 35 to 85 % RH |
| Vibration resistance | 10 to 55 Hz frequency, 0.75 mm0.030 indouble amplitude in X, Y and Z directions for two hours each |
| Shock resistance | 100 m/s2 acceleration (10 G approx.), in X, Y and Z directions three times each |
| Enclosure earthing | Floating |
| Material | Main unit enclosure: PPS, Stainless steal (SUS) Head mounting bracket: Stainless steal (SUS) Discharge needle: Tungsten |
| Length of high-voltage cable | 0.5 m1.640 ft |
| Weight | Net weight : 330 g approx. |
Datasheet - PDF
