DP111EPJ
DP-111-E-P-J
PANASONIC
1

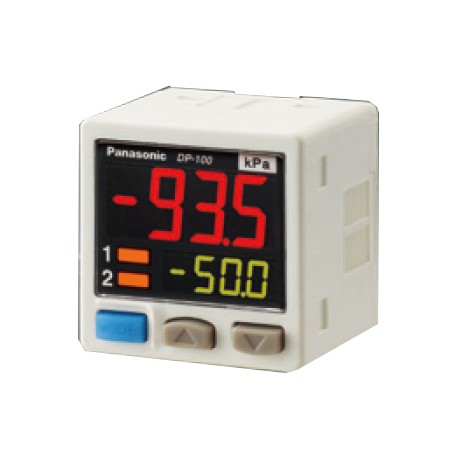

Pressure sensor, -1 to 1bar, 2xPNP, M5 and G1/8, M8-connector
Pressure sensors - PANASONIC > DP100 dual display pressure sensor. M8 - PANASONIC
* Brand new product in its original packaging covered by the warranties and certifications provided by PANASONIC
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
Product Number | DP-111-E-P-J |
Part Number | DP-111-E-P-J |
Product | Dual Display Digital Pressure Sensor [For Gas] |
Details | Standard pressure port type |
Product name | Dual Display Digital Pressure Sensor [For Gas] DP-100 |
Item | Specifications |
---|---|
Product Number | DP-111-E-P-J |
Part Number | DP-111-E-P-J |
CE marking directive compliance | EMC Directive, RoHS Directive |
Type of pressure | Gauge pressure |
Rated pressure range | -100.0 to +100.0 kPa |
Set pressure range | -101.0 to +101.0 kPa -1.030 to +1.030 kgf/cm2 -1.010 to +1.010 bar -14.64 to +14.64 psi -757 to +757 mmHg -29.8 to 29.8 inHg |
Pressure withstandability | 500 kPa |
Applicable fluid | Non-corrosive gas |
Supply voltage | 12 to 24 V DC ±10 % Ripple P-P 10 % or less |
Power consumption | Normal operation : 720 mW or less (Current consumption 30 mA or less at 24 V supply voltage) ECO mode : 480 mW or less at STD (Current consumption 20 mA or less at 24 V supply voltage) 360 mW or less at FULL (Current consumption 15 mA or less at 24 V supply voltage) |
Comparative output | <PNP output> PNP open-collector transistor - Maximum source current : 100 mA - Applied voltage : 30 V DC or less (between comparative output and +V) - Residual voltage : 2 V or less (at 100 mA source current) |
Comparative output : Output operation | NO / NC (selectable by key operation) |
Comparative output : Output modes | EASY mode / Hysteresis mode / Window comparator mode |
Comparative output : Hysteresis | Minimum 1 digit (variable)(however, 2 digits when using psi unit) |
Comparative output : Repeatability | ±0.1 % F.S. (within ±2 digits) |
Comparative output : Response time | 2.5 ms, 5 ms, 10 ms, 25 ms, 50 ms, 100 ms, 250 ms, 500 ms, 1,000 ms, 5,000 ms, selectable by key operation |
Comparative output : Short-circuit protection | Incorporated |
External input | - |
Analog voltage output | - |
Analog current output | - |
Display | 4 digits + 4 digits 3-color LCD display (Display refresh rate : 250 ms, 500 ms, 1,000 ms, selectable by key operation) |
Display : Displayable pressure range | -101.0 to +101.0 kPa -1.030 to +1.030 kgf/cm2 -1.010 to +1.010 bar -14.64 to +14.64 psi -757 to +757 mmHg -29.8 to 29.8 inHg |
Indicator | Orange LED (Comparative output 1 operation indicator, comparative output 2 operation indicator : Lights up when each comparative output is ON) |
Protection | IP40 (IEC) |
Ambient temperature | -10 to +50 ℃+14 to +122 ℉, Storage : -10 to +60 ℃+14 to +140 ℉ |
Ambient humidity | 35 to 85 % RH (No dew condensation or icing allowed), Storage : 35 to 85 % RH |
Voltage withstandability | 1,000 V AC for one min. between all supply terminals connected together and enclosure |
Insulation resistance | 50MΩ or more with 500 V DC megger between all supply terminals connected together and enclosure |
Vibration resistance | 10 to 500 Hz frequency, 3 mm0.118 indouble amplitude or maximum acceleration 196 m/s2, in X, Y and Z directions for two hours each (when panel is mounted: 10 to 150 Hz frequency, 0.75 mm0.030 inamplitude or maximum acceleration 49 m/s2, in X, Y and Z directions for two hours each) |
Shock resistance | 100 m/s2acceleration (10 G approx.) in X, Y and Z directions three times each |
Temperature characteristics | Within ±0.5 % F.S. (at +20 ℃+68 ℉) |
Pressure port | M5 female thread + G 1/8 male thread |
Material | Enclosure : PBT (glass fiber reinforced), LCD display : Acrylic, Pressure port : Stainless steel (SUS303), Mounting threaded part : Brass (nickel plated), Switch part : Silicone rubber |
Connecting method | Connector |
Cable length | Total length up to 100 m328.084 ft(less than 30 m98.425 ftwhen conforming to CE marking) is possible with 0.3 mm2, or more, cable |
