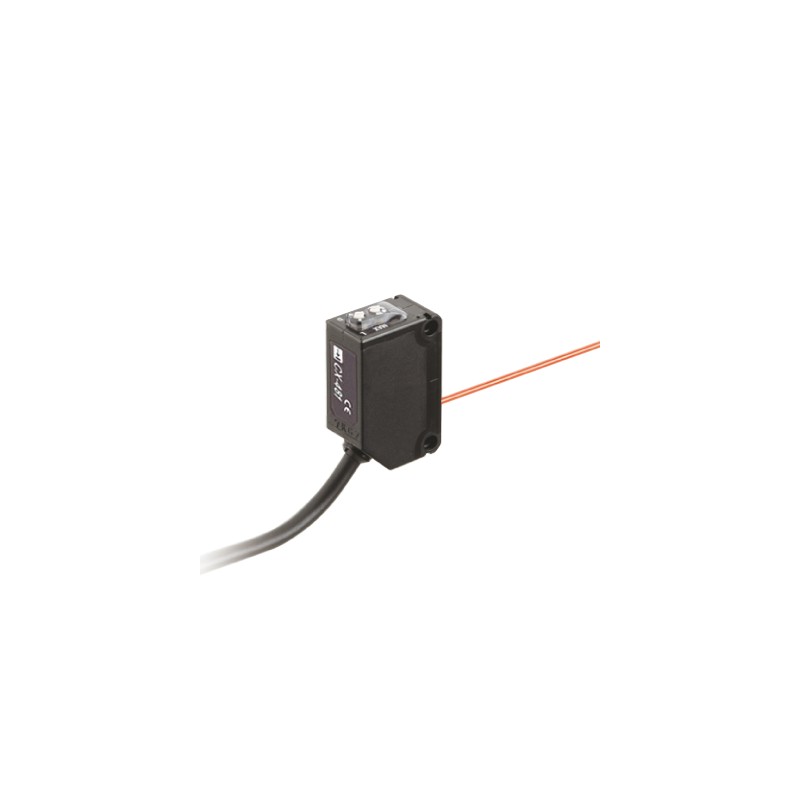

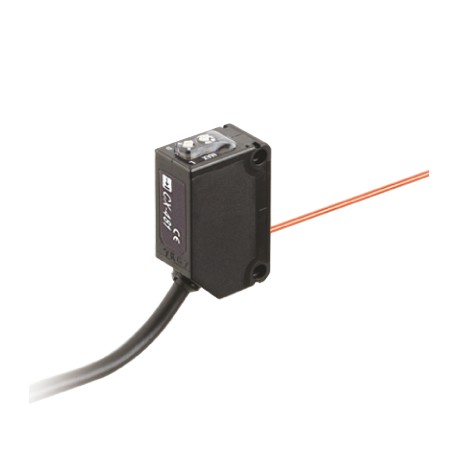

CX-483-J PANASONIC Retroreflecitve (for transparent objects), 1m, NPN, M12 connector
CX-483-J
PANASONIC
Retroreflecitve (for transparent objects), 1m, NPN, M12 connector
Compact photoelectric sensor, reflection on mirror, TRANSPARENT OBJECTS, 1m, NPN, M8 connector
CX-483-J_Compact Photoelectric Sensor_Compact Photoelectric Sensor CX-400 Ver.2_Retroreflective(For transparent object sensing)
Miniature Photoelectric Sensors - PANASONIC > CX400 Compact Photoelectric Sensor. Retroreflective types for sensing transparent objects - PANASONIC
* Brand new product in its original packaging covered by the warranties and certifications provided by PANASONIC
More info
▲| Product Number | CX-483-J |
| Part Number | CX-483-J |
| Product | Compact Photoelectric Sensor |
| Details | Retroreflective(For transparent object sensing) |
| Product name | Compact Photoelectric Sensor CX-400 Ver.2 |
| Item | Specifications |
|---|---|
| Product Number | CX-483-J |
| Part Number | CX-483-J |
| CE marking directive compliance | EMC Directive, RoHS Directive |
| Sensing range | 50 to 1,000mm 1.969 to 39.37 in (Note) The sensing range and the sensing object of the retroreflective type sensor are specifi ed for the RF-230 reflector. The sensing range represents the actual sensing range of the sensor. |
| Sensing object | Ø50 mm Ø1.969 in or more transparent,translucent or opaque object (Note) The sensing range and the sensing object of the retroreflective type sensor are specifi ed for the RF-230 reflector. The sensing range represents the actual sensing range of the sensor. (Note) Make sure to confirm detection with an actual sensor before use. |
| Hysteresis | - |
| Repeatability(perpendicular to sensing axis) | 0.5 mm 0.020 in or less |
| Supply voltage | 12 to 24 V DC plus or minus 10 % Ripple P-P 10 % or less |
| Current consumption | 10 mA or less |
| Output | NPN open-collector transistor - Maximum sink current: 100 mA - Applied voltage: 30 V DC or less (between output and 0 V) - Residual voltage: 2 V or less (at 100 mA sink current), 1 V or less (at 16 mA sink current) |
| Output:Output operation | Switchable either Light-ON or Dark-ON |
| Output:Short-circuit protection | Incorporated |
| Response time | 1 ms or less |
| Operation indicator | Orange LED(lights up when the output is ON) (incorporated on the receiver for thru-beam type) |
| Stability indicator | Green LED(lights up under stable light received condition or stable dark condition) (incorporated on the receiver for thru-beam type) |
| Power indicator | - |
| Sensitivity adjuster | Continuously variable adjuster(incorporated on the receiver for thru-beam type) |
| Automatic interference prevention function | Incorporated(Two units of sensors can be mounted close together.) |
| Protection | IP67 (IEC) |
| Ambient temperature | - 25 to +55℃ -13 to +131℃ ℉ (No dew condensation or icing allowed ), Storage: -30 to +70℃ -22 to +158℃ ℉ |
| Ambient humidity | 35 to 85 % RH, Storage: 35 to 85 % RH |
| Ambient illuminance | Incandescent light: 3,000 lx or less at the light-receiving face |
| Voltage withstandability | 1,000 V AC for one min. between all supply terminals connected together and enclosure |
| Insulation resistance | 20 MOhm , or more, with 250 V DC megger between all supply terminals connected together and enclosure |
| Vibration resistance | 10 to 500 Hz frequency, 1.5 mm 0.059 in amplitude (10 G max.) in X, Y and Z directions for two hours each |
| Shock resistance | 500 m/s2acceleration (50 G approx.) in X, Y and Z directions three times each |
| Emitting element (modulated) | Infrared LED |
| Emitting element (modulated):Peak emission wavelength | 870 nm 0.034 mil |
| Material | Enclosure: PBT (polybutylene terephthalate) Lens: polycarbonate Indicator cover: polycarbonate |
| Accessory | RF-230 (Reflector): 1 pc. |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| Datasheet 1: CX483J - CX-483-J | CX-483-J | 3 Mbytes |
 |
