HSP-300-5
MEANWELL
1
Available Ship on today

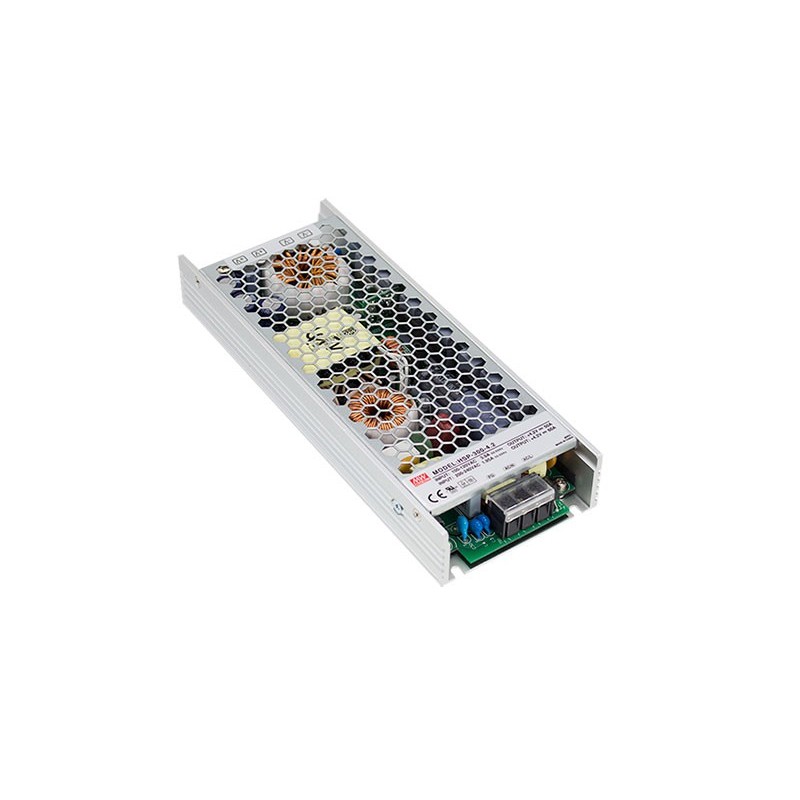

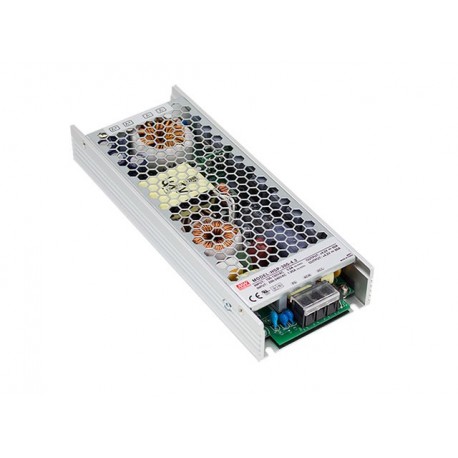

AC-DC Single output enclosed power supply with PFC, Output 5VDC / 60A, 1U low profile, conformal coated
PFC > HSP
* Brand new product in its original packaging covered by the warranties and certifications provided by MEANWELL
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
Name | HSP-300-5 |
---|---|
Long Description | Switch mode power supply. Input range180-264vac47-63Hz. Output voltage5vdc. Adjustable by potentiometer (4,5-5,5 Vdc). Output intensity60A. Range of output current 0-60A according to demand load. Power:300W. Efficiency typical:87%. Factor Corrector, Power>To 0.93. Low leakage current<0.5 mA. With special coating. Operating temperature range of caseTcfrom-30up+70ºC. Dimensions (Length x Width x Height) [mm]:210 x 81 x 31. 3 years of warranty. Manufacturer: MEAN WELL. Series HSP are sources of grid with low profile (32mm) MEAN WELL. Are specially designed for panels of LED signage with output voltages very low. |
Country of Origin | China |
Manufacturer | MEAN WELL |
Product type | Power supply AC/DC |
Format | Box |
Subformato | Grid |
Applications | Industrial, Telecommunications |
Series | HSP-300 |
Warranty (Years) | 3,00 |
Height (mm) | 31.00 |
Width (mm) | 81.00 |
Long/Background | 210.00 |
Type of Entry CA | Single-phase |
AC input Min | 180,00 |
AC input Max | 264,00 |
Input frequency | 50 Hz, 60 Hz |
Input connector | Screw-Type |
Output voltage | 5,00 |
Power (W) | 300,00 |
Peak Power (W) | Three hundred |
Output connector | Screw-Type |
Isolation (V) | 3.000,00 |
Approvals | CCC, CE, UL |
