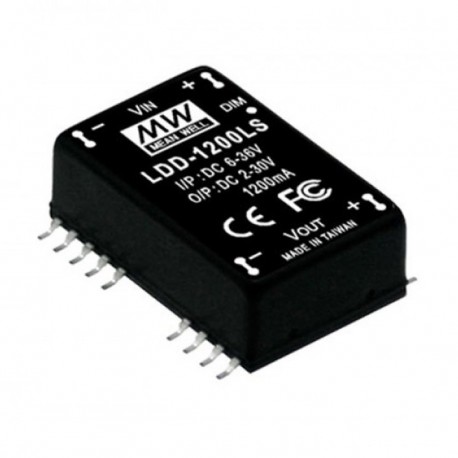

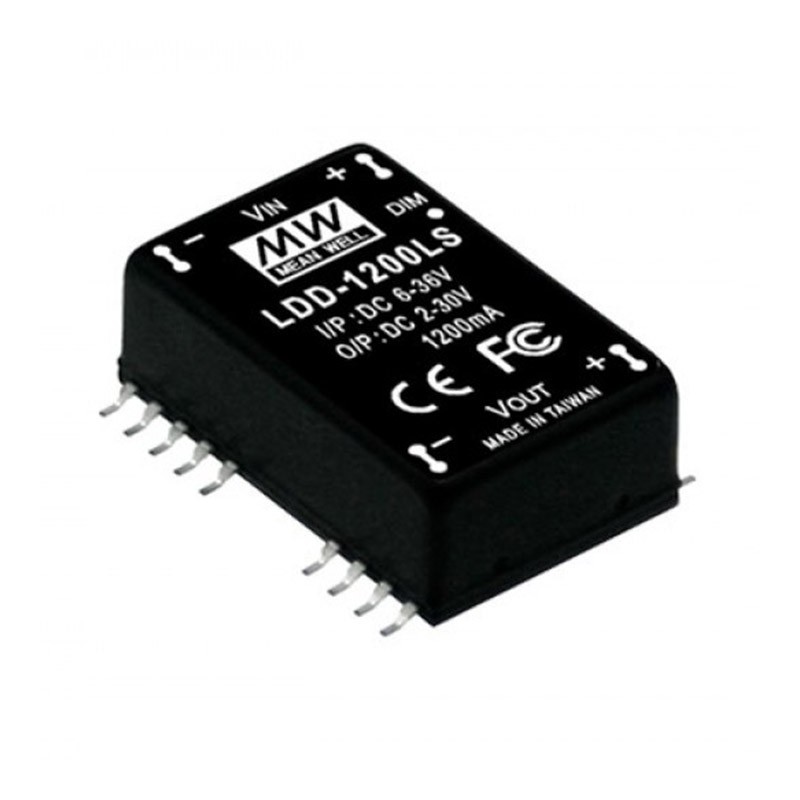

LDD-1200LS
MEANWELL
1
Available Ship on today
DC-DC Step down LED driver Constant Current (CC), Input 6-36VDC, Output 1.2A / 2-30VDC, PCB mount SMD, PWM + analog dimming and remote ON/OFF
LED DRIVERS > LDD
* Brand new product in its original packaging covered by the warranties and certifications provided by MEANWELL
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
Name | LDD-1200LS |
---|---|
Long Description | LED driver input and continuous output in a steady stream. Specially designed for applications of solar street lights powered from battery. Format in box with connection for surface mounting (SMD).IP67. Input rangeSix-36Vcc. Output in constant current1200mA. Range of output voltage with current mode constantTwoto 30vdcaccording to demand load. The output voltage must be at least 3V lower than the input voltage. Version for mounting on SMD. Power:36W. Efficiency typical:95%. Regulation0% to 100% of the output intensity with a PWM signal or analog 0.5 to 2.5 V. Consumption without load 1mA in power-off mode. Operating temperature range of caseTcfrom-40ºCup+71ºC. Dimensions (Length x Width x Height):31,8 x 20,3 x 10,9 mm 3 years of warranty. Manufacturer: MEAN WELL. The series LDD-L are current regulators designed to feed the leds from a battery or dc voltage. These teams can be dimmed with a PWM signal or an analog signal. This series are voltage reducers (designed for buck or step-down) that reduce the input voltage to an output voltage lower while keeping the output current constant. It is very important to consider that the supply voltage of the leds must be at least 3V lower than the supply voltage. |
Country of Origin | Taiwan |
Manufacturer | MEAN WELL |
Product type | LED Driver |
Format | Box |
Subformato | Encapsulated |
Applications | Lighting, Solar |
Series | LDD-1000-1500LS |
State | Recommended Model |
Warranty (Years) | 3,00 |
Height (mm) | 10.90 |
Width (mm) | 20.30 |
Long/Background | 31.80 |
Range DC Input | 6, 6,5, 7, 8, 8,3, 9, 9,2, 10, 10,5, 10,8, 12, 13,5, 14, 14,4, 15, 16,2, 16,5, 16,8, 18, 19, 22,5, 24, 25,2, 28, 28,8, 30, 31,2, 32, 32,4, 33,6, 35, 36 |
Input connector | SMD |
Output current mA | One thousand two hundred |
Power (W) | 36,00 |
Peak Power (W) | Thirty six |
Dimming | Analog, Signal PWM 10V |
Output connector | SMD |
Approvals | EC |
Title: | Size: | Type: |
---|---|---|
PDF CATALOG MEANWELL EN.pdf | 10 Mbytes |
