SD-350C-24
MEANWELL
1
Available Ship on today

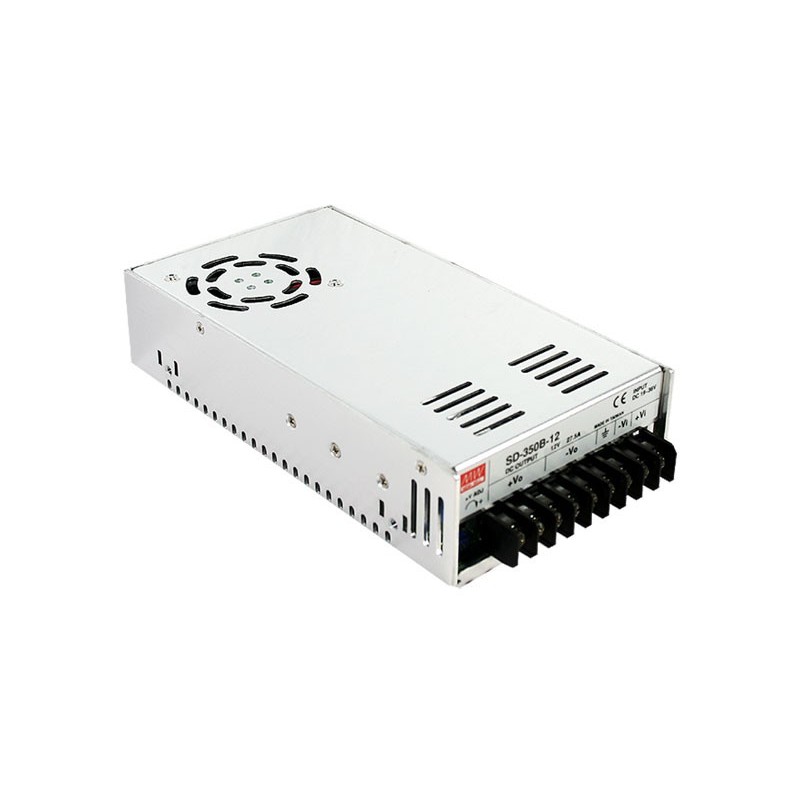

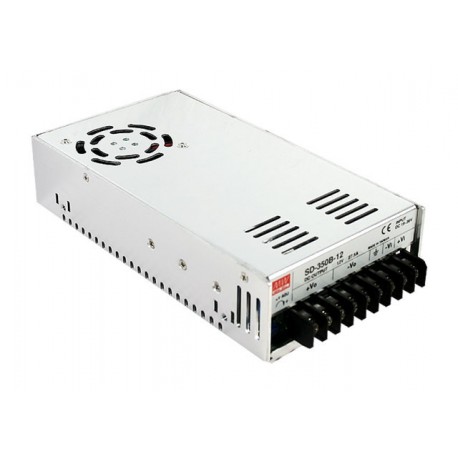

DC-DC Enclosed converter, Input 36-72VDC, Output +24VDC / 14,6A, Forced air cooling
DC/DC BOXES AND OPEN > SD
* Brand new product in its original packaging covered by the warranties and certifications provided by MEANWELL
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
Name | SD-350C-24 |
---|---|
Long Description | Dc/DC converter is a regulated isolated output. Format box, with a fan. Input range36-72Vcc. Output voltage24vdc. Adjustable by potentiometer (23-30vdc). Output intensity:14,6 A. Power:350,4 W. Isolation input-output 1500Vca. Efficiency of the81%. Operating temperature from-20up+60 ° C(see the curve derived in the technical data sheet). Dimensions (Length x Width x Height):215 x 115 x 50mm. 2 years of warranty. Manufacturer: MEAN WELL. Converter ideal for all types of applications. It is designed to give an isolated output, and stabilized. It allows us to give an output reliable when we have an entry from a battery or from any other computer that can easily swing in addition to achieving isolation between input and output. |
Country of Origin | China |
Manufacturer | MEAN WELL |
Product type | Dc/DC converters |
Format | Box |
Subformato | IP20 |
Applications | Industrial, Telecommunications |
Series | SD-350 |
State | Recommended Model |
Warranty (Years) | 2,00 |
Height (mm) | 50.00 |
Width (mm) | 115.00 |
Long/Background | 215.00 |
Input range | 2:1 |
Range DC Input | 36, 36,4, 38,4, 40, 43, 46,8, 50, 50,4, 52, 56, 60, 62,4, 64,4, 67,2, 72 |
DC input Min | 36,00 |
DC input Max | 72,00 |
Input connector | Cable |
Output voltage | 24,00 |
Power (W) | 350,40 |
Peak Power (W) | 350.4 |
Output connector | Cable |
Isolation (V) | 1.500,00 |
Approvals | EC |
