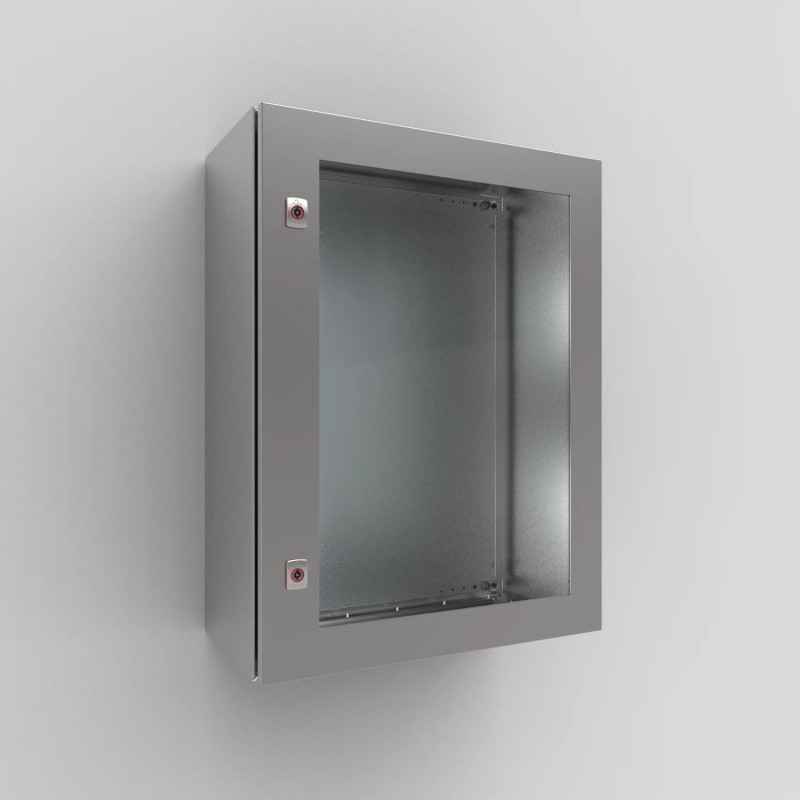

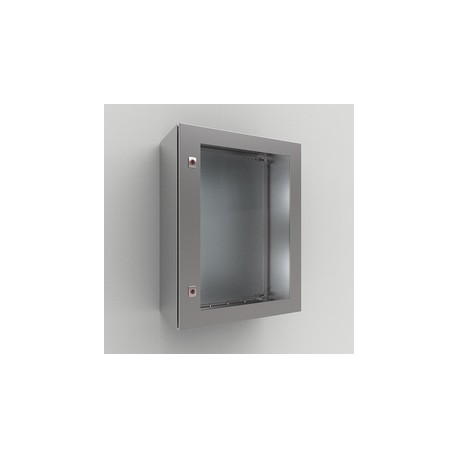

ADCS04040 ELDON Glazed door, 400x400 View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

ADCS04040 ELDON Glazed door, 400x400

ADCS04040

ADCS04040

ELDON

Available

Ship on today

Glazed door, 400x400

More details


Control Cabinets Switch Boxes Distribution Enclosures

Wall Mounting Enclosures - ELDON

Wall Mounting Enclosures Accessories - ELDON

* Brand new produt in its original packing covered by the warranties and certifications provided by ELDON

QuantityPrice
1+$109.28
2+$106.33
3+$104.87
4+$103.94
6+$102.96
*This price is per unit and is the net value (not including taxes if applicable).

How it Works

How does this work?

1 Add the products of your choice to the shopping cart
2 Enter your contact details and submit your request
3 You will be notified by email with a quotation
4 From the quotation simply finish your order and you will receive the products

There are several options for payment
- Credit card
- Wire Transfer
- PayPal


Related products

More info



Sometimes it's important that you see the inside.

Characteristics
Height400 mm
Width400 mm
Mounting Plate
Height
259 mm
Mounting Plate
Width
243 mm
No Locks1
Viewing Area
Height
259
Viewing Area
Width
243

Description:

To replace the standard door, provides a clear view of the components installed inside the enclosure. The lock(s) are interchangeable with all Eldon's standard lock(s).

Material:

1.5 mm AISI 304 stainless steel, 2 mm for enclosures with a height or width of 600 mm or greater and 4 mm clear safety glass.

Finish:

240s pre-grained stainless steel (average 0.5 micron).

Protection:

Complies with IP 55 | TYPE 12, 13.

Pack quantity:

1 door.

Datasheet - PDF

Title:Language:Size:Type:
Datasheet 1: ADCS04040English257 KbytesDatasheet 1: ADCS04040
Complete catalogue 1: ADCS04040English4 MbytesDatasheet 1: ADCS04040
