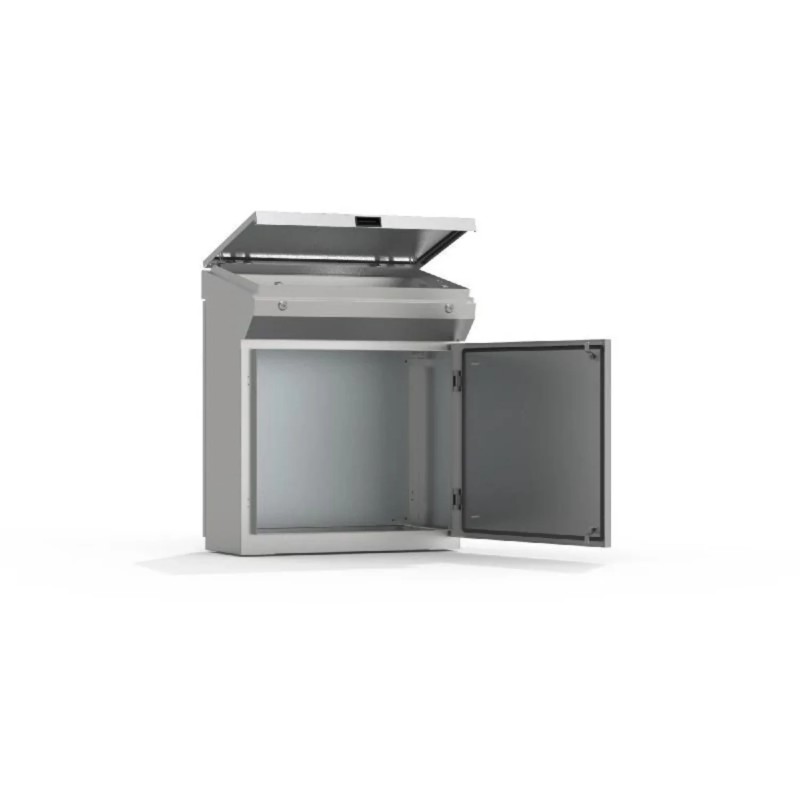

Console, 985x1000x400 - ELDON - MPGS10 View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

Console, 985x1000x400 - ELDON - MPGS10





Ship on today

Console, 985x1000x400

More details

Control Cabinets Switch Boxes Distribution Enclosures

Console Systems - ELDON

Stainless steel, console system. MPCS - ELDON

* Brand new produt in its original packing covered by the warranties and certifications provided by ELDON

Price: $2,067.76
*This price is per unit and is the net value (not including taxes if applicable).
Up to 35% discount for registered clients.

Request a quote
How it Works

How does the quotation request work?

1 Add the products of your choice to the shopping cart
2 Enter your contact details and submit your request
3 You will be notified by email with our price proposals
4 You can directly process the order for the quotation

There are several options for payment
- Credit card
- Wire Transfer
- PayPal

More info

The MPGS simple but effective one-piece console is available in five sizes. The top desk panel is held open by a self-engage/self-release mechanical panel stay and combines with the removable rear panel and front door, to ensure convenient access. The MPGS range provides high corrosion resistance and is the ideal solution for harsh environments. A range of 19" accessories adds further versatility.

NoteStainless steel
Height985 mm
Width1000 mm
Depth400 mm
Mounting Plate
790 mm
Mounting Plate
899 mm
Max. enclosure
useful depth
Usable depth357,5
Part No. AISI 304MPGS10
Part No. AISI 316LMPGS10-316 *


AISI 304 pre-grained stainless steel / AISI 316L (on request). Body and door: 2 mm. Rear panel: 1.5 mm. Bottom plates: 1.5 mm. Mounting plate: 2.5 mm galvanized steel.


Folded and seam welded. Console construction counts with a base that provides a distance between the fl oor and the lower part of the door/s acting as an integrated plinth.

Doors and panels:

Single folded surface mounted with hinges allowing left and right-hand opening to base door. Angle 12° from horizontal. Concealed hinges on top edge allow 90° opening. Panel held open by self engage/self release mechanical panel stay. Double door on 1200 wide base units.

Mounting plate:

Standard mounting plate in base unit.


Double-bit 3 mm locks for top panel. For base, two double-bit 3 mm locks. Other options available. See wall mounting section.

Cable inlet:

Bottom opening for cable access. Bottom plate for cable glanding supplied as standard.


M8 threaded studs on body, door, top panel and rear panel.


240s pre grained stainless steel (average 0,5 micron).


Single door: IP 66 | TYPE 4X, 12, 13 | IK 10. Double door: IP 55 | TYPE 12, 13 | IK 10.


Mounting plate and suitable nuts and washers for earthing. The console is delivered on a wooden pallet.
