Product name

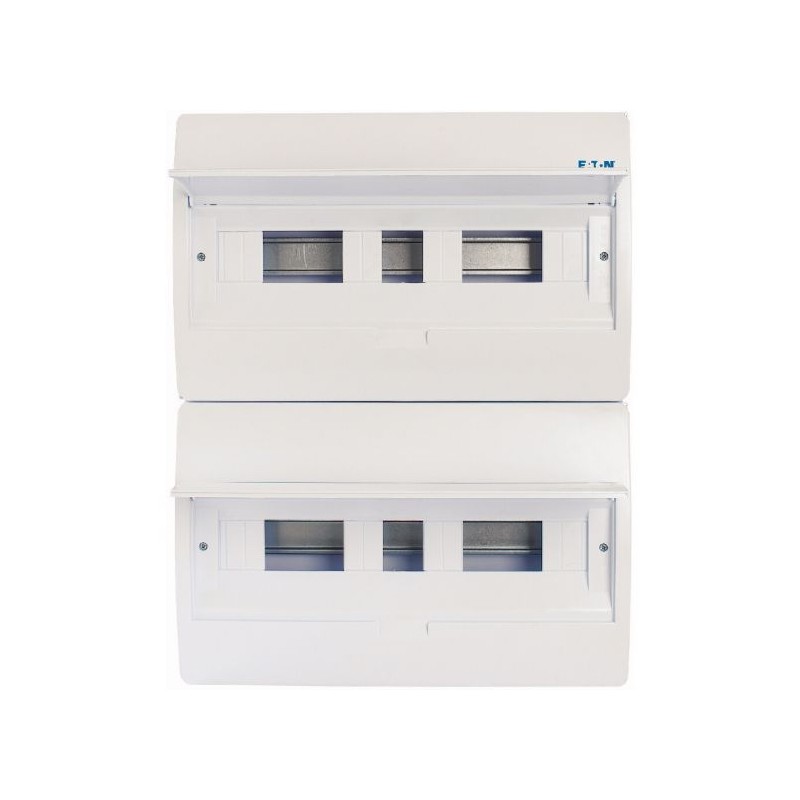

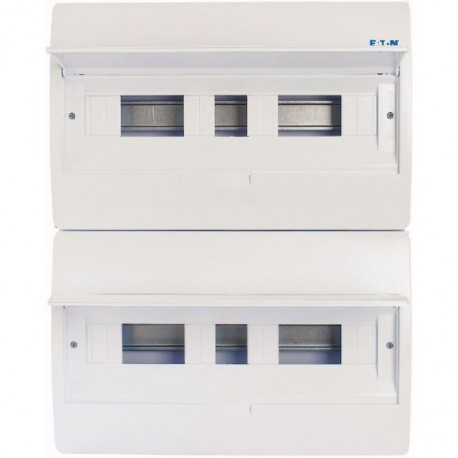

Eaton xComfort ECO LV systems Final Distribution Boards
Product Length/Depth
98 millimetre
Product height
522 millimetre
Product width
410 millimetre
Product weight
2.66 kilogram
Product Tradename
xComfort ECO
Product Sub Type
Final Distribution Boards
Type
Basic deviceECO distribution boardInstallation distribution board
Application
Indoor (installation site)
Color
Signal white (RAL 9003)
White
Technical Data - Electrical
Frequency rating of contacts
50 Hz
Technical Data - Mechanical
Enclosure material
Plastic
Width in number of modular spacings
18
Mounting method
Surface mounted (plaster)
DIN-rail
Surface mounting
Degree of protection
IP40
IK05 (impact resistance)
Number of module space units per row
18
Terminal type
Screw terminals
PE and N terminal number and cross section
PE: 2 x (18 mm² x 10 mm²)
N: 2 x (18 mm² x 10 mm²)
Cover/door type
Door
Single
Module rack type
Single-rail
Protective shrouding material
Plastic
Temperature-rise verification as per IEC 60890
Heat diss. ambient 35°C delta T:20°C wall mount individ. encl. top (IEC 60890)
29 W
Heat diss. ambient 35°C delta T:35°C wall mount individ. encl. top (IEC 60890)
57 W
Design verification as per IEC/EN 61439 - technical data
Ambient operating temperature details
-20 °C - 70 °C
Design verification as per IEC/EN 61439
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
850 °C; meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Not relevant to indoor installations.
10.2.5 Lifting
Does not apply to enclosures without lifting aids.
10.2.6 Mechanical impact
IK05
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
IP40
10.4 Clearances and creepage distances
Is the panel builder's responsibility.
10.5 Protection against electric shock
Protection class 2, therefore not applicable.
10.6 Incorporation of switching devices and components
Is the panel builder's responsibility.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Ui = 400 V AC
10.9.3 Impulse withstand voltage
3.75 kV
10.9.4 Testing of enclosures made of insulating material
Meets the product standard's requirements.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility.
10.13 Mechanical function
Meets the product standard's requirements.
Fitted with:
Device support rails
Basic device
Neutral-/protective conductor terminal
Protection class
II (totally insulated)
Special features
IP40Protection Class IIPlastic housing white (RAL 9003)
Used with
Installation distribution board
ECO distribution board
Basic device
