- Abnehmbare Zugfederklemmen für mühelose Installation
- Vordefinierte, zertifizierte Funktionsblöcke für die einfache und schnelle Programmierung
- LED-Anzeige und Status-LEDs zur Diagnose
- Systemstatus über DeviceNet für eine mühelose Problembehebung und vorbeugende Wartung
- Problemlos erweiterbar durch Hinzunahme von DeviceNet Safety-Geräten
Spezifikationen & Bestellinfo
Ordering information
Appearance | Appearance description | Interface | Order code |
---|

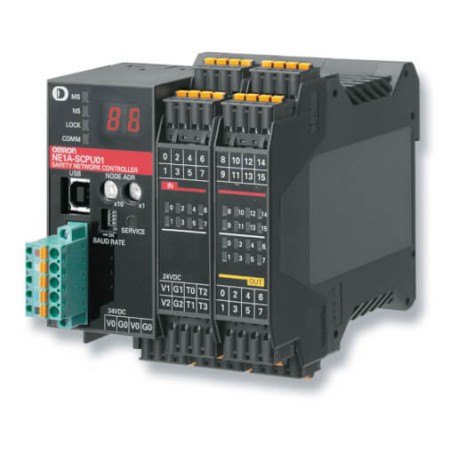

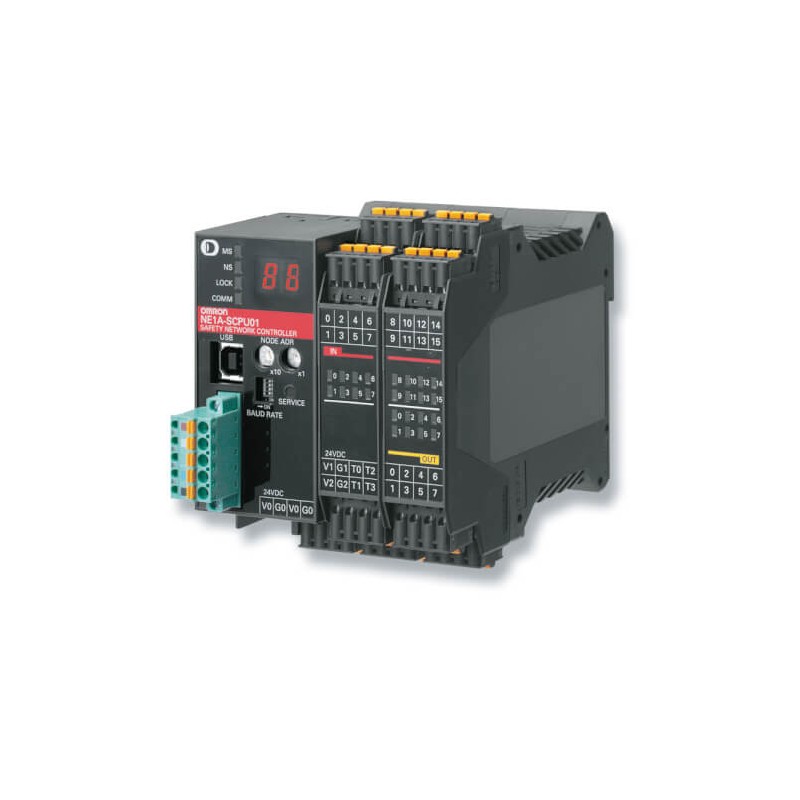

Safety network controller | 16 PNP inputs 8 PNP outputs 4 test outputs 254 function block programming removable cage clamp terminals | USB and DeviceNet safety | NE1A-SCPU01-V1 |
Ethernet/IP and DeviceNet safety | NE1A-SCPU01-EIP |
40 PNP inputs 8 PNP outputs 8 test outputs 254 function block programming removable cage clamp terminals | USB and DeviceNet safety | NE1A-SCPU02 |
Ethernet/IP and DeviceNet safety | NE1A-SCPU02-EIP |
Software
Appearance | Appearance description | Order code |
---|
Safety network configurator | Installation disk (CD-ROM) IBM PC/AT compatible Windows 2000, Windows XP, Windows 7 | WS02-CFSC1-E |
Accessories
Appearance | Appearance description | Order code |
---|
Network router | Ethernet/IP - DeviceNet router | NE1A-EDR01 |
Programming console | CF-Card slot to store configuration USB-Interface for maintenance Touchscreen for easy troubleshooting | NE1A-HDY |
Specifications
General specifications
DeviceNet communications power supply voltage | 11 to 25 VDC (supplied from communications connector) |
---|
Unit power supply voltage | 20.4 to 26.4 VDC (24 VDC -15% +10%) |
I/O power supply voltage |
Consumption current | Communications power supply | 24 VDC, 15 mA |
Internal circuit power supply | 24 VDC, 230 mA |
Mounting method | 35-mm DIN track |
Ambient operating temperature | -10 to 55°C |
Ambient storage temperature | -40 to 70°C |
Degree of protection | IP20 (IEC 60529) |
Safety input specifications
Input type | Sinking inputs (PNP) |
---|
ON voltage | 11 VDC min. between each input terminal and G1 |
OFF voltage | 5 VDC max. between each input terminal and G1 |
OFF current | 1 mA max. |
Input current | 4.5 mA |
Safety output specifications
Output type | Sourcing outputs (PNP) |
---|
Rated output current | 0.5 A max. per output |
Residual voltage | 1.2 V max. between each output terminal and V2 |
Test output specifications
Output type | Sourcing outputs (PNP) |
---|
Rated output current | 0.7 A max. per output (see note.) |
Residual voltage | 1.2 V max. between each output terminal and V1 |
