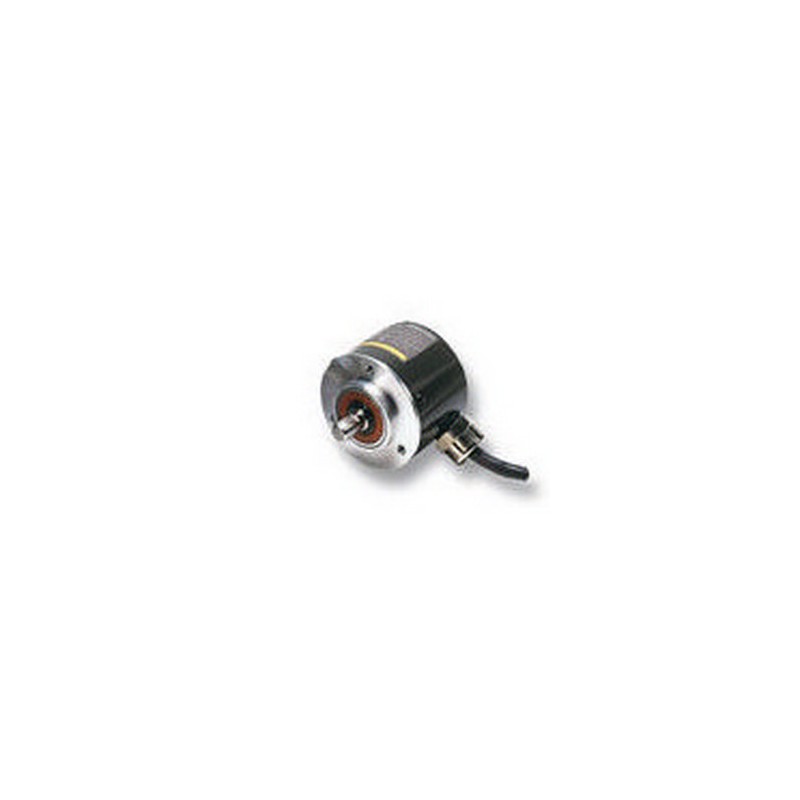

E6C3-CWZ5GH 300P/R 1M 128191 OMRON Encoder, Inkremental ABZ 300ppr Push-Pull 12-24Vcc Kabel 1m

E6C3-CWZ5GH 300P/R 1M

128191

OMRON

Verfügbar

Schiff am heute

Encoder, Inkremental ABZ 300ppr Push-Pull 12-24Vcc Kabel 1m

Mehr Infos


Drehgeber - OMRON

Drehgeber - E6C2-C/E6C3-C, E6F-C - OMRON

* Neues Produkt in der Originalverpackung mit allen Garantien und Zertifizierungen von OMRON

MengePreis
1+$259.56
2+$253.42
3+$250.38
4+$249.53
*Dieser Preis ist pro Einheit und ist der Nettowert (ohne Steuern, falls zutreffend).

Es gibt verschiedene Möglichkeiten die Zahlung abzuwickeln
- Kreditkarte
- Banküberweisung
- PayPal


Verwandte Produkte

Mehr Infos



Rotary Encoder (Incremental/Absolute)
E6C3
An Encoder That Offers
Durability and Convenience
• IP65f drip-proof, oil-proof construction achieved with seal bearing.
• 8-mm-dia stainless steel shaft withstands a shaft loading of 80 N and 50 N respectively in the radial and thrust directions.
• Absolute Rotary Encoders have a metal slit plate to ensure high resistance to shock.
• Combining Absolute Rotary Encoders with a Pro- grammable Controller or Cam Positioner allows ideal angle control.
• Bears CE markings (EMC Directives) and conforms to EN/IEC standards, making it suitable for the Euro- pean market.
Ordering Information
■ Incremental Rotary Encoders
Supply voltage Output configuration Resolution (P/R) Connection method Model
12 to 24 VDC Complementary output 100, 200 Pre-wired (1 m) (See note 2.) E6C3-CWZ5GH
300, 360, 500
600, 720, 800
1,000, 1,024, 1,200
1,500, 1,800, 2,000
2,048, 2,500, 3,600
5 to 12 VDC Voltage output 100, 200 E6C3-CWZ3EH
300, 360, 500
600, 720, 800
1,000, 1,024, 1,200
1,500, 1,800, 2,000
2,048, 2,500, 3,600
5 to 12 VDC Line driver output 100, 200 E6C3-CWZ3XH
300, 360, 500
600, 720, 800
1,000, 1,024, 1,200
1,500, 1,800, 2,000
2,048, 2,500, 3,600
Note 1. When ordering, specify the resolution in addition to the model numbers. (Example: E6C3-CWZ5GH 300P/R 1M)
2. Models with 2-m cables are also available as standard products. Specify the cable length at the end of the model number. (Example: E6C3- CWZ5GH 300P/R 2M)

Datasheet - PDF

Title:Language:Size:Type:
pdf1-mostradoOMRON - E6C3-CWZ5GH 300P/R 1M - 128191English1 Mbytespdf1-mostradoOMRON - E6C3-CWZ5GH 300P/R 1M - 128191
