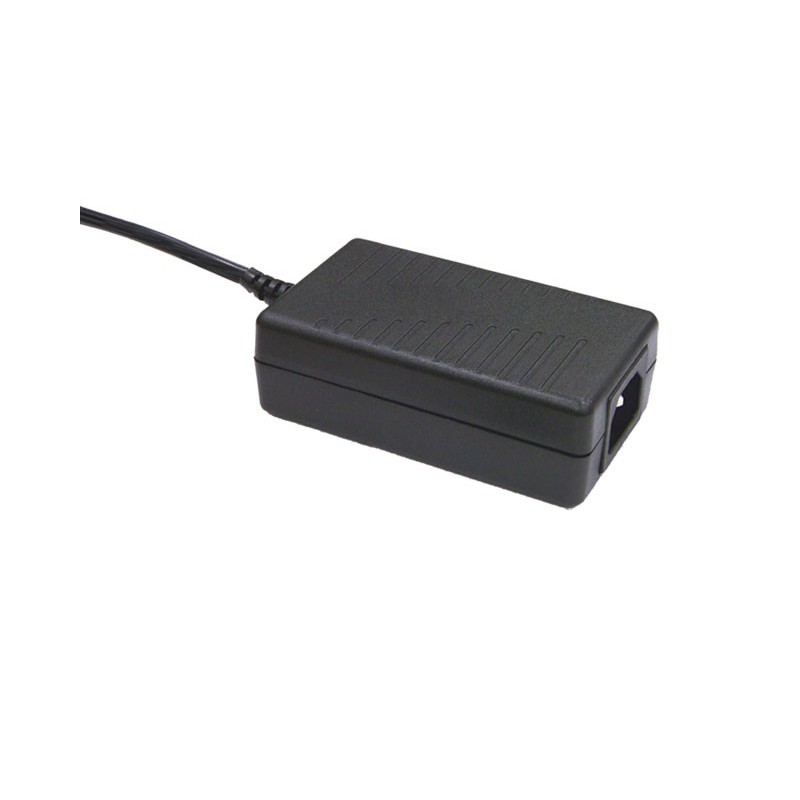

GS15A-8P1J GS15A8P1J MEANWELL Eingang: 90-264 AC / 135-370 DC, Ausgabe: 1, V1: 48, A1: 0,31 Vergrößern
Die Bilder sind nur orientativ. Bitte prüfen Sie das Artikelstammdatenblatt.

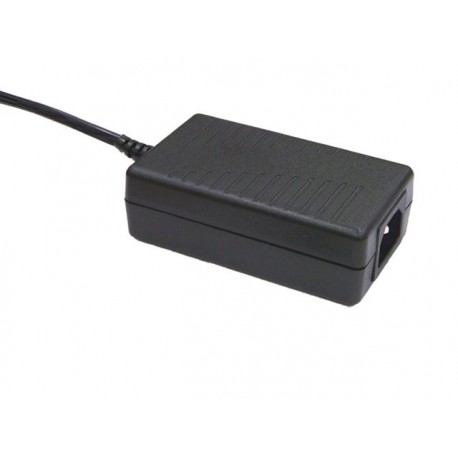

GS15A-8P1J GS15A8P1J MEANWELL Eingang: 90-264 AC / 135-370 DC, Ausgabe: 1, V1: 48, A1: 0,31

GS15A-8P1J

GS15A8P1J

MEANWELL

Verfügbar

Schiff am heute

Eingang: 90-264 AC / 135-370 DC, Ausgabe: 1, V1: 48, A1: 0,31

Mehr Infos


Spannungsversorgungen

ADAPTER

GS

* Neues Produkt in der Originalverpackung mit allen Garantien und Zertifizierungen von MEANWELL

MengePreis
1+$18.47
16+$16.53
32+$16.12
47+$15.93
63+$15.80
*Dieser Preis ist pro Einheit und ist der Nettowert (ohne Steuern, falls zutreffend).

Wie es funktioniert

Wie funktioniert das?

1 Fügen Sie die Produkte Ihrer Wahl in den Warenkorb
2 Geben Sie Ihre Kontaktdaten und senden Sie Ihre Anfrage
3 Sie werden per E-Mail mit unseren Preisvorschläge mitzuteilen
4 Beenden Sie einfach Ihre Bestellung und Sie erhalten die Produkte

Es gibt verschiedene Möglichkeiten die Zahlung abzuwickeln
- Kreditkarte
- Banküberweisung
- PayPal


Verwandte Produkte

Mehr Infos



15W AC-DCIndustrialAdaptorGS15Aseries 15W AC-DCIndustrialAdaptorGS15Aseries
15W AC-DCIndustrialAdaptorGS15Aseries Features : Features :
Features : UniversalAC input / Full range UniversalAC input / Full range
UniversalAC input / Full range 3 pole AC inlet IEC320-C14 3 pole AC inlet IEC320-C14
3 pole AC inlet IEC320-C14 No load powerconsumption <0.075W No load powerconsumption <0.075W
No load powerconsumption <0.075W Energyefficiency Level Energyefficiency Level
Energyefficiency Level Comply with EISA 2007/DoE, EU ErP and meetCoC version5 Comply with EISA 2007/DoE, EU ErP and meetCoC version5
Comply with EISA 2007/DoE, EU ErP and meetCoC version5 Class I power ( with earthpin) Class I power ( with earthpin)
Class I power ( with earthpin) Protections: Short circuit / Overload / Over voltage Protections: Short circuit / Overload / Over voltage
Protections: Short circuit / Overload / Over voltage Pass LPS Pass LPS
Pass LPS Fully enclosed plastic case Fully enclosed plastic case
Fully enclosed plastic case 2 years warranty 2 years warranty
2 years warranty SPECIFICATION SPECIFICATION
SPECIFICATION ORDER NO. ORDER NO.
ORDER NO. SAFETY MODEL NO. SAFETY MODEL NO.
SAFETY MODEL NO. GS15A-1P1J GS15A-11P1J GS15A-2P1J GS15A-3P1J GS15A-4P1J GS15A-5P1J GS15A-6P1J GS15A-8P1J GS15A-1P1J GS15A-11P1J GS15A-2P1J GS15A-3P1J GS15A-4P1J GS15A-5P1J GS15A-6P1J GS15A-8P1J
GS15A-1P1J GS15A-11P1J GS15A-2P1J GS15A-3P1J GS15A-4P1J GS15A-5P1J GS15A-6P1J GS15A-8P1J GS15A-1GS15A-1-1GS15A-2GS15A-3GS15A-4GS15A-5GS15A-6GS15A-8 GS15A-1GS15A-1-1GS15A-2GS15A-3GS15A-4GS15A-5GS15A-6GS15A-8
GS15A-1GS15A-1-1GS15A-2GS15A-3GS15A-4GS15A-5GS15A-6GS15A-8 DC VOLTAGENote.25V 7.5V 9V 12V15V18V24V48V DC VOLTAGENote.25V 7.5V 9V 12V15V18V24V48V
DC VOLTAGENote.25V 7.5V 9V 12V15V18V24V48VOUTPUT OUTPUT
OUTPUT RATED CURRENT CURRENT RANGE RATED POWER RATED CURRENT CURRENT RANGE RATED POWER
RATED CURRENT CURRENT RANGE RATED POWER 2.40A 1.60A 1.66A 1.25A 1.00A 0.83A 0.625A 0.31A 2.40A 1.60A 1.66A 1.25A 1.00A 0.83A 0.625A 0.31A
2.40A 1.60A 1.66A 1.25A 1.00A 0.83A 0.625A 0.31A 0 ~ 2.40A 0 ~ 1.60A 0 ~1.66A0 ~ 1.25A 0 ~ 1.00A 0 ~ 0.83A 0 ~ 0.625A 0 ~ 0.31A 0 ~ 2.40A 0 ~ 1.60A 0 ~1.66A0 ~ 1.25A 0 ~ 1.00A 0 ~ 0.83A 0 ~ 0.625A 0 ~ 0.31A
0 ~ 2.40A 0 ~ 1.60A 0 ~1.66A0 ~ 1.25A 0 ~ 1.00A 0 ~ 0.83A 0 ~ 0.625A 0 ~ 0.31A 12W 12W 15W 15W 15W 15W 15W 15W 12W 12W 15W 15W 15W 15W 15W 15W
12W 12W 15W 15W 15W 15W 15W 15W RIPPLE & NOISE (max.) Note.350mVp-p80mVp-p80mVp-p80mVp-p100mVp-p120mVp-p150mVp-p240mVp-p RIPPLE & NOISE (max.) Note.350mVp-p80mVp-p80mVp-p80mVp-p100mVp-p120mVp-p150mVp-p240mVp-p
RIPPLE & NOISE (max.) Note.350mVp-p80mVp-p80mVp-p80mVp-p100mVp-p120mVp-p150mVp-p240mVp-p VOLTAGE TOLERANCE Note.45.0% VOLTAGE TOLERANCE Note.45.0%
VOLTAGE TOLERANCE Note.45.0% 5.0% 5.0%
5.0% 5.0% 5.0%
5.0% 3.0% 3.0%
3.0% 3.0% 3.0%
3.0% 3.0% 3.0%
3.0% 2.0%2.0% 2.0%2.0%
2.0%2.0% LINE REGULATIONNote.5 0.5%0.5%0.5%0.5%0.5%0.5%0.5%0.5% LINE REGULATIONNote.5 0.5%0.5%0.5%0.5%0.5%0.5%0.5%0.5%
LINE REGULATIONNote.5 0.5%0.5%0.5%0.5%0.5%0.5%0.5%0.5% LOAD REGULATIONNote.6 5.0% LOAD REGULATIONNote.6 5.0%
LOAD REGULATIONNote.6 5.0% 5.0% 5.0%
5.0% 5.0% 5.0%
5.0% 3.0% 3.0%
3.0% 3.0% 3.0%
3.0% 3.0% 3.0%
3.0% 2.0% 2.0%
2.0% 2.0% 2.0%
2.0% INPUT INPUT
INPUTPROTECTION PROTECTION
PROTECTION ENVIRONMENT ENVIRONMENT
ENVIRONMENTSAFETY & EMC SAFETY & EMC
SAFETY & EMC (Note. 7) (Note. 7)
(Note. 7)OTHERS CONNECTOR OTHERS CONNECTOR
OTHERS CONNECTOR SETUP, RISE, HOLD UP TIME VOLTAGE RANGE FREQUENCY RANGE EFFICIENCY (Typ.) SETUP, RISE, HOLD UP TIME VOLTAGE RANGE FREQUENCY RANGE EFFICIENCY (Typ.)
SETUP, RISE, HOLD UP TIME VOLTAGE RANGE FREQUENCY RANGE EFFICIENCY (Typ.) AC CURRENT AC CURRENT
AC CURRENT INRUSH CURRENT (max.) LEAKAGE CURRENT(max.) INRUSH CURRENT (max.) LEAKAGE CURRENT(max.)
INRUSH CURRENT (max.) LEAKAGE CURRENT(max.)OVERLOAD OVERLOAD
OVERLOADOVER VOLTAGE WORKING TEMP. OVER VOLTAGE WORKING TEMP.
OVER VOLTAGE WORKING TEMP. WORKING HUMIDITY STORAGE TEMP., HUMIDITY TEMP. COEFFICIENT VIBRATION WORKING HUMIDITY STORAGE TEMP., HUMIDITY TEMP. COEFFICIENT VIBRATION
WORKING HUMIDITY STORAGE TEMP., HUMIDITY TEMP. COEFFICIENT VIBRATION SAFETY STANDARDS WITHSTAND VOLTAGE ISOLATION RESISTANCE SAFETY STANDARDS WITHSTAND VOLTAGE ISOLATION RESISTANCE
SAFETY STANDARDS WITHSTAND VOLTAGE ISOLATION RESISTANCE EMC EMISSION EMC IMMUNITY MTBF DIMENSION PACKING EMC EMISSION EMC IMMUNITY MTBF DIMENSION PACKING
EMC EMISSION EMC IMMUNITY MTBF DIMENSION PACKING PLUG PLUG
PLUG CABLE CABLE
CABLE 3000ms, 50ms, 16msat full load 3000ms, 50ms, 16msat full load
3000ms, 50ms, 16msat full load 90 ~ 264VAC 135 ~ 370VDC 90 ~ 264VAC 135 ~ 370VDC
90 ~ 264VAC 135 ~ 370VDC 47 ~ 63Hz 47 ~ 63Hz
47 ~ 63Hz 80%82.5%85%85%85%85%85.5%87% 80%82.5%85%85%85%85%85.5%87%
80%82.5%85%85%85%85%85.5%87% 0.5A / 100VAC 0.5A / 100VAC
0.5A / 100VAC 50A /230VAC 50A /230VAC
50A /230VAC 0.25mA / 240VAC 0.25mA / 240VAC
0.25mA / 240VAC 105 ~ 250%rated output power 105 ~ 250%rated output power
105 ~ 250%rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed Protection type : Hiccup mode, recovers automatically after fault condition is removed
Protection type : Hiccup mode, recovers automatically after fault condition is removed >120% rated output voltage >120% rated output voltage
>120% rated output voltage Protection type : Clamp by zener diode Protection type : Clamp by zener diode
Protection type : Clamp by zener diode 0 ~ +50 (Refer to "Derating Curve") 0 ~ +50 (Refer to "Derating Curve")
0 ~ +50 (Refer to "Derating Curve") 20% ~ 90% RH non-condensing 20% ~ 90% RH non-condensing
20% ~ 90% RH non-condensing -20 ~ +85, 10 ~ 95% RH -20 ~ +85, 10 ~ 95% RH
-20 ~ +85, 10 ~ 95% RH 0.03%/(0 ~ 40) 0.03%/(0 ~ 40)
0.03%/(0 ~ 40) 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes UL60950-1,CSA C22.2, TUV EN60950-1 approved UL60950-1,CSA C22.2, TUV EN60950-1 approved
UL60950-1,CSA C22.2, TUV EN60950-1 approved I/P-O/P:3KVAC , I/P-FG:1.5KVAC I/P-O/P:3KVAC , I/P-FG:1.5KVAC
I/P-O/P:3KVAC , I/P-FG:1.5KVAC I/P-O/P, I/P-FG:100M Ohms / 500VDC / 25/ 70% RH I/P-O/P, I/P-FG:100M Ohms / 500VDC / 25/ 70% RH
I/P-O/P, I/P-FG:100M Ohms / 500VDC / 25/ 70% RH Compliance to EN55022 Class B, EN61000-3-2,3, FCC part 15 Class B Compliance to EN61000-4-2,3,4,5,6,11, light industry level, criteria A Compliance to EN55022 Class B, EN61000-3-2,3, FCC part 15 Class B Compliance to EN61000-4-2,3,4,5,6,11, light industry level, criteria A
Compliance to EN55022 Class B, EN61000-3-2,3, FCC part 15 Class B Compliance to EN61000-4-2,3,4,5,6,11, light industry level, criteria A 500Khrs min.MIL-HDBK-217F(25) 500Khrs min.MIL-HDBK-217F(25)
500Khrs min.MIL-HDBK-217F(25) 100*58.5*32.8mm (L*W*H) 100*58.5*32.8mm (L*W*H)
100*58.5*32.8mm (L*W*H) 190g ; 90pcs / 18Kg / CARTON 190g ; 90pcs / 18Kg / CARTON
190g ; 90pcs / 18Kg / CARTON See page 2; Other type available by customer requested See page 2; Other type available by customer requested
See page 2; Other type available by customer requested See page 2; Other type available by customer requested See page 2; Other type available by customer requested
See page 2; Other type available by customer requested NOTE NOTE
NOTE 1.All parameters are specified at 230VAC input, rated load, 25 70% RH ambient. 1.All parameters are specified at 230VAC input, rated load, 25 70% RH ambient.
1.All parameters are specified at 230VAC input, rated load, 25 70% RH ambient. 2.DC voltage:The output voltageset at point measure by plug terminal& 50% load. 2.DC voltage:The output voltageset at point measure by plug terminal& 50% load.
2.DC voltage:The output voltageset at point measure by plug terminal& 50% load. 3.Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1uf & 47uf capacitor. 3.Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1uf & 47uf capacitor.
3.Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1uf & 47uf capacitor. 4.Tolerance: includes set up tolerance, line regulation, load regulation. 4.Tolerance: includes set up tolerance, line regulation, load regulation.
4.Tolerance: includes set up tolerance, line regulation, load regulation. 5.Line regulation is measured from low line to high line at rated load. 5.Line regulation is measured from low line to high line at rated load.
5.Line regulation is measured from low line to high line at rated load. 6.Loadregulation is measured from 0% to 100% ratedload. 6.Loadregulation is measured from 0% to 100% ratedload.
6.Loadregulation is measured from 0% to 100% ratedload. 7.The power supply is considered as an independent unit, but the final equipment still need to re-confirm that the whole system complies with the 7.The power supply is considered as an independent unit, but the final equipment still need to re-confirm that the whole system complies with the
7.The power supply is considered as an independent unit, but the final equipment still need to re-confirm that the whole system complies with the EMC directives. For guidance on how to performthese EMC tests, please refer to "EMI testingof component powersupplies." EMC directives. For guidance on how to performthese EMC tests, please refer to "EMI testingof component powersupplies."
EMC directives. For guidance on how to performthese EMC tests, please refer to "EMI testingof component powersupplies." (asavailable on http://www.meanwell.com) (asavailable on http://www.meanwell.com)
(asavailable on http://www.meanwell.com) File Name:GS15A-SPEC2015-10-02 File Name:GS15A-SPEC2015-10-02
File Name:GS15A-SPEC2015-10-02
