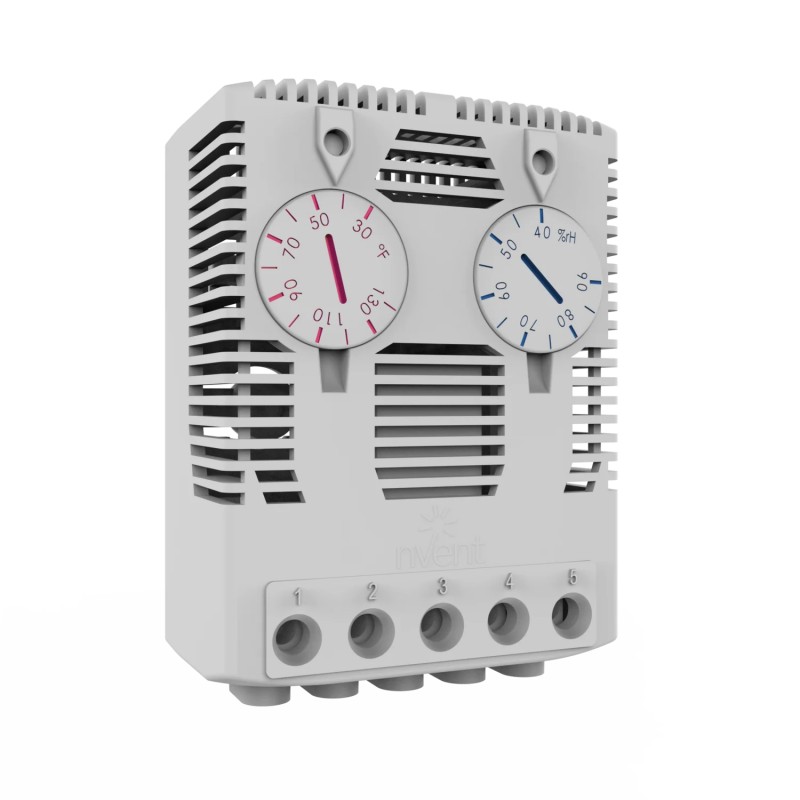

ETF300120 nVent HOFFMAN Thermostat/Hygrostat ETF300120

Beschreibung:

Elektronisches Thermostat- und Hygrostatregler zur Überwachung der relativen Luftfeuchtigkeit und Temperatur unabhängig von einander. Er regelt Heizungen und Filterlüfter zur Vermeidung von Kondensation und Korrosion. Montage-Clip für 35mm DIN-Schiene (EN 60715).

Einstellbereich:

0 °C bis +60 °C, und 40% bis 90% relative Luftfeuchtigkeit.

Material:

Plastik gemäß UL94 V-0.

Schalterleistung:

240 V AC, 8(3) A. 120 V AC, 8(3) A. 24 V DC, 4 A. Wert in Klammern für induktive Ladung.

Betriebstemperatur:

-20 °C bis +60 °C.

Lebensdauer:

50.000 Zyklen.

Anschluss:

Klemme für 2.5 mm².

Schutzart:

IP 20.

Zertifikate:

CE, EAC, cULus_UL Listed.

Oberfläche:

RAL 7035.

Verpackungseinheit:

1 Stück.

Feature:

Adjustable thermostat and hygrostat, with a normally open (NO) and normally closed (NC) contact.

Advantage:

The thermostat and hygrostat monitors both relative humidity and temperature and can therefore, control a single heater, increasing the enclosures temperature in order to reduce the relative humidity. Customers are able to adjust the relative humidity and temperature inside the enclosure, in order to create a suitable environment for the installed components. The normally open contact will therefore close (turning on the heater) when either, the temperature drops below the set value, or when the relative humidity rises above the set value, this could happen at the same time.

Benefit:

The installed devices, such as fan heaters, automatically turn on or off when they are required, which reduces the operational cost of the control panel. Customers can adjust the required humidity and temperature, which means it can be installed in any enclosure, and is not dependant on the other installed components or equipment. The reliable thermostat and hygrostat manages both the relative humidity and temperature within the enclosure, preventing water condensation from occurring.
