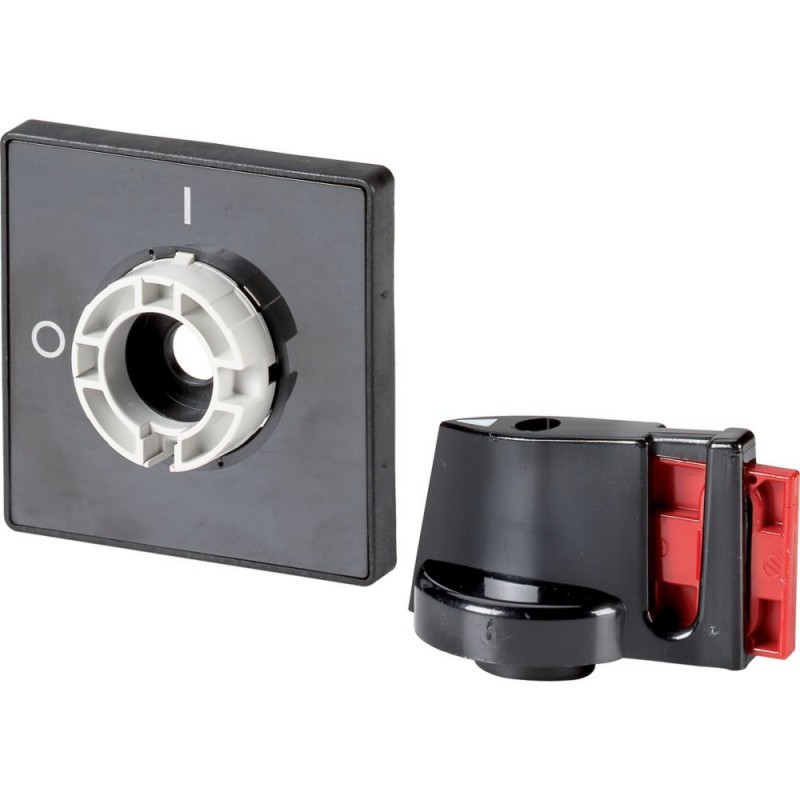

QMHANDLEMP 1319855 EATON ELECTRIC Drehgriff, QM, 1-0, für Umschalter
QMHANDLEMP
1319855
EATON-MOELLER
Drehgriff, QM, 1-0, für Umschalter
QMHANDLEMP
Eaton QM Handle, 1-0, 2 switches, for QM
DUMECO Lasttrennschalter
* Neues Produkt in der Originalverpackung mit allen Garantien und Zertifizierungen von EATON-MOELLER
OFT ZUSAMMEN GEKAUFT
▲Bestseller
▲Mehr Infos
▲Allgemeine Spezifikation
Product Name
Eaton QM Accessory Handle
Catalog Number
1319855
Product Length/Depth
175 mm
Product Height
40 mm
Product Width
100 mm
Product Weight
0.05 kg
Compliances
CE
EAN
8711426905672
Model Code
QMHANDLEMP
Allgemein
Type
Rotary handle
Klimatische Umweltbedingungen
Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
50 °C
Bauartnachweis
Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Rated operational current for specified heat dissipation (In)
0 A
Static heat dissipation, non-current-dependent Pvs
0 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
Not applicable.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
Datasheet - PDF
▲| Titel: | Größe: | Typ: |
|---|---|---|
| PDF EATON INDUSTRIAL SWITCH DISCONNECTORS EN.pdf | 8 Mbytes |
|
| PDF CATALOGUE EATON EN.pdf | 51 Mbytes |
|
| QMHANDLEMP 1319855 ES_1319806.pdf | 2 Mbytes |
|
