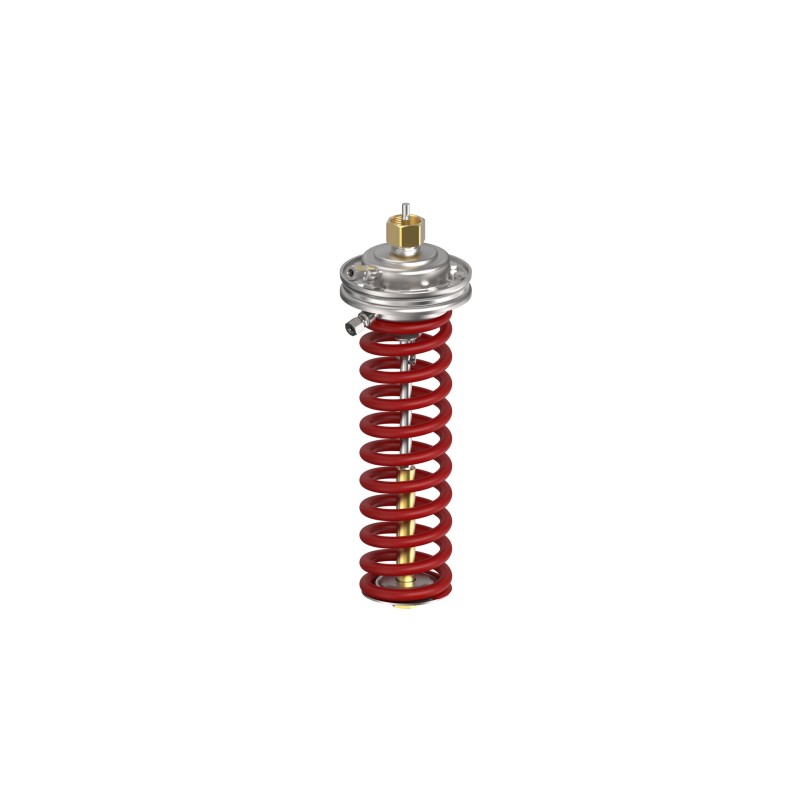

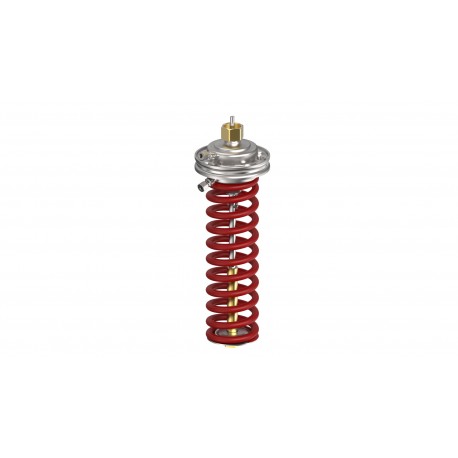

003G1000 DANFOSS HEATING AFD PB25 8-16 32см2 черный
003G1000
DANFOSS HEATING
AFD PB25 8-16 32см2 черный
AFD, 8.00 bar - 16.00 bar, 32 cm²
Home > DANFOSS HEATING
Новый продукт в оригинальной упаковке со всеми гарантиями и сертификатами DANFOSS HEATING
Best sellers
▲Описание
▲AFD PB25 8-16 32cm2 black
Product details
| Gross weight | 12.649 Kg |
| Net weight | 11.77 Kg |
| Volume | 27.6 Liter |
| EAN | 5702421808146 |
| Gross weight | 12.649 Kg |
| Net weight | 11.77 Kg |
| Volume | 27.6 Liter |
| EAN | 5702421808146 |
| Actuator diaphragm material | EPDM (Rolling, fibre enforced) |
| Actuator size [cm²] | 32 cm² |
| Body material | Steel, mat. No 1.0338, zinc plated |
| Description | AFD PB25 8-16 32cm2 black |
| Diameter [mm] [Max] | 125 mm |
| Diameter [mm] [Min] | 15 mm |
| Differential pressure setting [bar] [Max] | 16 bar |
| Differential pressure setting [bar] [Min] | 8 bar |
| Flow control | No |
| Flow limitation | No |
| Function | Press. reduction controller |
| In scope of WEEE and contain batteries | No |
| Media pH [Max] | 10 |
| Media pH [Min] | 7 |
| Media temperature [°C] [Max] | 150 °C |
| Media temperature [°C] [Min] | 2 °C |
| Medium alternative | Glycolic water up to 30% |
| Mounting version | Flow |
| Operating pressure [bar] [Max] | 25 bar |
| Permissible media | District heating/cooling circulation water |
| Pressure controller | Pressure reduction controller |
| Pressure nominal [bar] | 25 bar |
| Pressure setting range [bar] [Max] | 16 bar |
| Pressure setting range [bar] [Min] | 8 bar |
| Product group | Actuators - Pressure Flow |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | d6136a2c-1f94-49c4-8ba7-76f280516979 |
| SCIP dossier product name | AFD/A |
| Setting Type | Adjustable |
| Type | AFD |
| Actuator diaphragm material | EPDM (Rolling, fibre enforced) |
| Actuator size [cm²] | 32 cm² |
| Body material | Steel, mat. No 1.0338, zinc plated |
| Description | AFD PB25 8-16 32cm2 black |
| Diameter [mm] [Max] | 125 mm |
| Diameter [mm] [Min] | 15 mm |
| Differential pressure setting [bar] [Max] | 16 bar |
| Differential pressure setting [bar] [Min] | 8 bar |
| Flow control | No |
| Flow limitation | No |
| Function | Press. reduction controller |
| In scope of WEEE and contain batteries | No |
| Media pH [Max] | 10 |
| Media pH [Min] | 7 |
| Media temperature [°C] [Max] | 150 °C |
| Media temperature [°C] [Min] | 2 °C |
| Medium alternative | Glycolic water up to 30% |
| Mounting version | Flow |
| Operating pressure [bar] [Max] | 25 bar |
| Permissible media | District heating/cooling circulation water |
| Pressure controller | Pressure reduction controller |
| Pressure nominal [bar] | 25 bar |
| Pressure setting range [bar] [Max] | 16 bar |
| Pressure setting range [bar] [Min] | 8 bar |
| Product group | Actuators - Pressure Flow |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | d6136a2c-1f94-49c4-8ba7-76f280516979 |
| SCIP dossier product name | AFD/A |
| Setting Type | Adjustable |
| Type | AFD |
