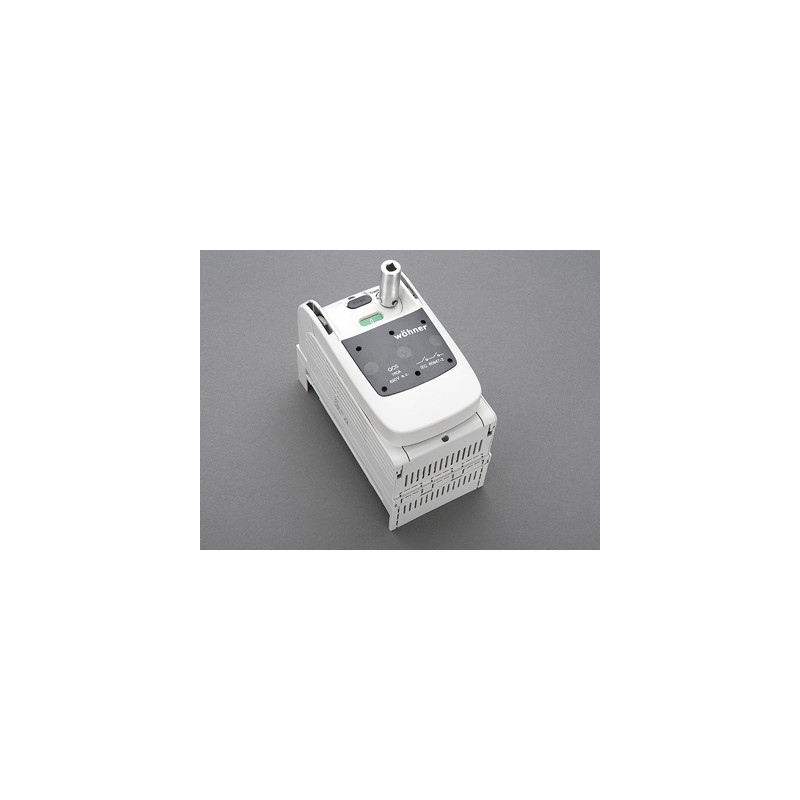

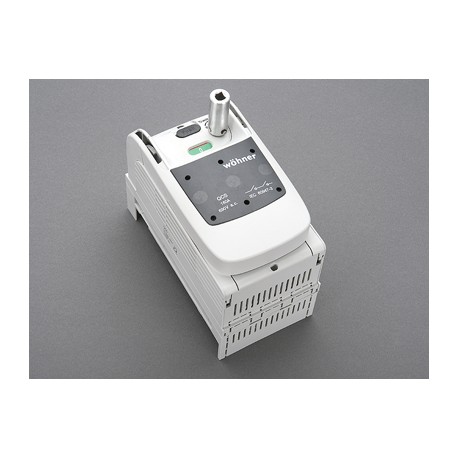

33543 WÖHNER QUADRON 60Classic, commutateur de coupe de charge, 160A, 3p, version de commande de porte, conn..

Référence 33543

QUADRON^®60Classic Speed

interrupteur-sectionneur à 3 pôles

borne à cage, raccordement par le bas, avec poignée rotative de couplage de porte

160 A

pour jeux de barres12, 15, 20, 25, 30 x 5, 10 et barres profilées

Système

60Classic

Avantages produit

With spring-controlled switch mechanism for frequent switching as per utilisation category "A"
Lockable in neutral position with up to 3 padlocks
FLAG indicator shows the switch setting double-breaking main contacts
Can be used as a mains disconnector as per IEC / EN 60204-1 (main switch)
Can also be used as an Emergency Off switch in combination with the door coupling twist handle
Main switch and Emergency Off switch only in combination with AC-23A/B
AC-23B (690V/125A), AC-23A (500V/125A)

CrossLink® adapter technology
Simple and safe clicking into place and making contact
Busbar supports can be mounted above each other for flat busbars

Switches can be installed 90° left/right horizontal, always with the same switch handle position

Compact dimensions (106mm wide)
