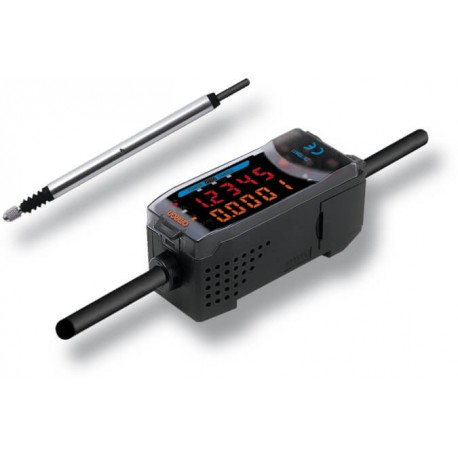

ZS-XC1A
ZS 0012F
ZSXC1A
OMRON
1
OMRON réalise un investissement important dans son centre de distribution de Den Bosch, aux Pays-Bas, pour offrir une plus grande flexibilité et fiabilité dans les livraisons. La transition vers ses nouvelles installations débutera la semaine du 10 juin 2024. À partir de cette date, ses opérations d'entrepôt cesseront temporairement pendant une semaine pour faciliter le déménagement. Ils prévoient une période de montée en puissance de quatre semaines à compter du lundi 17 juin 2024, durant laquelle leurs délais de livraison seront plus longs que d'habitude.
Capteurs avancés > Accessoires Capteurs avancés
* Produit neuf dans son emballage d'origine avec toutes les garanties et les certifications émises par OMRON
Merci de vous intéresser à nos produits, nous espérons que le délai indiqué soit de votre convenance.
Pendant le traitement de la commande, vous pouvez sélectionner le type d'envoi qui vous convient. Aérien Express 24Hrs, Terrestres Standard 48/72Hres, etc.
Note: The resolution refers to the minimum value that can be read when a ZX-TDA_1 amplifier unit is connected.
ZX-SW11EV31 |
*Robot cable models are also available. The model numbers are ZX-XC_R.
Measuring ordinary flat surfaces (standard | ![]() | ||||
![]() | |||||
![]() | |||||
![]() | |||||
![]() | |||||
Mounting D5SN-TN1/-TF1 or commercially | ![]() |
Note:Replacement possible
Conversion adapter required
Possible average count settings3 | ||
Linear output4 | Current output: 4 to 20 mA/F.S., max. load resistance: 300 Ω Voltage output: ±4 V (±5 V, 1 to 5 V5), output impedance: 100 Ω | |
NPN open-collector outputs, 30 VDC, 30 mA max. | PNP open-collector outputs, 30 VDC, 30 mA max. | |
Zero reset input, timing input, reset input, judgement output hold input | ON: Supply voltage short-circuited or supply voltage of 1.5 V or less | |
| ||
Judgement indicators: High (orange), pass (green), low (yellow), 7-segment main digital display (red), 7-segment sub-digital | ||
140 mA max. (with sensor connected), for 24-VDC power supply voltage: 140 mA max. (with sensor connected) | ||
Operating and storage: 0 to 50°C (with no icing or condensation) | ||
Case: PBT (polybutylene terephthalate), cover: Polycarbonate |
Resolution7 | ||||
Linearity8 | ||||
Operating force9 | ||||
Operating: 0 to 50°C, storage:-15 to 60°C (with no icing or condensation) | ||||
Operating and storage: 35% to 85% (with no icing or condensation) | ||||
Temperature characteristic10 | ||||
Instruction manual, preamplifier mounting brackets (ZX-XBT1) |
1.When using the ZX-TDA11/41 with the SmartMonitor, either the ZX-SFW11EV3 or the
ZX-SW11EV3 SmartMonitor must be used. Earlier versions cannot be used.
3.The response speed of the linear output is calculated as the measurement period x (average count setting + 1).
The response speed of the judgement outputs is calculated as the measurement period x (average count setting + 1).
4.The output can be switched between a current output and voltage output using a switch on the bottom of the amplifier unit.
7.The resolution is given as the minimum value that can be read when a ZX-TDA_1 amplifier unit is connected. This value is taken 15 minutes after turning ON the power with the average number of operations set to 256.
9.These figures are representative values that apply for the measurement mid-point, and are for when the provided actuator is used, with the actuator moving downwards. If the actuator moves horizontally or upwards, the operating force will be reduced. Also, if an actuator other than the standard one is used, the operating force will vary with the weight of the actuator itself.
Titre: | Taille: | Type: |
---|---|---|
PDF CATALOGO OMRON AUTOMATION EN.pdf | 28 Mbytes |
![]() |
PDF CATALOGUE OMRON FR.pdf | 88 Mbytes |
![]() |
ZS-XC1A ZSXC1A ZS 0012F FR_ZX-TDS01T.pdf | 678 Kbytes |
![]() |
ZS-XC1A ZSXC1A ZS 0012F zs_l_brochure_fr.pdf | 2 Mbytes |
![]() |
