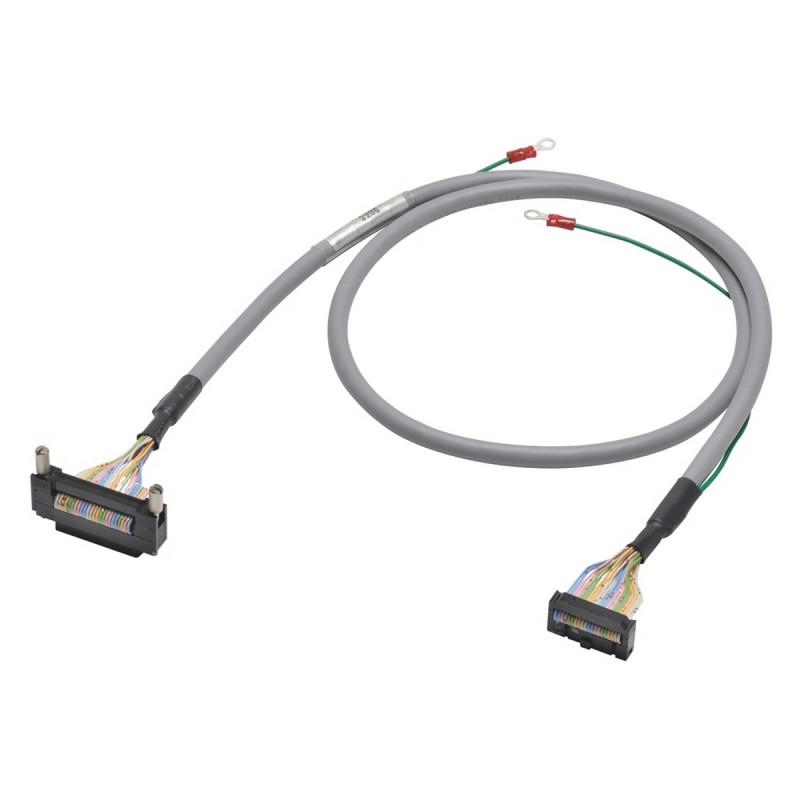

XW2Z-R500C XW2Z8012F 670322 OMRON Câble de module PLC G7TC (5 m)
XW2Z-R500C
XW2Z8012F
XW2ZR500C
OMRON
Câble G7TC Module PLC (5m)
Module G7TC Cable PLC (5m)
Systèmes de contrôle > Systèmes de contrôle Accessoires
* Produit neuf dans son emballage d'origine avec toutes les garanties et les certifications émises par OMRON
En savoir plus
▲- Câbles avec connecteurs pour bornes relais d'E/S G70V et G7TC, bornes relais G70D et G70R, et borniers d'E/S G70A et P7TF-IS/OS.
- Câbles sans connecteur disponibles avec ou sans bornes serties.
- Câbles disponibles pour les contrôleurs programmables de Mitsubishi Electric.
Caractéristiques et références
Ordering Information
| Type (A side) | Name | I/O Classification | Appearance | Cable length L (mm) | Order code | |||||
|---|---|---|---|---|---|---|---|---|---|---|
| Loose wire connectins | Cables with Loose Wires and Crimp Terminals XW2Z-RY⬜C | 16 I/O points |  | 1,000 | XW2Z-RY100C | |||||
| 1,500 | XW2Z-RY150C | |||||||||
| 2,000 | XW2Z-RY200C | |||||||||
| 3,000 | XW2Z-RY300C | |||||||||
| 5,000 | XW2Z-RY500C | |||||||||
| Cables with Loose Wires XW2Z-RA⬜C | 16 I/O points |  | 2,000 | XW2Z-RA200C | ||||||
| 5,000 | XW2Z-RA500C | |||||||||
| Fujitsu connectors (24 pins) | Cables with Connectors (1:1) XW2Z-R⬜C | 16 I/O points |  | 1,000 | XW2Z-R100C | |||||
| 1,500 | XW2Z-R150C | |||||||||
| 2,000 | XW2Z-R200C | |||||||||
| 3,000 | XW2Z-R300C | |||||||||
| 5,000 | XW2Z-R500C | |||||||||
| Fujitsu connectors (40 pins) | Cables with Connectors (1:2) XW2Z-RI⬜C-⬜ XW2Z-RO⬜C-⬜ | 32 input points |  | (A) 1,000 | (B) 750 | XW2Z-RI100C-75 | ||||
| (A) 1,500 | (B) 1,250 | XW2Z-RI150C-125 | ||||||||
| (A) 2,000 | (B) 1,750 | XW2Z-RI200C-175 | ||||||||
| (A) 3,000 | (B) 2,750 | XW2Z-RI300C-275 | ||||||||
| (A) 5,000 | (B) 4,750 | XW2Z-RI500C-475 | ||||||||
| 32 output points | (A) 1,000 | (B) 750 | XW2Z-RO100C-75 | |||||||
| (A) 1,500 | (B) 1,250 | XW2Z-RO150C-125 | ||||||||
| (A) 2,000 | (B) 1,750 | XW2Z-RO200C-175 | ||||||||
| (A) 3,000 | (B) 2,750 | XW2Z-RO300C-275 | ||||||||
| (A) 5,000 | (B) 4,750 | XW2Z-RO500C-475 | ||||||||
| Fujitsu connectors (56 pins) | Cables with Connectors (1:3) XW2Z-R⬜C-⬜-⬜ | 48 I/O points |  | (A) 1,500 | (B) 1,250 | (C) 1,000 | XW2Z-R150C-125-100 | |||
| (A) 2,000 | (B) 1,750 | (C) 1,500 | XW2Z-R200C-175-150 | |||||||
| (A) 3,000 | (B) 2,750 | (C) 2,500 | XW2Z-R300C-275-250 | |||||||
| MIL connectors (20 pins) | Cables with Connectors (1:1) XW2Z-RO⬜C XW2Z-RI⬜C | 16 I/O points |  | 250 | XW2Z-RO25C | |||||
| 500 | XW2Z-RO50C | |||||||||
| 250 | XW2Z-RI25C | |||||||||
| 500 | XW2Z-RI50C | |||||||||
| MIL connectors (40 pins) | Cables with Connectors (1:2) XW2Z-RO⬜-⬜-D1, XW2Z-RI⬜-⬜-D1, XW2Z-RI⬜-⬜-D2, XW2Z-RM⬜-⬜-D1 2 ,These cables are used to connect to slave products for DeviceNet and other networks. XW2Z-RM⬜-⬜-D2 2 These cables are used to connect to slave products for DeviceNet and other networks. | 32 I/O points |  | (A) 500 | (B) 250 | XW2Z-RO50-25-D1 | ||||
| (A) 750 | (B) 500 | XW2Z-RO75-50-D1 | ||||||||
| (A) 1,000 | (B) 750 | XW2Z-RO100-75-D1 | ||||||||
| (A) 1,500 | (B) 1,250 | XW2Z-RO150-125-D1 | ||||||||
| (A) 2,000 | (B) 1,750 | XW2Z-RO200-175-D1 | ||||||||
| (A) 3,000 | (B) 2,750 | XW2Z-RO300-275-D1 | ||||||||
| (A) 5,000 | (B) 4,750 | XW2Z-RO500-475-D1 | ||||||||
| (A) 500 | (B) 250 | XW2Z-RI50-25-D1 | ||||||||
| (A) 750 | (B) 500 | XW2Z-RI75-50-D1 | ||||||||
| (A) 1,000 | (B) 750 | XW2Z-RI100-75-D1 | ||||||||
| (A) 1,500 | (B) 1,250 | XW2Z-RI150-125-D1 | ||||||||
| (A) 2,000 | (B) 1,750 | XW2Z-RI200-175-D1 | ||||||||
| (A) 3,000 | (B) 2,750 | XW2Z-RI300-275-D1 | ||||||||
| (A) 5,000 | (B) 4,750 | XW2Z-RI500-475-D1 | ||||||||
| (A) 500 | (B) 250 | XW2Z-RI50-25-D2 | ||||||||
| (A) 750 | (B) 500 | XW2Z-RI75-50-D2 | ||||||||
| 16 inputs and 16 outputs (32 I/O points) | (A) 500 | (B) 250 | XW2Z-RM50-25-D1 | |||||||
| (A) 750 | (B) 500 | XW2Z-RM75-50-D1 | ||||||||
| (A) 1,000 | (B) 750 | XW2Z-RM100-75-D1 | ||||||||
| (A) 1,500 | (B) 1,250 | XW2Z-RM150-125-D1 | ||||||||
| (A) 2,000 | (B) 1,750 | XW2Z-RM200-175-D1 | ||||||||
| (A) 3,000 | (B) 2,750 | XW2Z-RM300-275-D1 | ||||||||
| (A) 5,000 | (B) 4,750 | XW2Z-RM500-475-D1 | ||||||||
| (A) 500 | (B) 250 | XW2Z-RM50-25-D2 | ||||||||
| (A) 750 | (B) 500 | XW2Z-RM75-50-D2 | ||||||||
| Mitsubishi Electric PLCs with 32-point connectors (1:2) Applicable models: For inputs: AX42, A1SX41, A1SX42, QX41, and QX42 For outputs: AY42, A1SY41, A1SY42, QY41P, and QY42P | Mitsubishi Electric PLC Connecting Cables XW2Z-RI⬜C-⬜-MN XW2Z-RO⬜C-⬜-MN | 32 input points |  | (A) 1,000 | (B) 750 | XW2Z-RI100C-75-MN | ||||
| (A) 1,500 | (B) 1,250 | XW2Z-RI150C-125-MN | ||||||||
| (A) 2,000 | (B) 1,750 | XW2Z-RI200C-175-MN | ||||||||
| (A) 3,000 | (B) 2,750 | XW2Z-RI300C-275-MN | ||||||||
| 32 output points | (A) 1,000 | (B) 750 | XW2Z-RO100C-75-MN | |||||||
| (A) 1,500 | (B) 1,250 | XW2Z-RO150C-125-MN | ||||||||
| (A) 2,000 | (B) 1,750 | XW2Z-RO200C-175-MN | ||||||||
| (A) 3,000 | (B) 2,750 | XW2Z-RO300C-275-MN | ||||||||
Note:
For a connector pin assignment diagramand cable color information, refer to the wiring drawings.
Specifications
Ratings
| Rated current | 1 A |
| Rated voltage | 250 V |
| Contact resistance | 20 mΩ max. (at 20 mV, 100 mA max.) 2 Thesevalues are for the connectors. |
| Insulation resistance | 1,000 MΩ min. (at 500 VDC) * |
| Dielectric strength | 500 VAC for 1 min (leakage current: 1 mA max.) |
| Ambient operating temperature | 0 to 80°C |
