NRT-CN NRT 9012D 113799 OMRON Interrupteur à molette
NRT-CN
NRT 9012D
NRTCN
OMRON
Molette de réglage de l'interrupteur
Interrupteurs de position / BOUTONS-POUSSOIRS > Autres Interrupteurs de position
* Produit neuf dans son emballage d'origine avec toutes les garanties et les certifications émises par OMRON
Les plus vendus
▲En savoir plus

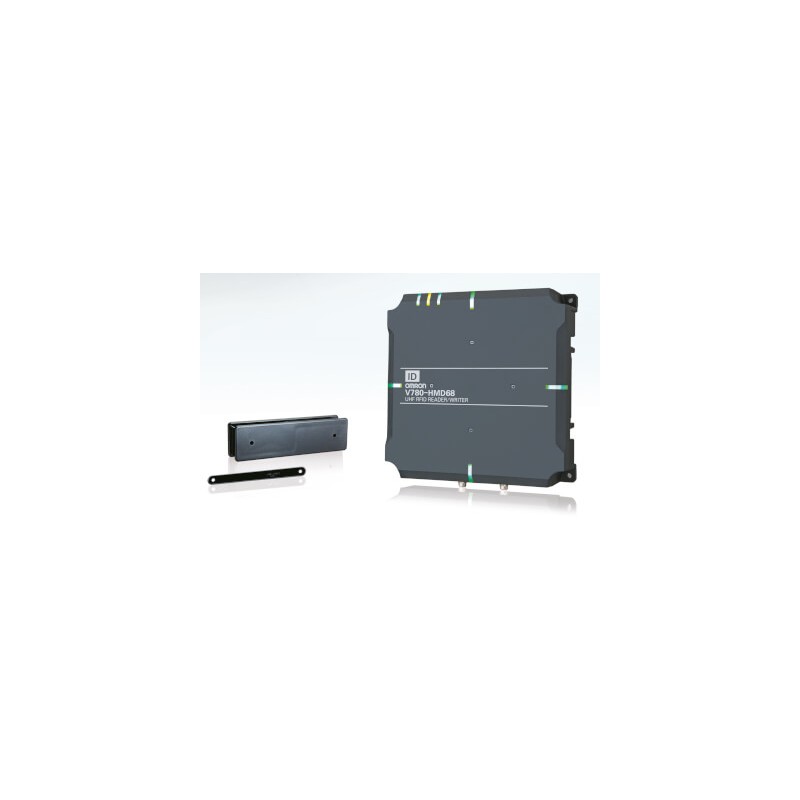

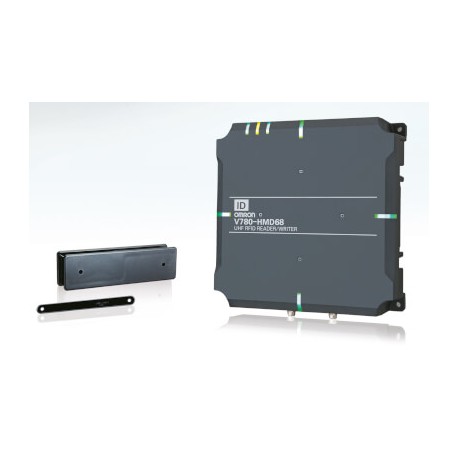

▲Système RFID UHF
Système RFID UHF 3 en 1 : Antenne, amplificateur et contrôleur
- Conforme aux normes ISO/IEC 18000-63: 2013
- Des communications longue distance stables
- Unité de lecture/écriture avec antenne intégrée
- État de communication visualisé par des indicateurs LED
- Communications hôte : Ethernet (base Modbus/TCP)
- Simple à utiliser
Ordering information
Reader/Writer
| Appearance | Size (mm) | Network | Applicable countries 2 Contact your Omronrepresentative for details on products for other countries. | Order code |
|---|---|---|---|---|
| 250 × 250 × 70 | Modbus/TCP base (TCP/IP) | Japan | V780-HMD68-ETN-JP | |
| Korea | V780-HMD68-ETN-KR | |||
| China | V780-HMD68-ETN-CN | |||
| Taiwan | V780-HMD68-ETN-TW | |||
| India | V780-HMD68-ETN-IN | |||
| Indonesia | V780-HMD68-ETN-ID | |||
| Malaysia | V780-HMD68-ETN-MY | |||
| Singapore and Thailand | V780-HMD68-ETN-SG | |||
| Under RE direct. | V780-HMD68-ETN-EU | |||
| Russia | V780-HMD68-ETN-RU | |||
| United States and Canada | V780-HMD68-ETN-US | |||
| Mexico | V780-HMD68-ETN-MX | |||
| EtherNet/IP | Japan | V780-HMD68-EIP-JP | ||
| Korea | V780-HMD68-EIP-KR | |||
| China | V780-HMD68-EIP-CN | |||
| Taiwan | V780-HMD68-EIP-TW | |||
| India | V780-HMD68-EIP-IN | |||
| Indonesia | V780-HMD68-EIP-ID | |||
| Malaysia | V780-HMD68-EIP-MY | |||
| Under RE direct. | V780-HMD68-EIP-EU | |||
| Russia | V780-HMD68-EIP-RU | |||
| United States and Canada | V780-HMD68-EIP-US | |||
| Mexico | V780-HMD68-EIP-MX |
RF Tag
| Appearance | Memory capacity | Size (mm) | Order code |
|---|---|---|---|
| 1 KB | 150 × 14 × 6 | V780-A-JIME-Z3BLI-10 2 Contains10 RF Tags per package. |
RF Tag Attachment
| Appearance | Material | Size (mm) | Order code |
|---|---|---|---|
| Polycarbonate plastic | 180 × 50 × 30 | V780-A-TA-133-10 2 Contains10 RF Tag Attachments per package. |
- Use the RF Tag Attachmentwhen mounting on metal surface. Refer to the User's Manual for howto mount.
- Toppan Forms Co., Ltd. manufactures RF Tags and Attachments. For more information, visit the following website:
http://www.toppan-f.co.jp/english/
Cables
RecommendedEthernet Cables (Connection between Host Device and Reader/Writer)
UseSTP (shielded twisted-pair) cable of category 5 or higher.
| Appearance | Specifications | Cable length (m) 2 3- and 15-m cables arealso available. | Order code | |
|---|---|---|---|---|
| Wire Gauge and Number of Pairs: AWG22, 2-pair Cable | Cable with Plug on One End and Socket on Other End (M12 Straight/RJ45) | 0.5 | XS5W-T421-BME-K | |
| 1 | XS5W-T421-CME-K | |||
| 2 | XS5W-T421-DME-K | |||
| 5 | XS5W-T421-GME-K | |||
| 10 | XS5W-T421-JME-K | |||
For details, refer to the Industrial EthernetConnectors Catalog (Cat. No. G019).
Other cable lengths, robotcables, and extension cables are available. Contact your Omron representativefor details.
Recommended PowerCables (Connection between Power Supply and Reader/Writer) XS5F-D42⬜-⬜80-F
| Specifications | Cable length (m) | Cable outer diameter (mm) | Order code | |
|---|---|---|---|---|
| Straight Connectors | Angled Connectors | |||
| Fire-retardant, Robot Cable | 1 | 6 | XS5F-D421-C80-F | XS5F-D422-C80-F |
| 2 | XS5F-D421-D80-F | XS5F-D422-D80-F | ||
| 3 | XS5F-D421-E80-F | XS5F-D422-E80-F | ||
| 5 | XS5F-D421-G80-F | XS5F-D422-G80-F | ||
| 10 | XS5F-D421-J80-F | XS5F-D422-J80-F | ||
For details, refer to the XS5 datasheet(http://www.ia.omron.com/).
Other cable lengths and extensioncables are available. Contact your Omron representative for details.
RecommendedIndustrial Switching Hubs
| Appearance | Specifications | Order code | ||
|---|---|---|---|---|
| Functions | No. of ports | Failure detection | ||
| Quality of Service (QoS): EtherNet/IP control data priorityFailure detection: Broadcast storm and LSI error detection 10/100BASE-TX, Auto-Negotiation | 3 | No | W4S1-03B | |
| 5 | No | W4S1-05B | ||
| 5 | Yes | W4S1-05C | ||
Datasheet - PDF
▲| Titre: | Taille: | Type: |
|---|---|---|
| PDF CATALOGO OMRON AUTOMATION EN.pdf | 28 Mbytes |
|
| PDF CATALOGUE OMRON FR.pdf | 88 Mbytes |
|
| NRT-CN 113799 NRT 9012D q256_v780_datasheet_en.pdf | 7 Mbytes |
|
