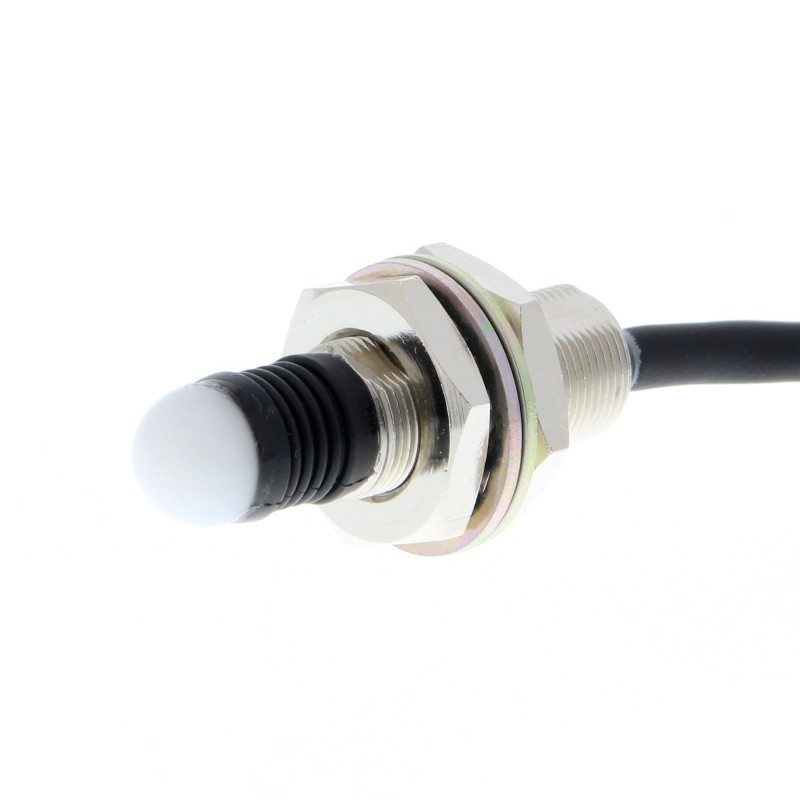

Mechanical Touch Switch
Detects Objects in Multiple Directions with High Sensitivity, Ideal for Robotics
■ Detects object contact from multiple directions and operates even with a slight force.
■ Slow-action switching mechanism used. Move- ment differential as small as 0.01 mm assures high accuracy of detection.
■ Gold-plated contact with coil spring capable of switching micro current/voltage load while provid- ing high contact reliability.
■ Highly resistant to dust, fine particles and water or oil splash, conforming to IP67.
■ Three sizes (M10, M8, and M5) and three types of actuators (hemispheric, cone-shaped, and wobble stick).
■ Model Number Legend
1 2 3
51: Wobble stick (short spring)
53: Wobble stick (long spring). Only with the M10 type.
■ List of Models
3. Cable length
1: 1 m
3: 3 m
5: 5 m
Type Cable length M5 M8 M10
1 m D5B-5011 D5B-8011 D5B-1011
3 m D5B-5013 D5B-8013 D5B-1013
5 m D5B-5015 D5B-8015 D5B-1015
1 m D5B-5021 D5B-8021 D5B-1021
3 m D5B-5023 D5B-8023 D5B-1023
5 m D5B-5025 D5B-8025 D5B-1025
Wobble stick actuator
Short spring 1 m D5B-5511 D5B-8511 D5B-1511
3 m D5B-5513 D5B-8513 D5B-1513
5 m D5B-5515 D5B-8515 D5B-1515
Long spring 1 m --- --- D5B-1531
3 m --- --- D5B-1533
5 m --- --- D5B-1535
