> >>>CS1W-PRM21 CS1W9013M 168023 OMRON Module maître Profibus DP
Produit précédent Produit suivant

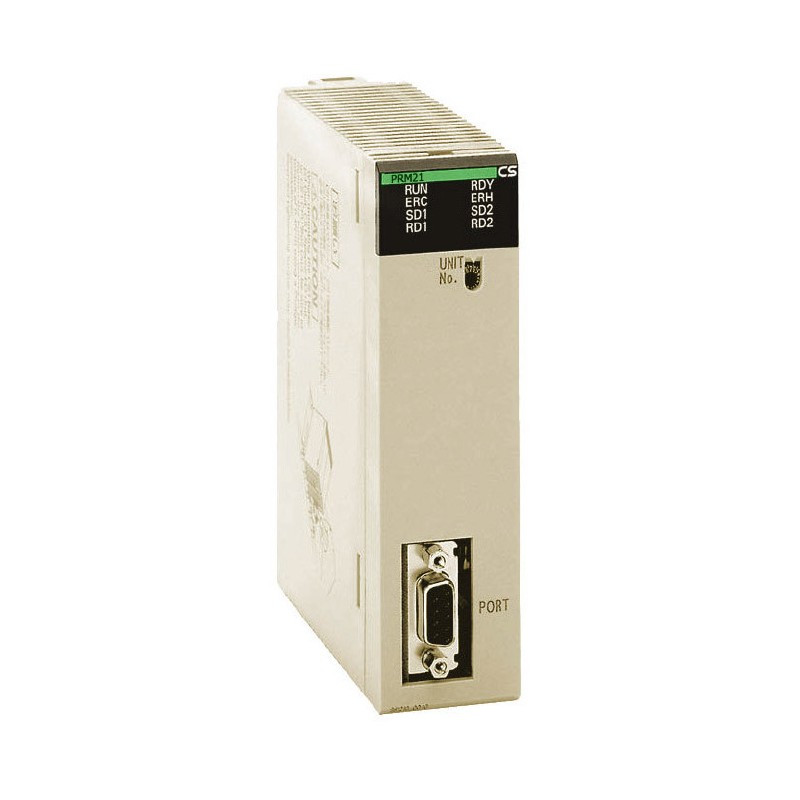

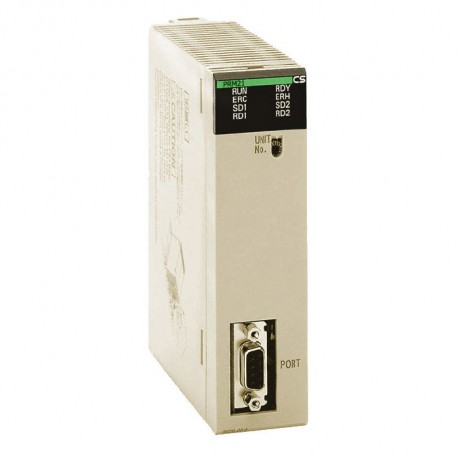

CS1W-PRM21 CS1W9013M 168023 OMRON Module maître Profibus DP Agrandir l'image
Les images sont à titre illustratif. Svp, révisez la fiche technique.

CS1W-PRM21 CS1W9013M 168023 OMRON Module maître Profibus DP

CS1W-PRM21

CS1W9013M

CS1WPRM21

OMRON

Disponible Expédition hui

Module maître Profibus DP

Plus de détails


Systèmes de contrôle > CS1

* Produit neuf dans son emballage d'origine avec toutes les garanties et les certifications émises par OMRON

Prix total: $1,604.09
Prix unitaire: $1,604.09

*Ce prix est par unité et montre la valeur nette (excluant les taxes indirectes le cas échéant) .

Si notre prix n'est pas le meilleur, demandez-nous un devis. Demander un devis

En savoir plus

▲


Caractéristiques et références

Ordering information

Type

Ports

Protocols

Unit class

Remarks

Connection type

Order code

Serial

2 × RS-232C

CompoWay/F, Host Link, NT link, Modbus, User-defined

CPU bus unit

-

9-pin D-Sub

CS1W-SCU21-V1

Serial

2 × RS-422/RS-485

CompoWay/F, Host Link, NT link, Modbus, User-defined

CPU bus unit

-

9-pin D-Sub

CS1W-SCU31-V1

Serial

2 × RS-232C

CompoWay/F, Host Link, NT link, Modbus, User-defined

CPU option board

-

9-pin D-Sub

CS1W-SCB21-V1

Serial

1 × RS-232C +
1 × RS-422/RS-485

CompoWay/F, Host Link, NT link, Modbus, User-defined

CPU option board

-

9-pin D-Sub

CS1W-SCB41-V1

GP-IB

Master/Slave selectable

GP-IB instrument
communication

Special I/O unit

-

GP-IB

CS1W-GPI01

Ethernet

1 × 100 Base-Tx

UDP, TCP/IP, FTP server,
SMTP (e-mail), SNTP (time adjust),
FINS routing, socket service

CPU bus unit

-

RJ45

CS1W-ETN21

Controller link

2-wire twisted pair

Omron proprietary

CPU bus unit

-

2-wire screw + GND

CS1W-CLK23

Optical HPCF

-

2 × HPCF connector

CS1W-CLK13

Optical graded-index fiber

-

4 × ST connector

CS1W-CLK53

EtherNet/IP

1 × 100 Base-Tx

EtherNet/IP, UDP, TCP/IP, FTP server, SNTP, SNMP

CPU Bus unit

31 mm

RJ45

CS1W-EIP21

DeviceNet

1 × CAN

DeviceNet

CPU bus unit

-

5-p detachable

CS1W-DRM21-V1

CompoNet

4-wire, data + power to slaves (Master)

CompoNet (CIP-based)

Special I/O unit

-

4-p detachable IDC
or screw

CS1W-CRM21

CompoBus/S

2-wire (Master)

Omron proprietary

Special I/O unit

-

2-wire screw +
2-wire power

CS1W-SRM21

PROFIBUS-DP

1 × RS-485 (Master)

DP, DPV1

CPU bus unit

-

9-pin D-Sub

CS1W-PRM21

CAN

1 × CAN

CANopen, User-defined

CPU bus unit

-

5-p detachable

CS1W-CORT21

PROFINET IO

1 × 100 Base-Tx
PROFINET IO controller

FINS UDP

CPU bus unit

-

RJ45

CS1W-PNT21

PROFIBUS-DP

1 × RS-485 (Slave)

DP

C200H special
I/O unit

C200H units cannot be used on CS1D systems

9-pin D-Sub

C200HW-PRT21

Accessories

Description

Connection type

Order code

RS-232C to RS-422/RS-485 signal converter. Mounts directly on serial port.

9-pin D-sub to screw clamp terminals

CJ1W-CIF11

Controller link PCI board with support software

PCI, wired CLK

3G8F7-CLK23-E

Controller link PCI board with support software

PCI, HPCF connectors

3G8F7-CLK13-E

Controller link PCI board with support software

PCI, ST connectors

3G8F7-CLK53-E

Controller link repeater unit (wire to wire)

Screw - Screw

CS1W-RPT01

Controller link repeater unit (wire to HPCF fiber)

Screw - HPCF connector

CS1W-RPT02

Controller link repeater unit (wire to graded-index glass fiber)

Screw - ST connector

CS1W-RPT03

PROFIBUS DP to RS-422/RS-485 Serial Gateway. User-configurable, with Omron protocols built-in.

9-pin D-sub to screw clamp terminals

PRT1-SCU11

PROFINET IO + ModBus/TCP to Modbus/RTU (RS-485) Gateway.

3 × RJ45 to screw clamp terminals

EJ1N-HFU-ETN

Note: For Ethernet Cables and Accessories, see page

Accessoires

Ethernet cables and accessories

EtherCAT patch cables, improved shield

Shape

Connector 1

Connector 2

Material

Cable

Color

Length in cm

Order code

20

30

50

100

150

200

300

500

750

1000

1500

2000


M12 straight

M12 straight

PVC

AWG22, 2 pairs

Black

–

–

⬛

⬛

–

⬛

⬛

⬛

–

⬛

–

–

XS5W-T421-[.]M2-SS


M12 straight

RJ45

PVC

AWG22, 2 pairs

Black

–

–

⬛

⬛

–

⬛

⬛

⬛

–

⬛

–

–

XS5W-T421-[.]MC-SS

Note: For [.] fill in the 1-character length code.

Ethernet patch cables, standard RJ45 connectors

Shape

Connector 1

Connector 2

Material

Cable

Color

Length in cm

Order code

20

30

50

100

150

200

300

500

750

1000

1500

2000


RJ45 std.

RJ45 std.

LSZH

Cat6a S/FTP 4 pairs

Blue

⬛

⬛

⬛

⬛

⬛

⬛

⬛

⬛

⬛

⬛

⬛

⬛

XS6W-6LSZH8SS[...]CM-B


RJ45 std.

RJ45 std.

LSZH

Cat6a S/FTP 4 pairs

Yellow

⬛

⬛

⬛

⬛

⬛

⬛

⬛

⬛

⬛

⬛

⬛

⬛

XS6W-6LSZH8SS[...]CM-Y


RJ45 std.

RJ45 std.

LSZH

Cat6a S/FTP 4 pairs

Green

⬛

⬛

⬛

⬛

⬛

⬛

⬛

⬛

⬛

⬛

⬛

⬛

XS6W-6LSZH8SS[...]CM-G


RJ45 std.

RJ45 std.

PUR

Cat5e S/FTP 4 pairs

Green

–

–

⬛

⬛

⬛

⬛

⬛

⬛

⬛

⬛

⬛

⬛

XS6W-5PUR8SS[...]CM-G

Note: For [...] fill in the length in cm.

Ethernet patch cables, RJ45/M12 connectors

Shape

Connector 1

Connector 2

Material

Cable

Color

Length in cm

Order code

30

50

100

200

300

500

1000

1500


RJ45

RJ45

PVC

Cat5e Shielded Quad

Light Blue

A

B

C

D

E

G

J

K

XS5W-T421-[.]MD-K


M12 straight

M12 straight

PVC

Cat5e Shielded Quad

Light Blue

–

B

C

D

E

G

J

K

XS5W-T421-[.]M2-K


M12 straight

RJ45

PVC

Cat5e Shielded Quad

Light Blue

A

B

C

D

E

G

J

K

XS5W-T421-[.]MC-K


M12 angled

M12 angled

PVC

Cat5e Shielded Quad

Light Blue

–

B

C

D

E

G

J

K

XS5W-T422-[.]M2-K


M12 angled

RJ45

PVC

Cat5e Shielded Quad

Light Blue

A

B

C

D

E

G

J

K

XS5W-T422-[.]MC-K

Note: For [.] fill in the 1-character length code.

Specifications

Item

XS6W-6LSZH8SS_CM-_

XS6W-5PUR8SS_CM-G

Rated current

1 A (at 50°C)

Withstand voltage

1,000 VDC for 60 s (leakage current: 1 mA max.)

Ambient operating temperature

−20 to 60°C

−40 to 85°C

Ambient storage temperature

−20 to 60°C

−40 to 85°C

Ambient installation temperature

0 to 50°C

−10 to 60°C

Protective structure

IP20

IP20

Accessories

Ethernet cables and accessories

Accessories

Type

Connector

Specification

Color

Length

Order code

Ethernet installation cable


none

CAT 5, SF/UTP, 4 × 2 × AWG 24/1
(solid core), Polyurethane (PUR)

Green

100 m

WM IE-5IC4x2xAWG24/1-PUR

Ethernet installation cable


none

CAT 5, SF/UTP, 4 × 2 × AWG 26/7
(stranded core), Polyurethane (PUR)

100 m

WM IE-5CC4x2xAWG26/7-PUR

Ethernet socket


RJ45 socket

DIN-rail mount socket to terminate
installation cable in the cabinet

Grey

60 × 17.5 × 67 mm

WM IE-TO-RJ45-FJ-B

Ethernet field-mount plugs


Metal RJ45

for AWG22 to AWG26

Chrome

52 mm

WM IE-PS-RJ45-FH-BK

Ethernet field-mount plugs


Plastic RJ45

for AWG22 to AWG24

Black

52 mm

XS6G-T421-1

Industrial switching hubs

Shape

Functions

Ports

Failure detection

Power supply voltage

Order code


Quality of Service (QoS):

EtherNet/IP control data priority

Failure detection:

Broadcast storm and LSI error detection
10/100BASE-TX, Auto-negotiation

3

–

24.0 VDC±5%

W4S1-03B


5

W4S1-05B

⬛

W4S1-05C

EtherCAT junction slave

Shape

Functions

Ports

Power supply voltage

Order code


Creation of star- and tree topologies
in EtherCAT networks.

Distributed Clock (DC) is supported.

3

20.4 to 28.8 VDC

(24 VDC –15% to 20%)

GX-JC03


6

GX-JC06
