OMRONSécurité AUTRES SÉCURITÉ A22Z-EG2 A22 9156B A22ZEG2 OMRON Couverture pour A22E Circulaire

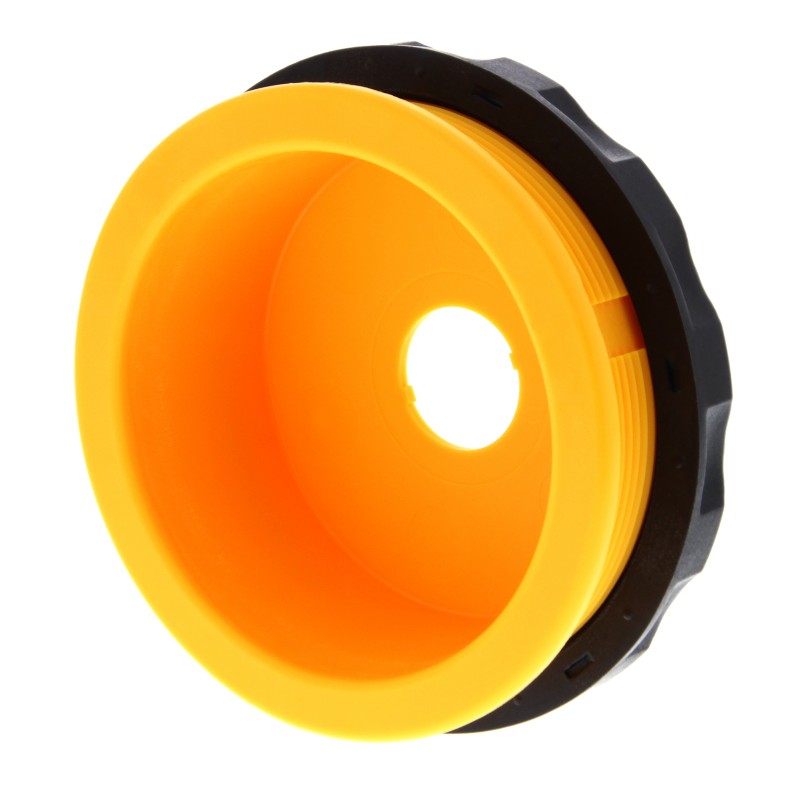

OMRON A22Z-EG2 A22 9156B A22ZEG2 - Image 1

Les images sont à titre illustratif. Svp, révisez la fiche technique.

A22Z-EG2 A22 9156B A22ZEG2 OMRON Couverture pour A22E Circulaire

Référence: A22Z-EG2

Code: A22 9156B

Numéro de catalogue: A22ZEG2

Fabricant: OMRON

Description:

Couverture pour A22E Circulaire
Couverture circulaire A22E
Coup de poing arrêt d'urgence diamètre 22, Accessoire

Catégories:

  • Appareillage industriel basse tension > Plaque signalétique pour appareil de commande et de signalisation
  • OMRON > Sécurité > Autres sécurité

Produit neuf dans son emballage d'origine avec toutes les garanties et les certifications émises par OMRON

  • En savoir plus
  • ETIM
  • Commentaires
Garantie, réparation et dévolution.

Prix unitaire: 38,01 €

Ce prix est par unité et montre la valeur nette (excluant les taxes indirectes le cas échéant).

Calculer le prix par quantité

QuantitéPrix

Délai standard: 2-3 jours.

  • Ces délais sont estimatifs et peuvent varier une fois la commande de l'article traitée.

DERNIÈRE CONSULTÉS

EN SAVOIR PLUS

  • Mécanisme d'ouverture directe pour ouvrir le circuit en cas de soudure des contacts
  • Mécanisme de verrouillage pour éviter les erreurs de fonctionnement
  • Levier de verrouillage pour monter et retirer l'unité facilement
  • Utilisation d'un anneau de 25 de diamètre pour l'installation dans des découpes d'armoire d'un diamètre de 25.*
  • Sur un modèle doté d'un levier de verrouillage lié au contact, l'installation incorrecte de l'unité de commutation peut être détectée. (A22NE-PD)

Accessoires

Ordering information

Commonto Screw Terminal Block types (A22E)/Push-in Plus Terminal Blocktypes (A22NE-P/A22NE-PD) (Order Separately)

ItemAppearanceClassificationRemarksOrder code
Legend Plates for
Emergency Stop		bxkeojprrp.png60-dia. black letters on yellowback-groundUsed in combination with the washer rubber when the level of
protection is to be met between panels.		A22Z-3466-1
90-dia. black letters on yellowback-groundA22Z-3476-1
60-dia. black letters on yellowbackgroundCannot be used in combination with the Control Boxes.
Used in combination with the washer rubber when the level of
protection is to be met between panels.		A22Z-3466-2
Hole Plugochojeuisb.pngRoundUsed for covering the panel cutouts for future panel expansion.
Black color.		A22Z-3530
Connectorsjcwpoegyyg.pngApplicable cable diameter7 to 9 dia.Plastic connector used to extenda cable from the Switch Box.A22Z-3500-1
9 to 11 dia.A22Z-3500-2
25-dia. Ringqasfabxcjg.png–Use when mounting to a panel with a 25-dia. hole.
Material: Rubber, Level of protection: IP65
2
Switches with an IP69K degree of protectiondo not support the 25-dia.
A22Z-R25
30-dia.
Resin Attachment		flvxdmfwne.png–Use when mounting to a panel with a 30-dia. hole.
A rubber washer (A22Z-R) is provided with the product.		A22Z-A30
Lock Ringtrlurbjwjo.png–The body is equipped with a Lock Ring.
This Lock Ring is used when a more secure lock feature is
-required.		A22Z-3360
Tightening Tool–Used for tightening the mounting ring from the back side of the
panel, and for removing the cap in lighted models.		A22Z-3905
E-stop Shroud for EMO,
Yellow		huivcwsyyr.png–Provides SEMI-S2/SEMATECH APPLICATION GUIDE FOR SEMI-S2
compatibility. The SEMI-S2-compatible Shroud and legend
plate for EMERGENCY OFF come as a set. Use with an A22E
Emergency Stop Switch (for emergency shutoff)
2
These Shrouds are for use with the equipment only that conforms to SEMI standards. Do not use them for any other applications (e.g. emergency stop switches for machines or devices such as Machine tools, Printing presses, Industrial machinery, etc).
,
2
The Control Boxes cannot be used in combination with the A22Z-3476-1 Legend Plates for Emergency Stop or the A22Z-EG⬜ E-stop Shrouds.
A22Z-EG1
E-stop Shroud for EMO,
Yellow		mjzwkhjdkt.pngLegend plate for EMERGENCY OFF is not
-included.		Provides SEMI-S2/SEMATECH APPLICATION GUIDE FOR SEMI S2
compatibility. Use with an A22E with EMO indication.
(for -emergency off)
2
The Control Boxes cannot be used in combination with the A22Z-3476-1 Legend Plates for Emergency Stop or the A22Z-EG⬜ E-stop Shrouds.
A22Z-EG10
E-stop Shroud for EMS,
White		zhvlxygjnf.png–Provides SEMI-S2/SEMATECH APPLICATION GUIDE FOR SEMI-S2
compatibility. The SEMI-S2-compatible Shroud and legend
plate for EMERGENCY STOP come as a set. Use with an A22E
Emergency Stop Switch. (for emergency stop)
2
These Shrouds are for use with the equipment only that conforms to SEMI standards. Do not use them for any other applications (e.g. emergency stop switches for machines or devices such as Machine tools, Printing presses, Industrial machinery, etc).
,
2
The Control Boxes cannot be used in combination with the A22Z-3476-1 Legend Plates for Emergency Stop or the A22Z-EG⬜ E-stop Shrouds.
A22Z-EG1-W
E-stop Shroud for EMS,
White		ufgafvwlzr.pngLegend plate for EMERGENCY STOP is not
-included.		Provides SEMI-S2/SEMATECH APPLICATION GUIDE FOR SEMI S2
compatibility. Use with an A22E with EMS indication.
(for emergency stop)
2
The Control Boxes cannot be used in combination with the A22Z-3476-1 Legend Plates for Emergency Stop or the A22Z-EG⬜ E-stop Shrouds.
A22Z-EG10-W
E-stop Shroud, Yellowiimlbnxhnb.pngSpacer Unit is not included.SEMI-S2/SEMATECH APPLICATION GUIDE FOR SEMI
S2-compatible Shroud. (for emergency shutoff)
2
These Shrouds are for use with the equipment only that conforms to SEMI standards. Do not use them for any other applications (e.g. emergency stop switches for machines or devices such as Machine tools, Printing presses, Industrial machinery, etc).
,
2
The Control Boxes cannot be used in combination with the A22Z-3476-1 Legend Plates for Emergency Stop or the A22Z-EG⬜ E-stop Shrouds.

Use together with an A22E Emergency Stop Switch.		A22Z-EG2
One Spacer Unit is included.A22Z-EG21
Two Spacer Units are included.A22Z-EG22
E-stop Shroud for EMO,
Yellow		owdidyjnbl.png–Provides SEMI-S2/SEMATECH APPLICATION GUIDE FOR SEMI-S2
compatibility. The SEMI-S2-compatible Shroud and legend
plate for EMERGENCY OFF come as a set. Use with an A22E
Emergency Stop Switch. (for emergency shutoff)
2
These Shrouds are for use with the equipment only that conforms to SEMI standards. Do not use them for any other applications (e.g. emergency stop switches for machines or devices such as Machine tools, Printing presses, Industrial machinery, etc).
,
2
The Control Boxes cannot be used in combination with the A22Z-3476-1 Legend Plates for Emergency Stop or the A22Z-EG⬜ E-stop Shrouds.
A22Z-EG3
Rubber Packingdiczuklmcs.png–Used together with accessories.
Contains 10 packings.		A22Z-R
Note:
  1. Accessories forA22Z-EG1: one “EMERGENCY OFF” label, two rubber packings, and onelock ring
  2. Accessories for A22Z-EG10: one rubber packing and one lock ring(without label)

ETIM for 234627 Appareillage industriel basse tension (EC000624)

Nom de la caractéristiqueForme (EF000051)
Valeur de la caractéristiqueRond
Nom de la caractéristiqueImpression symboles ISO (EF006094)
Valeur de la caractéristiqueSans
Nom de la caractéristiqueLangue de l'impression (EF015922)
Valeur de la caractéristiqueAutre
Nom de la caractéristiqueSignification de l'impression (EF015918)
Valeur de la caractéristiqueSans
Nom de la caractéristiqueCouleur (EF000007)
Valeur de la caractéristiqueJaune
Nom de la caractéristiqueDiamètre externe (EF000015)
Valeur de la caractéristique105 mm
