CS1D-PD024 CS1D0008F CS1DPD024 OMRON Alimentation 24 Vdc pour CS1 Duplex

19.2 to 28.8 VDC

40 W max.

6.6 A

0.62 A

30 W

-

C200HW-PD024

4.3 A

0.56 A

28 W

Power supply for dual-redundant system

CS1D-PD024

55 VA max.

5.3 A

1.3 A

40 W

-

C200HW-PD025

Power supply for dual-redundant system

CS1D-PD025

85 to 264 VAC
50/60 Hz

120 VA max.

4.6 A

0.62 A

30 W

Maintenance status display

C200HW-PA204C

85 to 132 VAC,
170 to 264 VAC,
50/60 Hz

-

C200HW-PA204

Service output 24 VDC, 0.8 A

C200HW-PA204S

Run status output (SPST relay)

C200HW-PA204R

180 VA max.

9.0 A

1.3 A

45 W

Run status output (SPST relay)

C200HW-PA209R

150 VA max.

7.0 A

1.3 A

35 W

Power supply for dual-redundant system

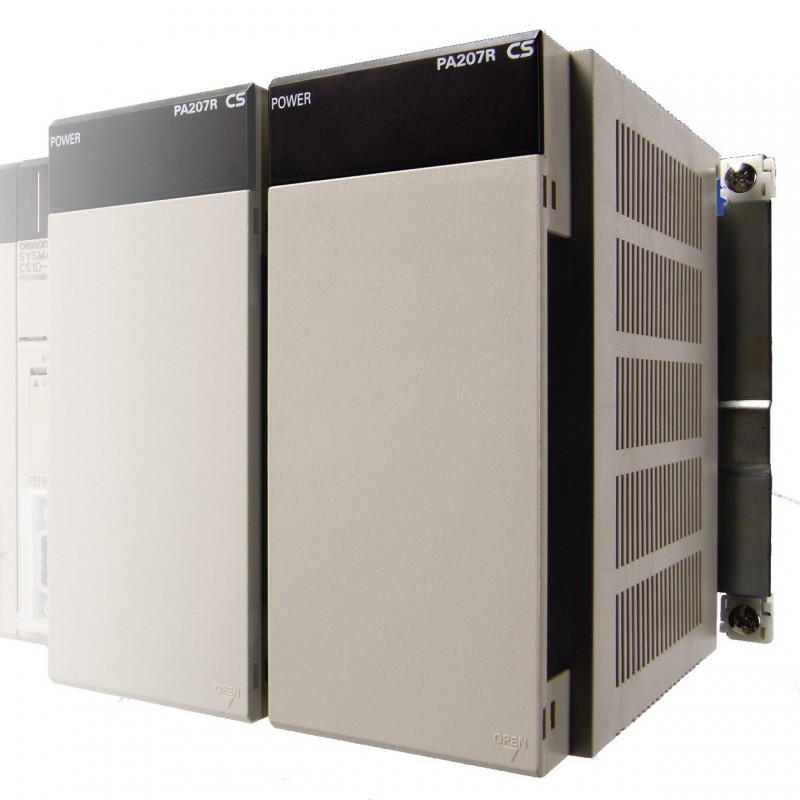

CS1D-PA207R

CPU backplane

2

No

200 mm

-

CS1W-BC023

CPU backplane

3

Yes

260 mm

-

CS1W-BC033

CPU backplane

5

Yes

330 mm

-

CS1W-BC053

CPU backplane

8

Yes

435 mm

-

CS1W-BC083

CPU backplane

10

Yes

505 mm

-

CS1W-BC103

Expansion backplane

3

Yes

260 mm

-

CS1W-BI033

Expansion backplane

5

Yes

330 mm

-

CS1W-BI053

Expansion backplane

8

Yes

435 mm

-

CS1W-BI083

Expansion backplane

10

Yes

505 mm

-

CS1W-BI103

CPU backplane

5

Yes

505 mm

For Duplex CPU + Power supplies

CS1D-BC052

CPU backplane

8

Yes

505 mm

For Duplex Power supplies

CS1D-BC082S

Expansion backplane

9

Yes

505 mm

For Duplex Power supplies

CS1D-BI092

I/O Expansion cable to connect CS1 CPU backplane or
Expansion backplane to next
Expansion backplane.

0.3 m

CS1W-CN313

0.7 m

CS1W-CN713

2.0 m

CS1W-CN223

3.0 m

CS1W-CN323

5.0 m

CS1W-CN523

10.0 m

CS1W-CN133

12.0 m

CS1W-CN133-B2
