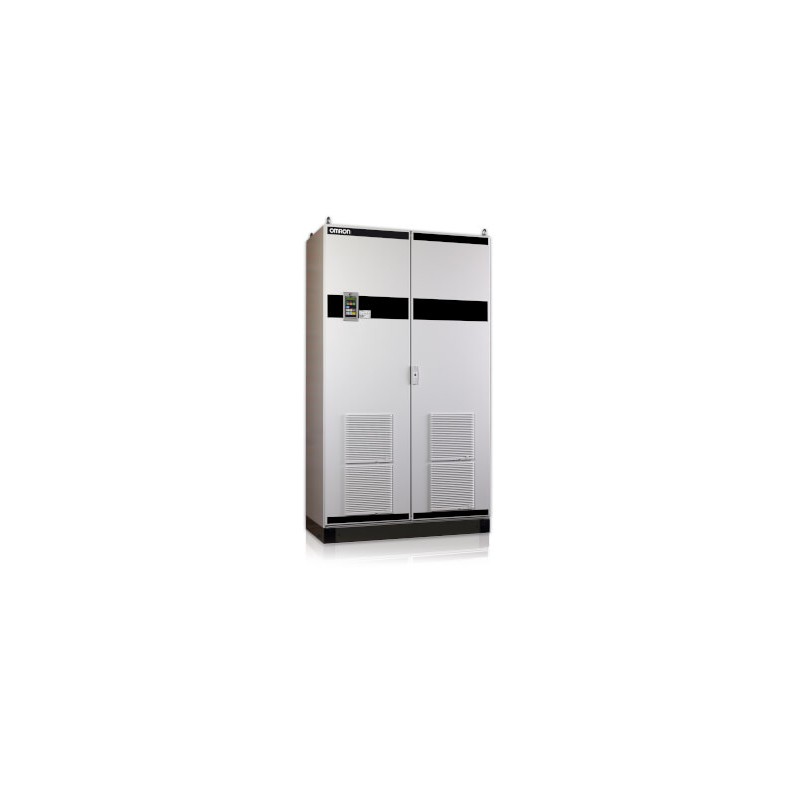

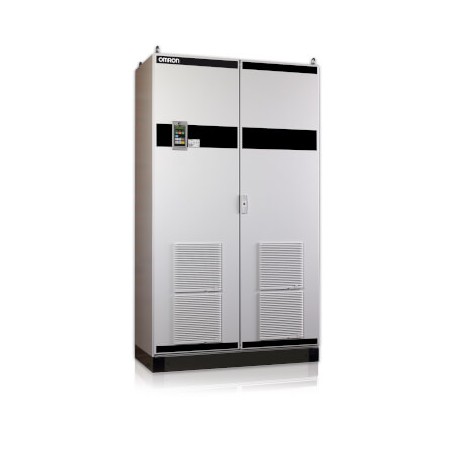

01-3876-12 366952 01387612PROFINETSX2PORT OMRON La série SX PROFINET IO option 2 ports
01-3876-12
366952
01387612PROFINETSX2PORT
OMRON
La série SX PROFINET IO option 2 ports
Variateurs de fréquence > Accessoires Variateurs de fréquence
Produit neuf dans son emballage d'origine avec toutes les garanties et les certifications émises par OMRON
Les plus vendus
▲En savoir plus
▲Force et flux en harmonie
Conçue pour toute application haute puissance de 90 kW jusqu'à 1 MW, la nouvelle série SX de variateurs compacts intègre des fonctionnalités dédiées à l'application en plus de la programmation logique et des informations LCD personnalisables pour vous fournir toute la souplesse de contrôle requise pour des applications allant du couple élevé au flux régulier en passant par le contrôle de pression.
- Alimentation 500 V-690 V de 90 kW jusqu'à 1 MW
- Gamme complète IP54
- Conception compacte et robustesse
- Filtre EMC intégré pour toute la famille et fusibles à partir de 200 kW
- Sécurité conformément aux normes EN13849-1 et EN62061
- Programmabilité logique
- Personnalisation du matériel
- Options de communication (EtherCAT, PROFINET, Modbus, DeviceNet, PROFIBUS, Modbus TCP)
Ordering information
SX
Specifications | Order code | |||||||
|---|---|---|---|---|---|---|---|---|
Voltage | Heavy duty | Normal duty | IP54 model | IP20 model | ||||
Direct torque control | V/F | Direct torque control | V/F | |||||
690 V | 75 kW | 72 A | 90 kW | 90 A | SX-D6090-EF | SX-D6090-EV | - | - |
90 kW | 87 A | 110 kW | 109 A | SX-D6110-EF | SX-D6110-EV | |||
110 kW | 117 A | 132 kW | 146 A | SX-D6132-EF | SX-D6132-EV | |||
132 kW | 140 A | 160 kW | 175 A | SX-D6160-EF | SX-D6160-EV | |||
160 kW | 160 A | 200 kW | 200 A | SX-D6200-E1F | SX-D6200-E1V | |||
200 kW | 200 A | 250 kW | 250 A | SX-D6250-E1F | SX-D6250-E1V | SX-A6250-EF | SX-A6250-EV | |
250 kW | 240 A | 315 kW | 300 A | SX-D6315-E1F | SX-D6315-E1V | SX-A6315-EF | SX-A6315-EV | |
315 kW | 300 A | 355 kW | 375 A | SX-D6355-E1F | SX-D6355-E1V | SX-A6355-EF | SX-A6355-EV | |
315 kW | 344 A | 450 kW | 430 A | SX-D6450-E1F | SX-D6450-E1V | SX-A6450-EF | SX-A6450-EV | |
355 kW | 400 A | 500 kW | 500 A | SX-D6500-E1F | SX-D6500-E1V | SX-A6500-EF | SX-A6500-EV | |
450 kW | 480 A | 600 kW | 600 A | SX-D6600-E1F | SX-D6600-E1V | SX-A6600-EF | SX-A6600-EV | |
500 kW | 520 A | 630 kW | 650 A | SX-D6630-E1F | SX-D6630-E1V | SX-A6630-EF | SX-A6630-EV | |
600 kW | 576 A | 710 kW | 720 A | SX-D6710-E1F | SX-D6710-E1V | SX-A6710-EF | SX-A6710-EV | |
650 kW | 640 A | 800 kW | 800 A | SX-D6800-E1F | SX-D6800-E1V | SX-A6800-EF | SX-A6800-EV | |
710 kW | 720 A | 900 kW | 900 A | SX-D6900-E1F | SX-D6900-E1V | SX-A6900-EF | SX-A6900-EV | |
800 kW | 800 A | 1,000 kW | 1,000 A | SX-D61K0-E1F | SX-D61K0-E1V | SX-A61K0-EF | SX-A61K0-EV | |
APanel kit
Type | Description | Function | Order code |
|---|---|---|---|
Panel kit | Panel kit | Complete panel kit including operator | SX-OP02-00-E |
Blank panel kit | Complete panel kit including a blank operator | SX-OP02-01-E | |
Operator | Handheld control panel | Complete handheld control panel | SX-OPHH-00-E |
Digital operator | Inverter digital operator | SX-OP01-00-E | |
Blank operator | Blank operator | SX-OP01-11-E |
②I/O option board
Description | Function | Order code |
|---|---|---|
Additional I/O option | Provides 3 extra relay outputs and 3 additional digital inputs | 01-3876-01 |
Crane option | Dedicated option board for crane application, including additional I/O and functions | 01-3876-07 |
③Communication option board
Description | Function | Order code |
|---|---|---|
RS232/485 | MODBUS RTU serial communication by RS232 or RS485 interface with galvanic isolation | 01-3876-04 |
PROFIBUS-DP | Used for operating the inverter through PROFIBUS-DP communication with the host controller | 01-3876-05 |
DeviceNet | Used for operating the inverter through DeviceNet communication with the host controller | 01-3876-06 |
Modbus/TCP, Ethernet | Used for operating the inverter through Modbus/TCP communication with the host controller | 01-3876-09 |
EtherCAT | Used for operating the inverter through EtherCAT communication with the host controller | 01-3876-10 |
PROFINET (1-port) | Used for operating the inverter through PROFINET communication with the host controller | 01-3876-11 |
PROFINET (2-ports) | 01-3876-12 |
④Encoder feedback option card
Description | Function | Order code |
|---|---|---|
Encoder option | Used for connection of the actual motor speed via encoder. Up to 100 kHz with TTL and HTL incremental encoders with 5/24 V power supply | 01-3876-03 |
⑤PTC/PT100 option card
Description | Function | Order code |
|---|---|---|
Thermal protection | Allows to connect a motor thermistor to the inverter | 01-3876-08 |
⑥Braking chopper and braking resistor
All inverter sizes could be fitted with an optional built-in brake chopper from factory but is not possible to install it later. The choice of the resistor depends on the application switch-on duration and duty-cycle. Following tables describes the activation level of the built-in braking chopper and the minimum resistor that could be used depending on the input voltage.
Rmin for different input voltage (Ω) | Order code | ||
|---|---|---|---|
500-525 VAC | 550-600 VAC | 660-690 VAC | |
4.9 | 5.7 | 6.5 | SX-D6090-EF |
4.9 | 5.7 | 6.5 | SX-D6110-EF |
4.9 | 5.7 | 6.5 | SX-D6132-EF |
4.9 | 5.7 | 6.5 | SX-D6160-EF |
2 × 4.9 | 2 × 5.7 | 2 × 6.5 | SX-D6200-EF |
2 × 4.9 | 2 × 5.7 | 2 × 6.5 | SX-D6250-EF |
2 × 4.9 | 2 × 5.7 | 2 × 6.5 | SX-D6315-EF |
2 × 4.9 | 2 × 5.7 | 2 × 6.5 | SX-D6355-EF |
3 × 4.9 | 3 × 5.7 | 3 × 5.7 | SX-D6450-EF |
3 × 4.9 | 3 × 5.7 | 3 × 5.7 | SX-D6500-EF |
4 × 4.9 | 4 × 5.7 | 4 × 5.7 | SX-D6600-EF |
4 × 4.9 | 4 × 5.7 | 4 × 5.7 | SX-D6630-EF |
6 × 4.9 | 6 × 5.7 | 6 × 5.7 | SX-D6710-EF |
6 × 4.9 | 6 × 5.7 | 6 × 5.7 | SX-D6800-EF |
6 × 4.9 | 6 × 5.7 | 6 × 5.7 | SX-D6900-EF |
6 × 4.9 | 6 × 5.7 | 6 × 5.7 | SX-D61K0-EF |
Supply voltage (VAC) | Built-in brake chopper trigger level (VDC) |
|---|---|
500-525 | 860 |
550-600 | 1,000 |
660-690 | 1,150 |
⑦Output coils
Output coils above SX-D4132-E should be order from factory as they should be installed inside of the cabinet
Voltage | Inverter model | Rated current | Inductance | Rated voltage | Max carrier | Max. output frequency | Max. temp | Order code |
|---|---|---|---|---|---|---|---|---|
690 V | SX-D6090-EF | 90 A | 0.1 mH | 800 V | 6 kHz | 200 Hz | 40ºC | 473169 00 |
SX-D6110-EF | 146 A | 0.05 mH | 6 kHz | 200 Hz | 473170 00 | |||
SX-D6132-EF | ||||||||
SX-D6160-EF | 175 A | 0.05 mH | 6 kHz | 200 Hz | 473171 00 |
⑧Overshoot clamp
Note:Only two types of overshoot clamps could be order for after mounting
Inverter | Function | Order code |
|---|---|---|
SX-6090 to SX-6160 | Together with the output coils, the overshoot clamp restricts the voltage and the dV/dt on the motor winding. | 52163 |
SX-6200 to SX-61K0 | Together with the output coils, the overshoot clamp restricts the voltage and the dV/dt on the motor winding. | 52220 |
Computer software
Installation | Order code |
|---|---|
Configuration and monitoring software tool | CX-Drive |
Configuration and monitoring software tool | CX-One |
Software tool for energy saving calculation | €Saver |
Specifications
Three-phase: SX-_6__-E_ | 90 | 110 | 132 | 160 | 200 | 250 | 315 | 355 | 450 | 500 | 600 | 630 | 710 | 800 | 900 | 1K0 | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Motor | For HD setting | 75 | 90 | 110 | 132 | 160 | 200 | 250 | 315 | 315 | 355 | 450 | 500 | 600 | 650 | 710 | 800 |
For ND setting | 90 | 110 | 132 | 160 | 200 | 250 | 315 | 355 | 450 | 500 | 600 | 630 | 710 | 800 | 900 | 1,000 | |
Output | Max output current (A) | 108 | 131 | 175 | 210 | 252 | 300 | 360 | 450 | 516 | 600 | 720 | 780 | 900 | 1,032 | 1,080 | 1,200 |
Rated output current (A) at HD | 72 | 87 | 117 | 140 | 160 | 200 | 240 | 300 | 344 | 400 | 480 | 520 | 576 | 640 | 720 | 800 | |
Rated output current (A) at ND | 90 | 109 | 146 | 175 | 200 | 250 | 300 | 375 | 430 | 500 | 600 | 650 | 720 | 800 | 900 | 1,000 | |
Output voltage | 0 to Mains supply voltage | ||||||||||||||||
Max. output frequency | 400 Hz | ||||||||||||||||
Power | Rated input voltage and frequency | 3-phase 500 to 690 V, 50/60 Hz | |||||||||||||||
Allowable voltage fluctuation | 10% to -15% | ||||||||||||||||
Allowable frequency fluctuation | 45 to 65 Hz | ||||||||||||||||
Dimensions
Degree of protection | Drive model | H | W | D | |
|---|---|---|---|---|---|
IP20 | SX-A6250 to SX-A6355 | 1,176 | 500 | 450 | |
SX-A6450 to SX-A6600 | 1,176 | 730 | 450 | ||
SX-A6630 to SX-A6800 | 1,176 | 1,100 | 450 | ||
SX-A6900 to SX-A61K0 | 1,176 | 1,365 | 450 | ||
IP54 | SX-D6090 to SX-D6200 | 952.5 | 344.5 | 314 | |
SX-D6250 to SX-D6355 | 2,250 | 600 | 600 | ||
SX-D6450 to SX-D6600 | 2,250 | 900 | 600 | ||
SX-D6630 to SX-D6800 | 2,250 | 1,200 | 600 | ||
SX-D6900 to SX-D61K0 | 2,250 | 1,500 | 600 |
1.Based on a standard 4-pole motor for maximum applicable motor output
