2TMA200050W0007 RT/U 30.0.1-811 NIESSEN Room Touch 5 », blanc
2TMA200050W0007
RT/U 30.0.1-811
NIESSEN

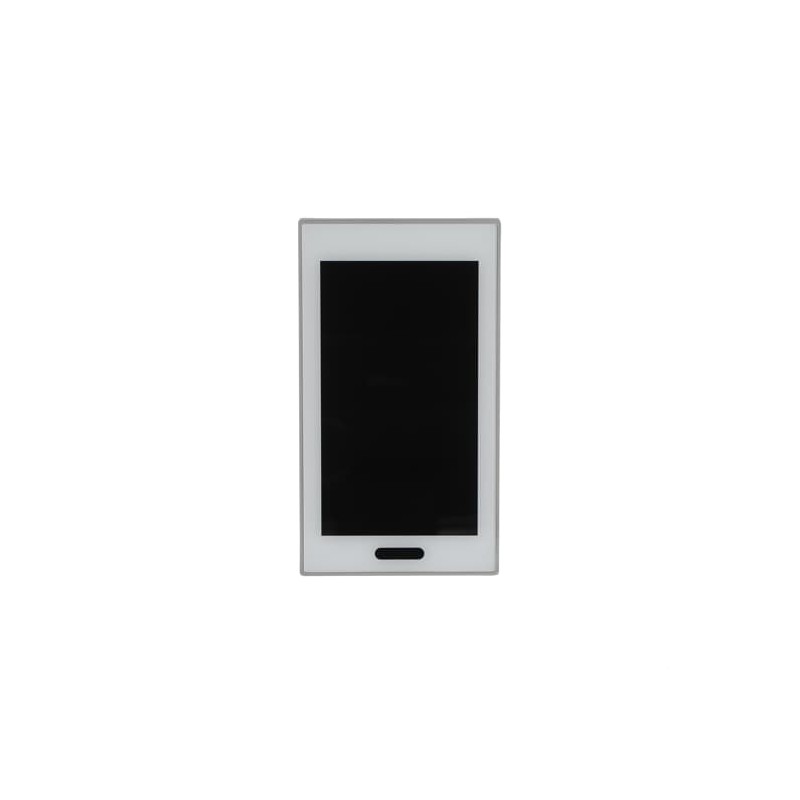

Room Touch 5 », blanc
Multifunctional HD IPS KNX touchdisplay as a room control element for visualisation and control of all functions in a KNX system. For the display and intuitive control of the following standard KNX functions: Switching, rocker switch, dimming (4-bit and 8-bit), slider, blind, RGBW control element, room temperature control element, Split Unit control element, step switch, scene switch, display element or audio control element. Additional functions: 20 fault and alarm messages, 10 logic functions, 10 timers each with 6 switching times, 4 scene actuators, 1 room temperature controller and individual pages can be protected with a PIN code. Status display, display of date and time, as well as inside and outside temperature. Installed temperature sensor, proximity sensor and brightness sensor. With a push-button/switch input and external temperature sensor input. Page display with a maximum of 30 touch surfaces on 6 or 10 pages (dependent on the mounting method). Viewing angle display: 160° - 160°. Mounting via a separate flush-mounted box. External power supply: 20-32 VDC (SELV).
KNX-EIB
* Produit neuf dans son emballage d'origine avec toutes les garanties et les certifications émises par NIESSEN
En savoir plus
▲- Extension du type de produit:
- RT/U30.0.1-811
- Code de produit:
- 2TMA200050W0007
- EAN:
- 6955891816183
- Description courte:
- RT/U30.0.1-811 RoomTouch 5 -811
- Description longue:
- Multifunctional HD IPS KNX touchdisplay as a room control element for visualisation and control of all functions in a KNX system. For the display and intuitive control of the following standard KNX functions: Switching, rocker switch, dimming (4-bit and 8-bit), slider, blind, RGBW control element, room temperature control element, Split Unit control element, step switch, scene switch, display element or audio control element. Additional functions: 20 fault and alarm messages, 10 logic functions, 10 timers each with 6 switching times, 4 scene actuators, 1 room temperature controller and individual pages can be protected with a PIN code. Status display, display of date and time, as well as inside and outside temperature. Installed temperature sensor, proximity sensor and brightness sensor. With a push-button/switch input and external temperature sensor input. Page display with a maximum of 30 touch surfaces on 6 or 10 pages (dependent on the mounting method). Viewing angle display: 160° - 160°. Mounting via a separate flush-mounted box. External power supply: 20-32 VDC (SELV).
Installation
- Instructions et manuels:
- 2TMU190000M0049
Technique
- Fiche produit, informations techniques:
- No document needed
- Auxiliary Voltage AC/DC:
- 20 V AC/DC
32 V AC/DC
- Compatible Bus Systems:
- KNX (TP)
- Product Range:
- KNX
- Type de montage:
- Flush Mounted
- RAL Number:
- Similar to RAL 9016
- Couleur:
- studio white
- Taille d'écran:
- 5 in
- Application Function:
- Blind / Shutter / Shading Control
Electrical Load and Light Control
Data Communication / Multimedia
Room Climate Control
Safety and Security
Environnement
- Statut RoHS:
- Following EU Directive 2011/65/EU
- Informations RoHS:
- 9AKK107680A8249
- REACH Declaration:
- 2CKA309999E9999
- Conflict Minerals Reporting Template (CMRT):
- 9AKK108468A3363
Dimensions
- Poids net:
- 367g
Certificats et Déclarations (Numéro de document)
- Déclaration de Conformité - CE:
- 9AKK107680A8246
Classifications
- ETIM 8:
- EC001585 - Multi operating device for bus system
- ETIM 9:
- EC001585 - Multi operating device for bus system
- Catégorie DEEE:
- 5. Small Equipment (No External Dimension More Than 50 cm)
- WEEE B2C / B2B:
- Business To Consumer
- CN8:
- 8537 10 91
- eClass:
- V11.0 : 27143101
Datasheet - PDF
▲| Titre: | Taille: | Type: |
|---|---|---|
| PDF Catalogue Sky Niessen EN.pdf | 15 Mbytes |
|
| PDF Catalogue Zenit EN.pdf | 19 Mbytes |
|
| 2TMA200050W0007 RT/U 30.0.1-811 FR_2TMA200050W0007.pdf | 103 Kbytes |
|
