51ADX0075B
ADX0075B
LOVATO ELECTRIC
1

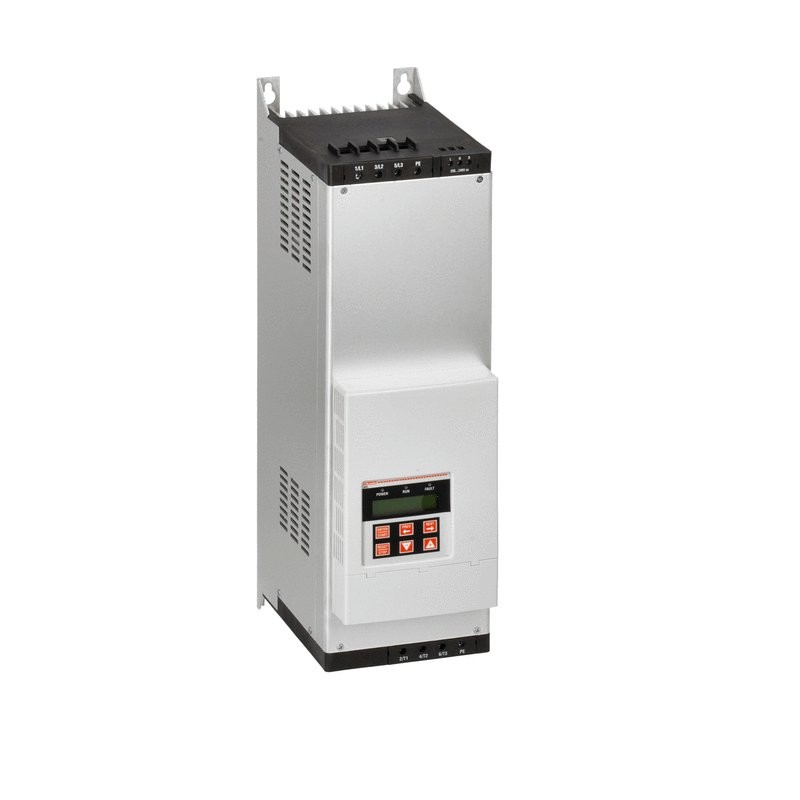

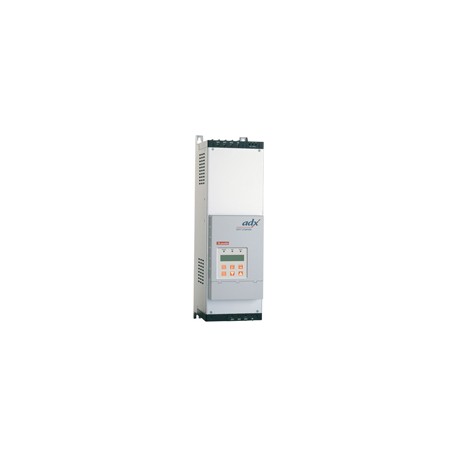

SOFT STARTER ADX0075B
Démarreur statique ADX. B avec by-pass intégré (applications sévères, courant de démarrage = 5Ie) 75A
DÉMARREUR PROGRESSIF, TYPE ADX, POUR UN USAGE INTENSIF (COURANT DE DÉPART 5•IE). AVEC CONTACTEUR BY-PASS INTÉGRÉ, 75A
Démarreurs progressifs - LOVATO ELECTRIC
* Produit neuf dans son emballage d'origine avec toutes les garanties et les certifications émises par LOVATO ELECTRIC
Merci de vous intéresser à nos produits, nous espérons que le délai indiqué soit de votre convenance.
Pendant le traitement de la commande, vous pouvez sélectionner le type d'envoi qui vous convient. Aérien Express 24Hrs, Terrestres Standard 48/72Hres, etc.
Code de commande : | 51ADX0075B |
Poids [g] | 14400 |
Quantité paquet produit | 1 |
Quantité paquets multiples | 1 |
Dimensions [mm] de l'emballage du produit | 550X165X270 |
Volume [cm³] | 24502.5 |
Code à barres [EAN13] | 8013975068243 |
Code HS | 85371098 |
Product designation | Soft Starter | |||
Product type designation | ADX…B | |||
Motor type | Asynchronous three phase | |||
Electrical features | ||||
Supplies voltage | ||||
Type of system | Three phase | |||
Rated supply voltage | V | 208…500VAC | ||
auxiliary supply voltage (Us) | 208…240VAC | |||
Rated frequency | Hz | 50/60 | ||
Rated starter current Ie | A | 75 | ||
Rated motor power | ||||
IEC ratings (T≤40°C) | ||||
230VAC | kW | 18.5 | ||
400VAC | kW | 37 | ||
500VAC | KW | 45 | ||
UL ratings (T≤40°C) | ||||
220-240VAC | HP | 25 | ||
380-415VAC | HP | 40 | ||
440-480VAC | HP | 50 | ||
Number of controlled phases | Nr. | 3 | ||
Built-in bypass | Yes | |||
Cooling System | Forced | |||
Programming interface | ||||
Display | Backlit LCD 2x16 character | |||
Programming with NFC technology | No | |||
Optical port | No | |||
Startup and stop settings | ||||
Startup method | Torque or voltage ramp with current limitation | |||
Stop method | Torque ramp, voltage ramp, free-wheel stop | |||
Braking method | DC dynamic with external relay | |||
Protections | ||||
Auxiliary supply protection | Voltage too low | |||
Power supply Protection | No power, phase loss, phase sequence, frequency out of limits, minimum and maximum voltage | |||
Motor protection | Overload at starting (trip class 2, 10A, 10, 15, 20, 25, 30, 35 and 40), overload during running (trip class 2, 10A, 10, 15, 20, 25 and 30), locked rotor, current asymmetry, minimum torque (dry run), overtemperature , starting too long | |||
Starter protection | Overcurrent, overtemperature, bypass failure, phase shorted, temperature sensor fault, maintenance request | |||
Input and Output | ||||
Digital inputs | ||||
Number of digital input | Nr. | 3 (2 digital inputs + 1 digital/analog input) | ||
Digital input type | 24VDC (no need for external feeder) | |||
Digital input functions | 1 input for start, 1 input programmable (stop, free-wheel stopping, external alarm, motor preheat, local control, alarms inhibit, manual resetting of motor thermal protection, keypad lock, second motor), 1 input programmable multifunction (OFF, free-wheel | |||
Analog inputs | ||||
Number of analog input | Nr. | 1 (digital/analog) | ||
Analog input type | 0-10VDC (0-20mA with external resistor 500Ω) | |||
Analog input functions | Motor protection via PTC probes, acceleration and/or deceleration ramp via analog input, analog input thresholds for motor starting and stopping, analog input thresholds for programmable relay enable and disable, PT100 input thresholds for motor starting a | |||
Digital outputs | ||||
Number of digital output | Nr. | 4 | ||
Digital output arrangement | 3 x 1 NO (SPST) + 1 C/O (SPDT)Ratings: 5A 250VAC AC1, 2A 250VAC AC15 | |||
Digital output functions | C/O output for global alarm, 3 x 1NO outputs programmable (OFF, motor powered, up to speed, braking, current limit, service required, cascade starting, programmable input thresholds, alarm Axx) | |||
Analog outputs | ||||
Number of analog output | Nr. | 1 | ||
Analog output type | 0...20mA, 4...20mA (0...10V with external resistor 500Ω) | |||
Analog output functions | Current, torque, motor thermal status, power factor and active power | |||
Ambient conditions | ||||
Temperature | ||||
Operating temperature | ||||
min | °C | -10 | ||
max | °C | +55°C (with current derating >45°C of 1.5%/°C ) | ||
Storage temperature | ||||
min | °C | -30 | ||
max | °C | +70 | ||
Max altitude | m | 1000 without derating (over 1000mt with current derating of 0.5%/100m) | ||
Relative humidity | % | 95% without condensation or dripping | ||
Pollution degree | 3 | |||
Housing | ||||
Mounting | Screw-fixing | |||
IP degree of protection | IP20 | |||
Dimensions (W x H x D) | mm | 157 x 534 x 250 | ||
Weight | Kg | 14.4 | ||
ETIM classification | ||||
ETIM 8.0 | EC000640 - Soft starter |
