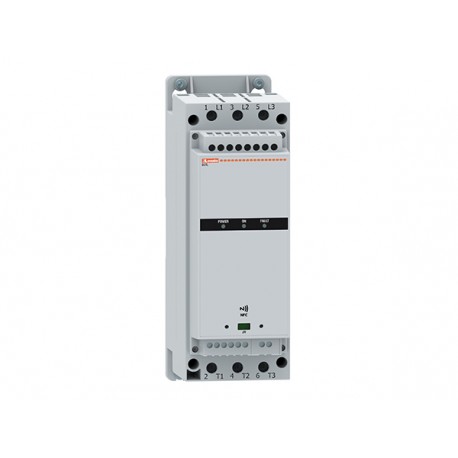

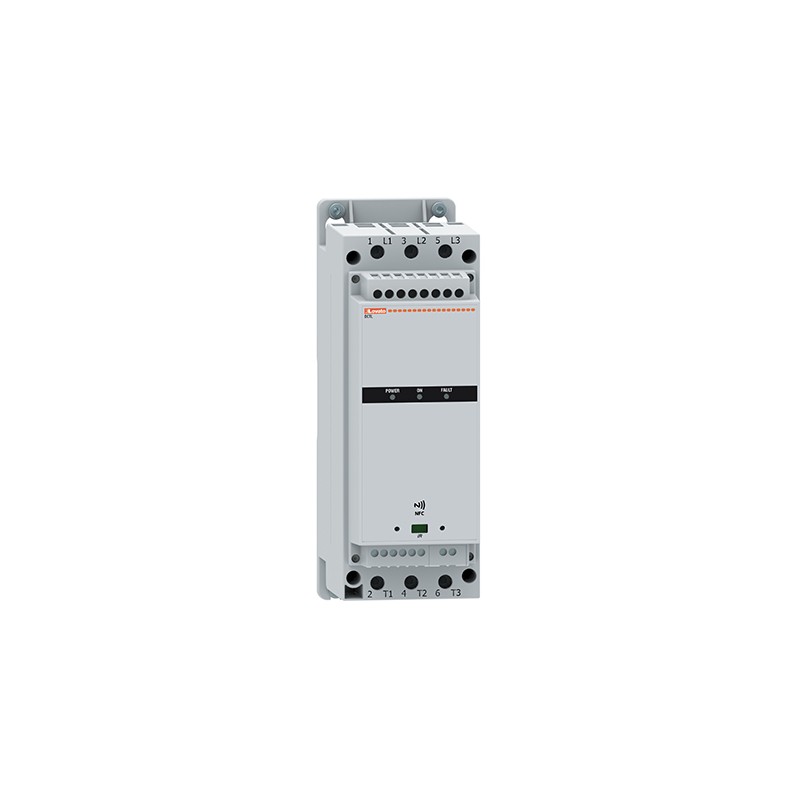

DCTLA4800090 LOVATO Module de thyristor 11A 9Kvar 480V
DCTLA4800090
LOVATO ELECTRIC
Module de thyristor 11A 9Kvar 480V
Module thyristor, 9kvar à 480VAC, tension de fonctionnement nominale 400...480VAC, avec contrôle du courant
Régulateurs varmétriquess - LOVATO ELECTRIC
* Produit neuf dans son emballage d'origine avec toutes les garanties et les certifications émises par LOVATO ELECTRIC
En savoir plus
▲| Code de commande : | DCTLA4800090 |
| Poids [g] | 1940 |
| Quantité paquet produit | 1 |
| Quantité paquets multiples | 1 |
| Dimensions [mm] de l'emballage du produit | 232X107X200 |
| Volume [cm³] | 4964.8 |
| Code à barres [EAN13] | 8013975237984 |
| Code HS | 85371098 |
Dimensions
Schéma électrique
Certifications :
cULus
cULus
Conformité :
IEC/EN 60947-4-3
IEC/EN 61000-6-2
IEC/EN 61000-6-4
IEC/EN 60947-4-3
IEC/EN 61000-6-2
IEC/EN 61000-6-4
| Product designation | Thyristor modules | |||
| Product type designation | DCTL | |||
| General characteristics | ||||
| Rated voltage | V | 400…480 | ||
| Operating voltage range | 340…528 | |||
| Rated frequency | Hz | 50/60 | ||
| Operating frequency range | Hz | 45…65 | ||
| Rated current (Ie) | A | 11 | ||
| Step power at | ||||
| 400VAC | kvar | 9 | ||
| 440VAC | kvar | 8 | ||
| 480VAC | kvar | 9 | ||
| Peak inverse voltage (PIV) | VAC | 2200 | ||
| Number of controlled phases | Nr. | 2 | ||
| Control circuit | 12-24VDC input or free-voltage input or via RS485 serial port (with optional card EXC1042 in combination with controller DCRG8F + EXP1012) | |||
| Auxiliary supply | ||||
| Rated auxiliary supply voltage Us | ||||
| AC | ||||
| min | VAC | 100 | ||
| Max | VAC | 240 | ||
| Auxiliary rated frequency | Hz | 50/60 | ||
| Power consumption Max | VA | 11.8 | ||
| Power dissipation Max | W | 4.6 | ||
| Control input | ||||
| Terminals | CONTROL +/- | |||
| Rated voltage | 12-24VDC | |||
| Operating range | 8…30VDC | |||
| Digital inputs | ||||
| Terminals | C-IN1 | |||
| Applied voltage at contact (internal) | 5VDC | |||
| Input current | mA | ≤10 | ||
| Low input signal | VDC | ≤0.8 | ||
| High input signal | VDC | ≥3.2 | ||
| Input signal delay | ms | ≥50 | ||
| NTC probe input | ||||
| Terminals | NTC-NTC | |||
| Sensor type | NTC (ordering code NTC01) | |||
| Measuring range | °C | -25…+85 | ||
| Maximum connection lenght | mt | 3 | ||
| Fan power supply | ||||
| Terminals | FAN +/- | |||
| Supply voltage (internal) | 5VDC (provided by DCTL) | |||
| Fan type | 1 built-in fan type EXP8004 | |||
| Relay outputs | ||||
| Number of relay output | Nr. | 1 | ||
| Contact arrangement | 1 C/O-SPDT | |||
| Rated current | NO contact: AC1 5A 250VAC / 5A 30VDCNC contact: AC1 3A 250VAC / 3A 30VDC | |||
| UL/CSA and IEC/EN 60947-5-1 designation | D300 | |||
| Maximum switching voltage | VAC | 250 | ||
| Electrical life (with rated load) | cycles | NO contact: 10x103 NC contact: 20x103 | ||
| Mechanical life | cycles | 107 | ||
| Insulations | ||||
| Rated insulation voltage Ui IEC/EN | V | 480 | ||
| Rated impulse withstand voltage Uimp | kV | 4 | ||
| Connections - power terminals | ||||
| Type of terminal | Fixed - double lock clamp | |||
| Conductor cross section | ||||
| min | mm² | 2 x 2.5 | ||
| Max | mm² | 2 x 35 | ||
| min | AWG | 2 x 18 | ||
| Max | AWG | 2 x 2 | ||
| Tightening torque (Max) | ||||
| Nm | 4-5 | |||
| lbin/lbft | 2.95-3.69 Ibft | |||
| Connections - relay output | ||||
| Type of terminal | Screw | |||
| Conductor cross section | ||||
| min | mm² | 0.2 | ||
| Max | mm² | 4 | ||
| min | AWG | 26 | ||
| Max | AWG | 10 | ||
| Tightening torque (Max) | ||||
| Nm | 0.8 | |||
| lbin | 7 | |||
| Connections - fan and digital input | ||||
| Type of terminal | Screw | |||
| Conductor cross section | ||||
| min | mm² | 0.2 | ||
| Max | mm² | 2.5 | ||
| min | AWG | 24 | ||
| Max | AWG | 12 | ||
| Tightening torque (Max) | ||||
| Nm | 0.44 | |||
| lbin | 4 | |||
| Ambient conditions | ||||
| Temperature | ||||
| Operating temperature | ||||
| min | °C | -20 | ||
| max | °C | +45°C without derating (up to 55°C with derating) | ||
| Storage temperature | ||||
| min | °C | -30 | ||
| max | °C | +80 | ||
| Relative humidity | % | <80% | ||
| Maximum Pollution degree | 2 | |||
| Overvoltage category | III | |||
| Max altitude | m | 2000m wihtout derating | ||
| Climatic sequence | Z/ABDM (IEC/EN 60068-2-61) | |||
| Shock resistance | 15g (IEC/EN 60068-2-27) | |||
| Vibration resistance | 0.7g (IEC/EN 60068-2-6) | |||
| Housing | ||||
| Execution | Internal panel version | |||
| Material | Polycarbonate | |||
| Mounting | Screw fixing or DIN-rail (IEC/EN 60715) with optional accessory EXP8003 | |||
| Degree of protection | IP00 | |||
| Dimensions (W x H x D) | mm | 75 x 218 x 171.5 | ||
| Weight | g | 1740 | ||
| ETIM classification | ||||
| ETIM 8.0 | EC002055 - Solid state relay | |||
