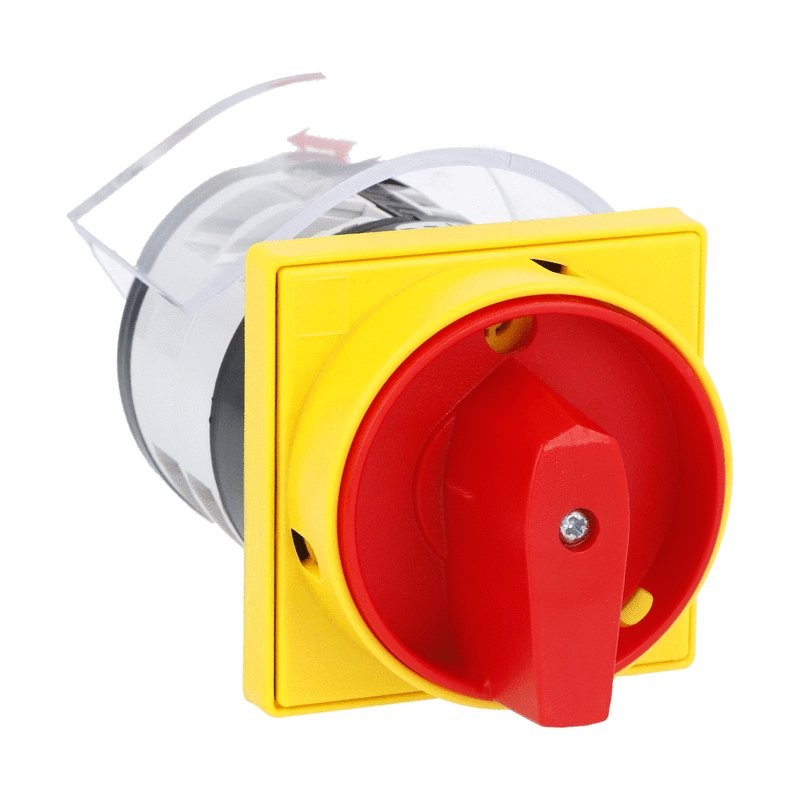

7GN3292U25 GN3292U25 LOVATO ROTARY CAM SWITCHE, GN SERIES, U25-U65 VERSION FRONT MOUNT WITH PADLOCK SYSTEM, ..
7GN3292U25
GN3292U25
LOVATO ELECTRIC
ROTARY CAM SWITCHE, GN SERIES, U25-U65 VERSION FRONT MOUNT WITH PADLOCK SYSTEM, RED/YELLOW. ON/OFF SWITCH, FOUR-POLE – 2 WAFERS – SCHEME 92, 32A
Interrupteur 4 pôles GN92 32 A Modèle U25 65x65
INTERRUPTEUR ROTATIF À CAMES SÉRIE 7GN, INTERRUPTEUR MARCHE-ARRÊT 4 PÔLES 32A, POUR MONTAGE AVANT AVEC POIGNÉE ROUGE/JAUNE CADENASSABLE EN 0 ET COUVERCLES DE PROTECTION, PLAQUE AVANT 65X65MM
Commutateurs à cames - LOVATO ELECTRIC
* Produit neuf dans son emballage d'origine avec toutes les garanties et les certifications émises par LOVATO ELECTRIC
En savoir plus
▲| Code de commande : | 7GN3292U25 |
| Poids [g] | 288 |
| Quantité paquet produit | |
| Quantité paquets multiples | |
| Dimensions [mm] de l'emballage du produit | 068X068X105 |
| Volume [cm³] | 485.52 |
| Code à barres [EAN13] | 3850144003446 |
| Code HS | 85365080 |
UL
cCSAus
EAC
IEC/EN/BS 60947-1
IEC/EN/BS 60947-3
IEC/EN/BS 60947-5-1
UL60947-4-1
CSA C22.2 n° 14
| Product designation | Rotary cam switches | |||
| Product type designation | 7GN32 | |||
| General characteristics | ||||
| Switching diagram | 92 - ON/OFF switch 4 poles | |||
| N° of elements | 2 | |||
| Mounting form | Front mounting with red/yellow handle padlockable in 0 and protection covers (U25) | |||
| Contact characteristics | ||||
| Rated insulation voltage Ui | ||||
| IEC/EN | V | 690 | ||
| UL/CSA | V | 600 | ||
| Rated impulse withstand voltage Uimp | kV | 6 | ||
| Conventional free air thermal current Ith | ||||
| IEC/EN | A | 32 | ||
| UL/CSA | A | 40 | ||
| Rated operational voltage | V | 480 | ||
| Rated operational impulse voltage | kV | 4 | ||
| Maximum fuse size for short-circuit protection In (gG) | ||||
| 10kA | A | 32 | ||
| 15kA | A | 32 | ||
| 25kA | A | 32 | ||
| 50kA | A | 32 | ||
| Rated short time current Icw | ||||
| 1s | A | 800 | ||
| Conductivity | 10/5 mA/V | |||
| Operational current Ie IEC/EN | ||||
| AC1/AC21A | ||||
| A | 32 | |||
| AC15 | ||||
| 110V | A | 25 | ||
| 220/230V | A | 20 | ||
| 380/400V | A | 10 | ||
| 660/690V | A | 2 | ||
| Rated operational power in AC | ||||
| Three-phase AC3 | ||||
| 220/230V | kW | 7.5 | ||
| 380/440V | kW | 11 | ||
| 500/690V | kW | 11 | ||
| Single-phase AC3 | ||||
| 110V | kW | 2.2 | ||
| 220/230V | kW | 4 | ||
| 380/440V | kW | 6.5 | ||
| Three-phase AC23A | ||||
| 220/230V | kW | 8 | ||
| 380/440V | kW | 15 | ||
| 500/690V | kW | 18.5 | ||
| Single-phase AC23A | ||||
| 110V | kW | 2.2 | ||
| 220/230V | kW | 4 | ||
| 380/440V | kW | 7.5 | ||
| Rated operational current in DC | ||||
| DC21A | ||||
| 48V | A | 32 | ||
| 60V | A | 32 | ||
| 110V | A | 6 | ||
| 220V | A | 0.9 | ||
| DC23A (poles in series) | ||||
| 24V | A | 32 (1) | ||
| 48V | A | 32 (2) | ||
| 60V | A | 32 (3) | ||
| 110V | A | 15 (3) | ||
| 220V | A | 12 (4) | ||
| DC13 | ||||
| 24V | A | 32 | ||
| 48V | A | 25 | ||
| 60V | A | 16 | ||
| 110V | A | 3 | ||
| 220V | A | 0.5 | ||
| Power dissipation | W | 1.5 | ||
| Mechanical features | ||||
| Terminals screw | M4 | |||
| Tightening torque for terminals max | Nm | 1.2 | ||
| Conductor size | ||||
| AWG - Rigid cable | ||||
| min | AWG | 16 | ||
| Max | AWG | 8 | ||
| AWG - Flexible cable | ||||
| min | AWG | 16 | ||
| Max | AWG | 10 | ||
| Conductor size (IEC) - Flexible cable | ||||
| min | mm² | 1.5 | ||
| Max | mm² | 4 | ||
| Conductor size (IEC) - Rigid cable | ||||
| min | mm² | 1.5 | ||
| Max | mm² | 6 | ||
| Mechanical life | cycles | 5x10⁶ | ||
| UL technical data | ||||
| Motor power for direct-on-line control | ||||
| for three-phase motor | ||||
| 120V | HP | 5 | ||
| 240V | HP | 10 | ||
| 480V | HP | 15 | ||
| 600V | HP | 15 | ||
| for single-phase motor | ||||
| 120V | HP | 2 | ||
| 240V | HP | 5 | ||
| Ambient conditions | ||||
| Temperature | ||||
| Operating temperature | ||||
| min | °C | -25 | ||
| max | °C | +55 | ||
| Storage temperature | ||||
| min | °C | -40 | ||
| max | °C | +70 | ||
| Resistance & Protection | ||||
| Frontal IP degree | IP40 | |||
| Terminals IP degree | IP00 | |||
| ETIM classification | ||||
| ETIM 8.0 | EC001105 - Off-load switch | |||
