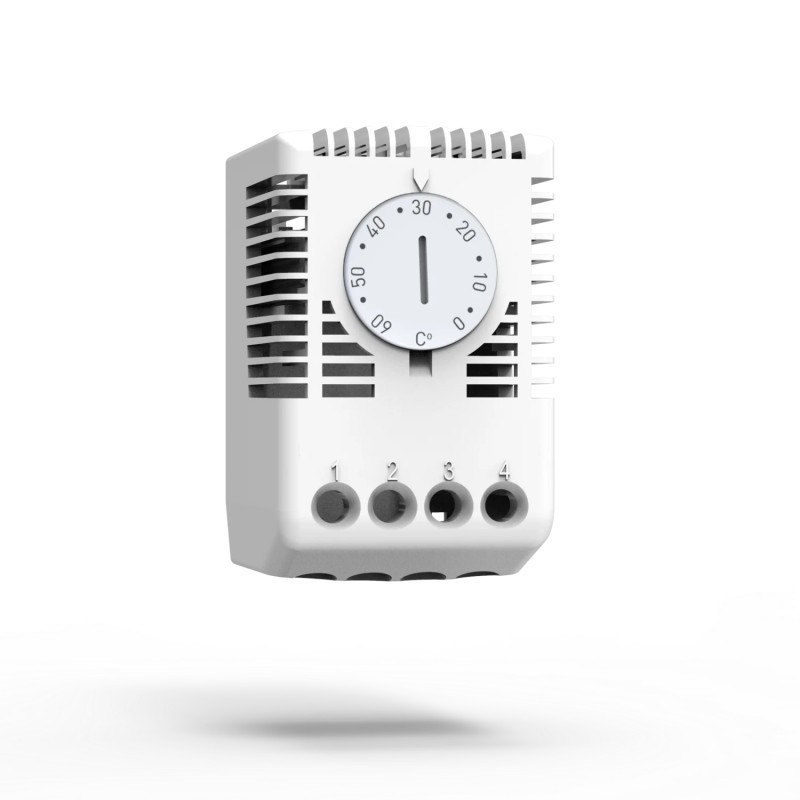

ETR200 nVent HOFFMAN Thermostat NO+NF ETR200

Description:

Thermostat à contact inverseur pour gérer la température à l'intérieur des panneaux. Bilame thermostatique. Clip de fixation pour rail DIN 35 mm (EN 60715).

Matériau:

Plastique conforme UL94 V-0.

Plage de réglage:

0 °C à +60 °C.

Pouvoir de coupure:

Contact normalement fermé: 100-250 V c.a., 10(2) A. Contact normalement ouvert: 100-250 V c.a., 5(2) A, (en 230 V c.a. uniquement). 24 V c.c., 30 W. Les valeurs entre parenthèses concernent la charge inductive.

Humidité opérationnel:

-40°C à +80 °C.

Durée de vie:

> 100 000 cycles.

Raccordement:

Bornier à vis pour câble (0.5 à 2.5 mm²).

Protection:

IP 20.

Homologations:

CE, EAC, cULus_UL Listed.

Finition:

RAL 7035.

Unité de livraison:

1 pièce.

Feature:

Adjustable temperature thermostat, with a normally open (NO) and normally closed (NC) contact.

Advantage:

The thermostat allows energy to flow to a device when the set temperature has been exceeded through the normally open contact (normally a cooling device), or when the internal temperature has dropped below the same set temperature through the normally closed contact (normally a heater). Customers are able to adjust the thermostat's temperature settings when equipment with special requirements are installed, such as batteries. The thermostat can only control one device at a time.

Benefit:

The installed devices, such as filter fans or fan heaters, automatically turn on or off when they are required, which reduces the operational cost of the control panel. As the two different types of contacts are housed within the same thermostat either cooling or heating can be controlled, increasing the products versatility which reduces the amount of stock customers need to keep. Customers can adjust the required temperature, which means it can be installed in any enclosure.

Comment:

The normally open contact, is used to control cooling or high temperature alarms, and the normally closed contact, is used to control heating. The thermostat can only be set to one temperature, this temperature will therefore control the contacts, which means that only one device can be connected, however it can be used with either cooling or heating devices.
