SPD1806 nVent HOFFMAN Plaque de séparation, 1800x600 SPD1806

Description:

Séparation entre deux cellules juxtaposées MCS/MCD.

Matériau:

Acier zingué 1,5 mm.

Instructions de montage:

IP 43 L'étanchéité de TYPE 1 peut être obtenue en utilisant le joint SPDG. Des supports CCJ sont nécessaires pour monter le SPD dans les armoires. Pour bayonner les armoires ensemble, utilisez les supports CCM et CCI. Pour le blindage EMI, le joint SPDEG doit être utilisé.

Unité de livraison:

1 pièce.

Feature:

Zinc plated steel separation plate for mild steel combinable floor standing enclosures.

Advantage:

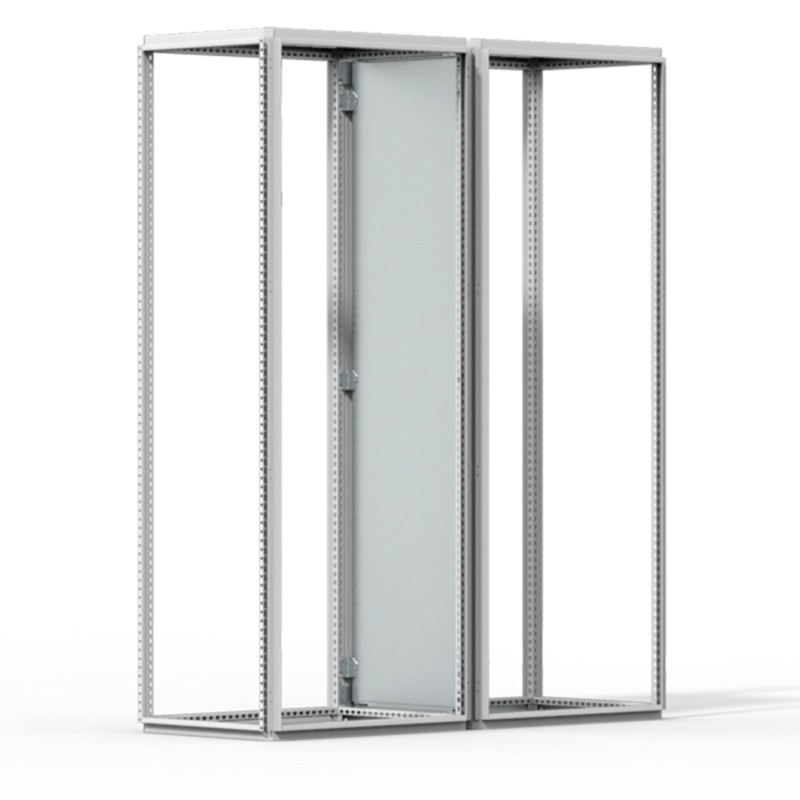

The plate can be mounted easily between two bayed enclosures providing segregation. Protection degree IP 43 tested, when mounted with the separation plate gasket, SPDG.

Benefit:

The enclosure assembly can be easily segregated creating individual spaces for components to be mounted. These areas are commonly used to group component types, for example power in one section and control in another. These spaces can also be used when some components are more sensitive to temperature than others, allowing better control of the enclosure's thermal management.

Comment:

Separation brackets, CCJ, are required in order to mount the separation plate. If the separation plate is mounted within an enclosure assembly, the internal corner baying kit, CCM, and external baying brackets, CCI, should be used. Mounting the separation gasket, SPDG, will increase the protection degree on either side of the plate to IP 43. The separation plate can not be mounted within stainless steel enclosures.
