DPP01006R5
ELDON
1
Disponible Expédition hui

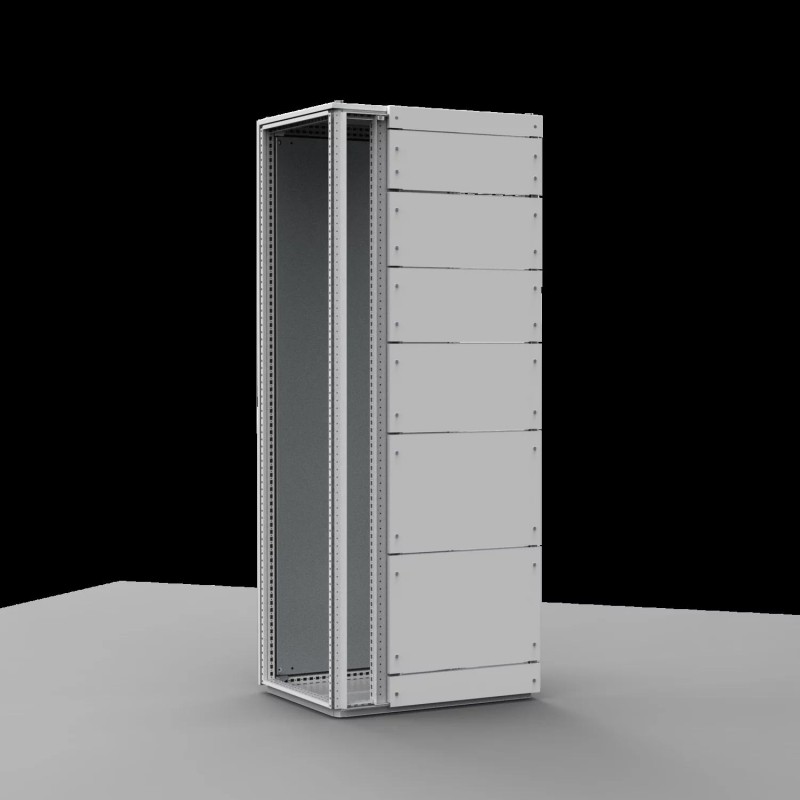

Panneau partiel, 100x600 DPP01006R5
Volet partielle, 100x600, tôle d'acier
Partial panels allow for many different, easily accessible, configurations of separate compartments within the enclosure. The panels are secured with screws, which ensures that it can only be removed by service personnel, to improve the operators safety.
Armoires, coffrets, boites, baies, pupitres et accessoires > Plaque avant (armoire électrique)
Énergie et distribution
* Produit neuf dans son emballage d'origine avec toutes les garanties et les certifications émises par ELDON
Merci de vous intéresser à nos produits, nous espérons que le délai indiqué soit de votre convenance.
Pendant le traitement de la commande, vous pouvez sélectionner le type d'envoi qui vous convient. Aérien Express 24Hrs, Terrestres Standard 48/72Hres, etc.
Description: | To divide the enclosure front into sections when used in conjunction with the horizontal divider CDH/CDHK when no door is required. |
Matériau: | 1.75 mm steel plate. |
Finition: | RAL 7035 structured powder coating. |
Protection: | IP 44. |
Unité de livraison: | 1 panel with mounting accessories. |
Instructions de montage: | Add CDH for MC frames and use CDHK for MK frames. Use DPC/DPCV for top and bottom panels. |
Feature: | The partial panel forms part of the partial door system, which replaces the standard plain door fitted to floor standing enclosures. |
Advantage: | Partial panels can be configured to segregate the enclosure's openings using screws, creating compartments, to meet customer requirements. |
Benefit: | Access to partial panel compartments are limited to avoiding unauthorised access. Partial panels may also be used for spare compartments. |
Comment: | Top and bottom panels DPC/DPCV are required to be mounted which reduces the useable height by 200mm. |
Titre: | Taille: | Type: |
---|---|---|
DPP01006R5 DPP01006R5 FR_DPP01006R5.pdf | 119 Kbytes | |
Télécharger le catalogue général |
